- Product description
-

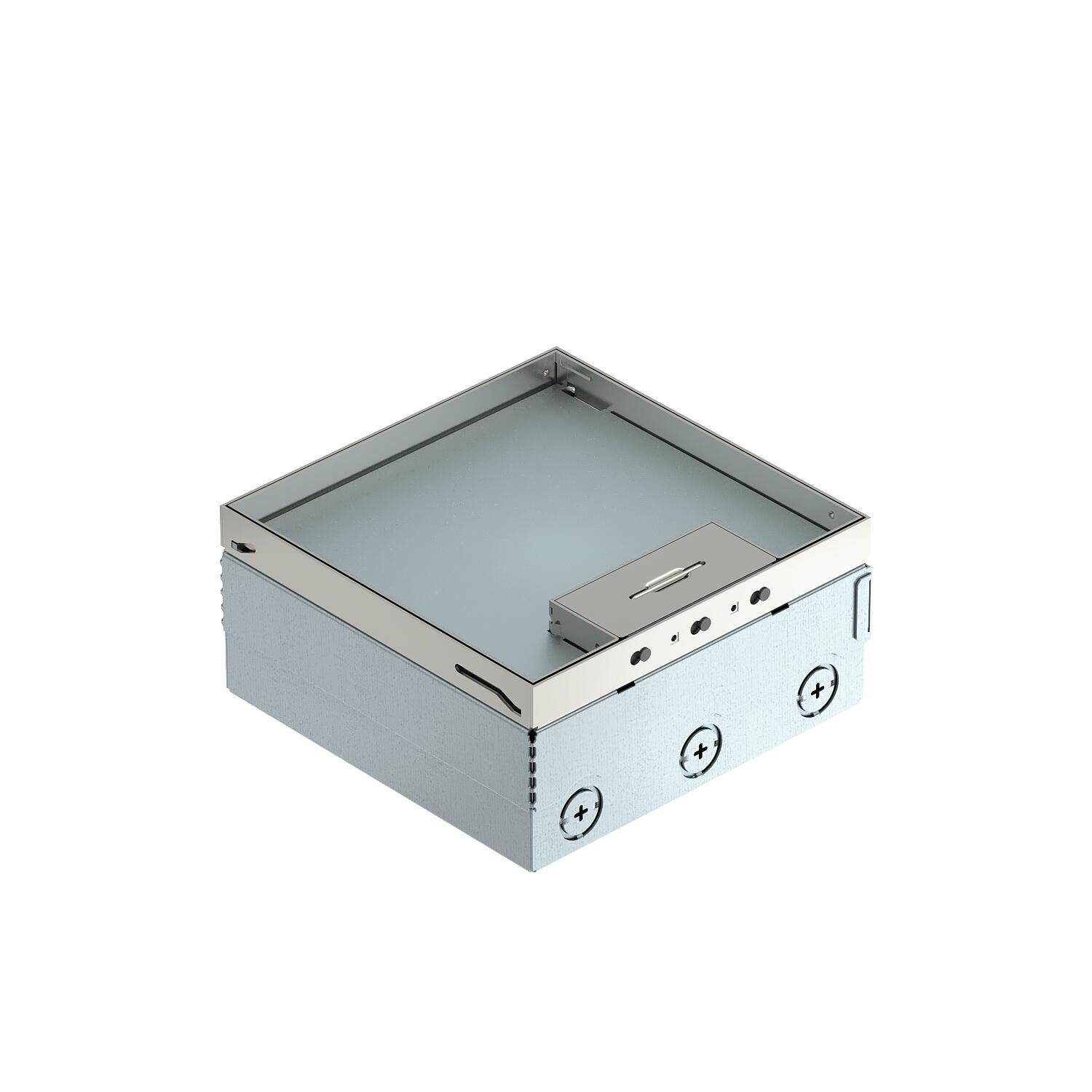

Product descriptionSquare floor box for use in dry-cleaned cavity and screed floors for indoor use. Installation housing with pre-marked insertion openings for pipes (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. 15 mm floor covering recess in the hinged cover. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.

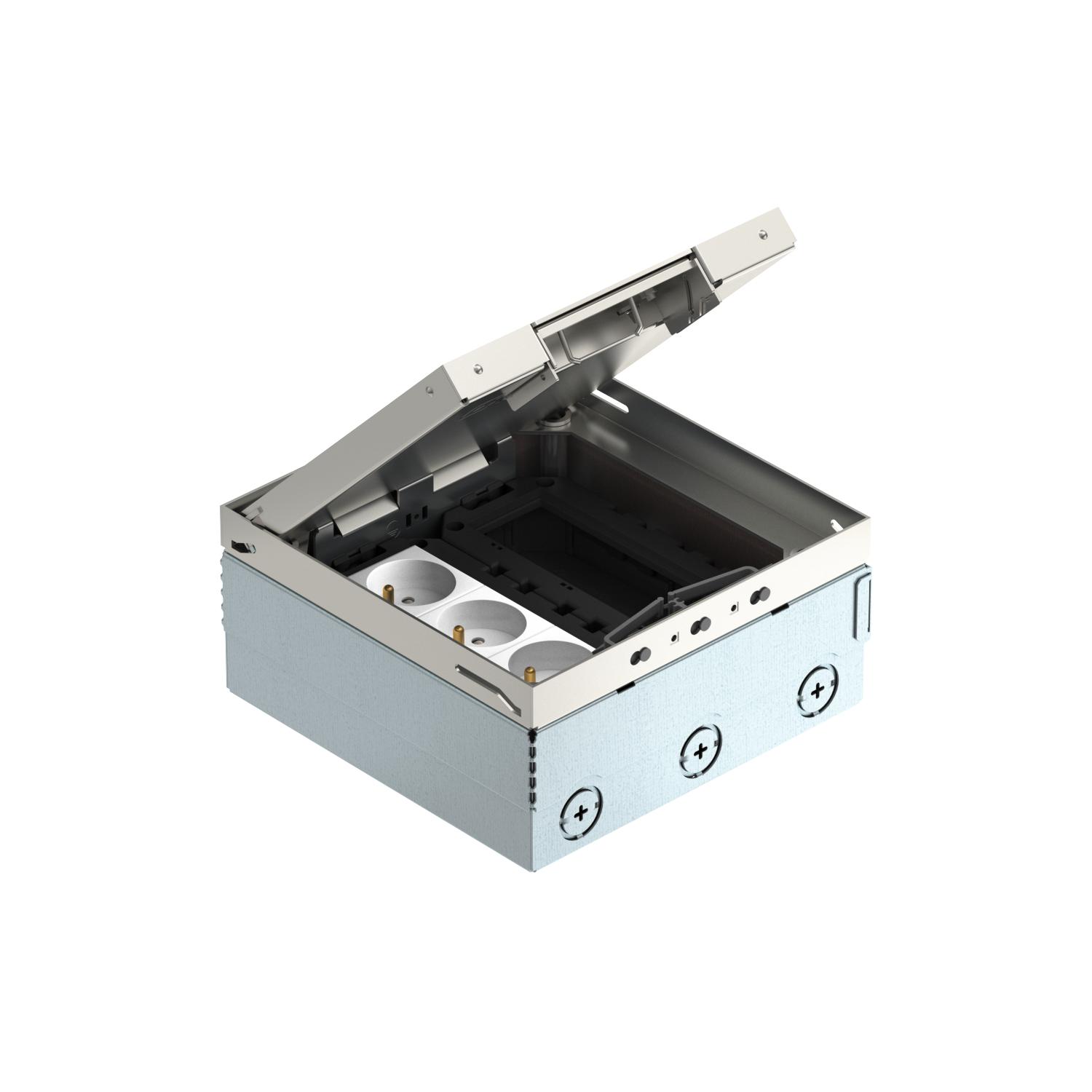

The scope of delivery contains two universal supports UT3 45 3 and one triple NF socket. Up to three additional M45 devices can be installed.
- Technical data
-
Technical data

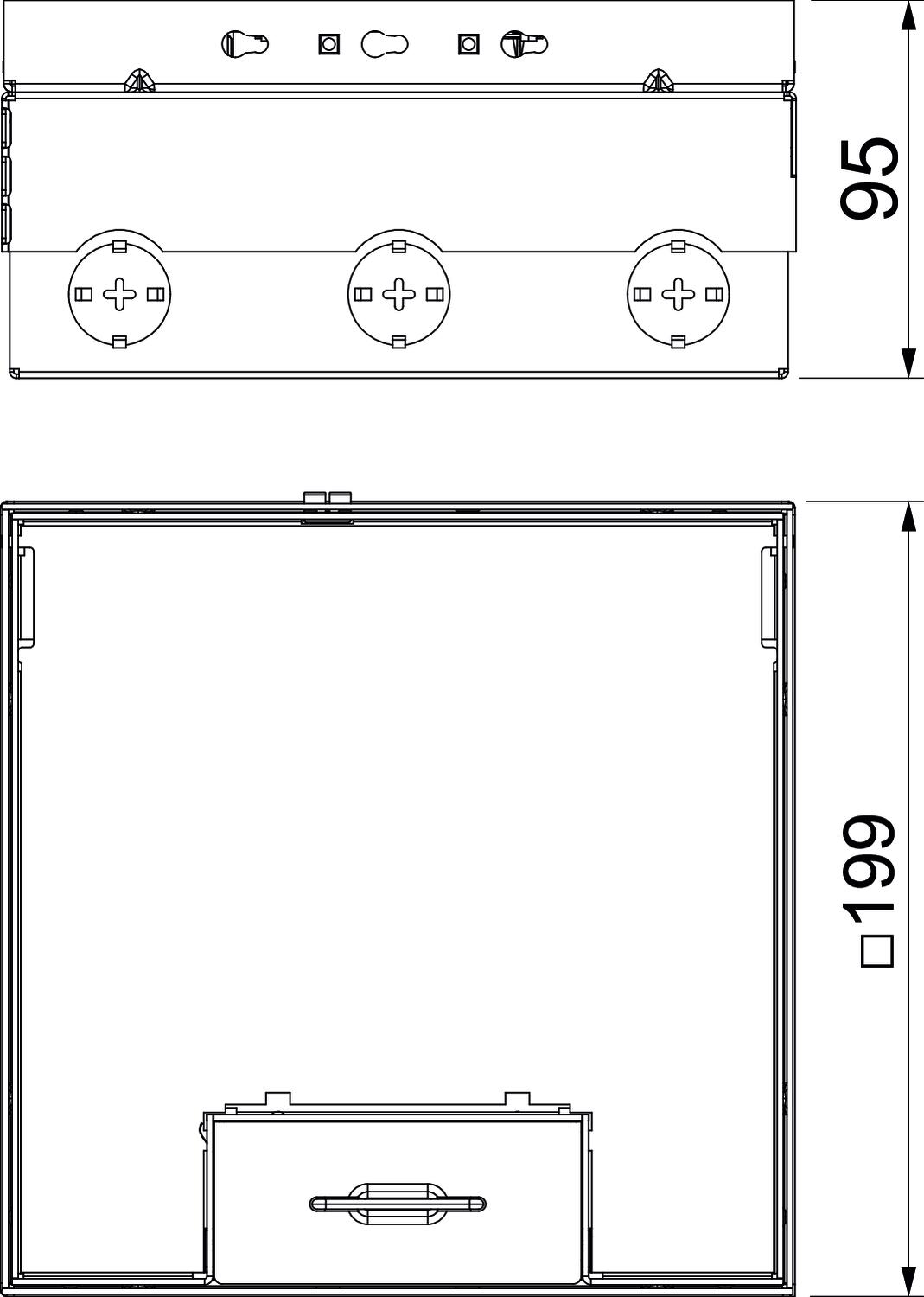

Cable outlet version Swivellable cord outlet Cover version Floor covering recess CO₂ Footprint (GWP) Cradle-to-Gate 18,013 kg CO₂e / 1 Piece Dimension h 95 mm Equipment 2 UT3, triple LF socket Floor covering protection frame no Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Installation depth 95 mm Length 202 mm Length of external dimensions 199 mm Length of installation dimensions 202 mm Material Stainless steel Number of mounting boxes 2 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Suitable for cavity floor installation yes Suitable for raised floor installation no Suitable for underfloor ducts no Suitable for wet care no Version for Square Wide external dimensions 199 mm Wide installation dimensions 202 mm Width 202 mm With floor covering recess yes - All types
- Downloads
-
Data sheet UDHOME4 2V UT N / 7427224 , 0.20MB , pdfEU declaration of conformity UDHOME4 2V UT N / 7427224 , 0.13MB , pdfREACH Declaration of conformity UDHOME4 2V UT N / 7427224 , 0.12MB , pdfRoHS Declaration of conformity UDHOME4 2V UT N / 7427224 , 0.12MB , pdfMounting instructions Mounting instructions, floor box UDHOME 4/9 , 0.08MB , pdf
