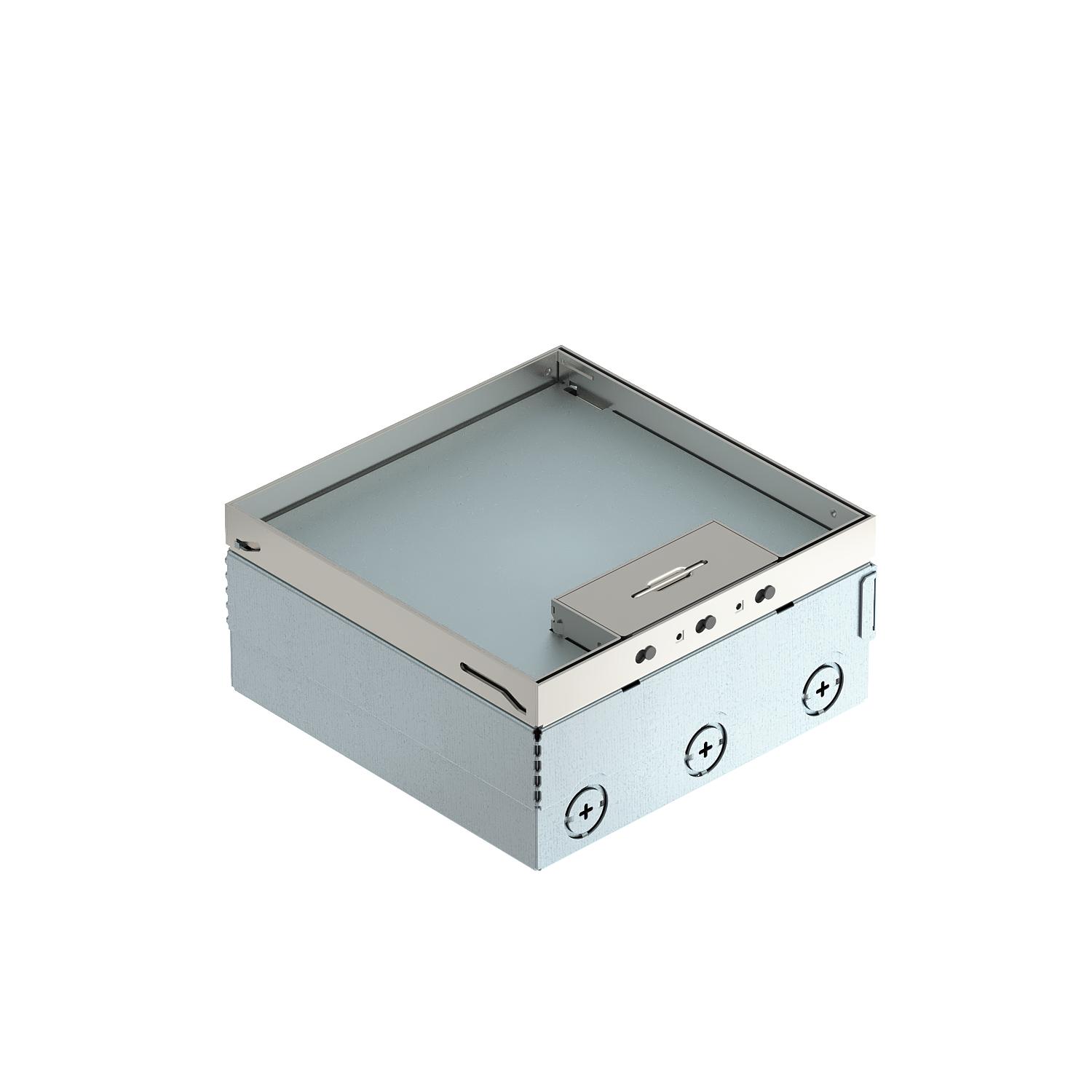

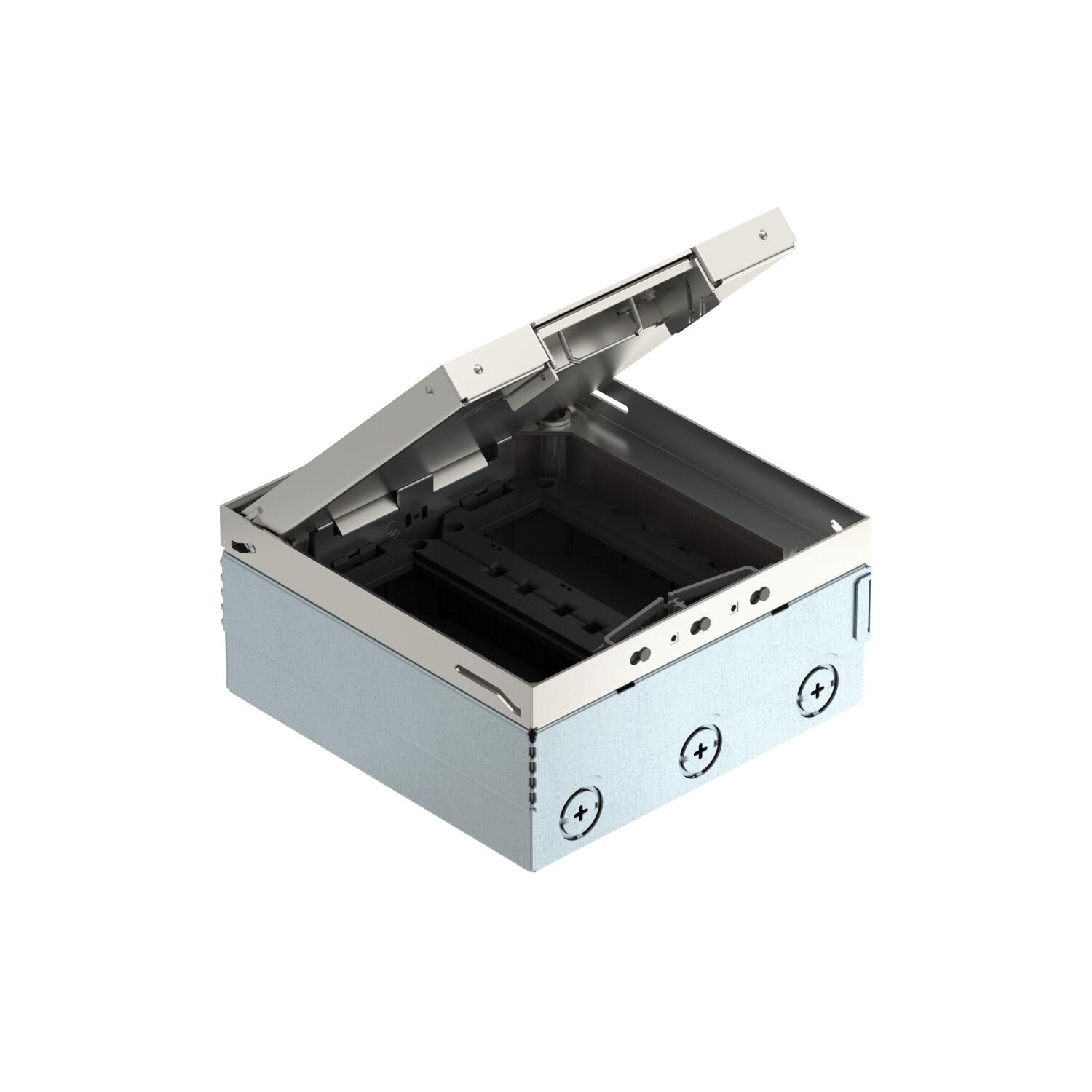

UDHOME4 floor box, with universal support UT3, freely equippable, stainless steel

Item no. 7427248 | EAN 4012195916628

7427248 / UDHOME4 2V UT U
15 mm
Product description
Product description
Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). With two UT3 45 3 universal supports. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
Surfaces visible in the floor covering made of stainless steel.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Cover version Floor covering recess
CO₂ Footprint (GWP) Cradle-to-Gate 17,526 kg CO₂e / 1 Piece

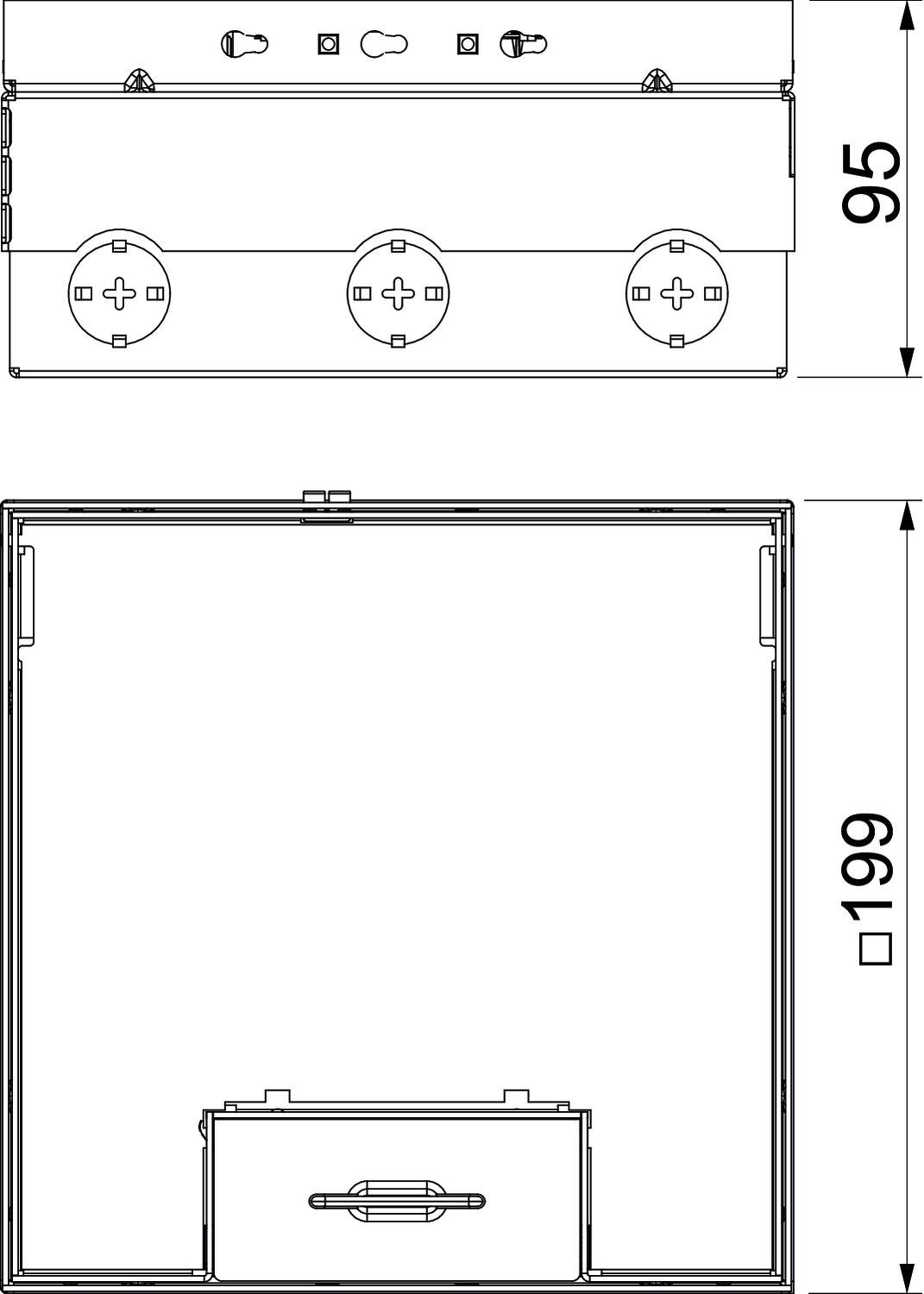

Dimension h 95 mm
Equipment 3 UT3
Floor covering protection frame no
Floor covering thickness 15 mm
Floor height, max. 125 mm
Floor height, min. 95 mm
Height-adjustment range, max. 125 mm
Height-adjustment range, min. 95 mm
Length 202 mm
Length of external dimensions 199 mm
Length of installation dimensions 202 mm
Material Stainless steel
Number of mounting boxes 2
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Screed height, max. 110 mm
Screed height, min. 95 mm
Suitable for cavity floor installation yes
Suitable for raised floor installation no
Suitable for underfloor ducts no
Suitable for wet care no
Version for Square
Wide external dimensions 199 mm
Wide installation dimensions 202 mm
Width 202 mm
With floor covering recess yes
All types

All types

Types Floor covering thickness Item no. Quantity SSU
UDHOME4 2V UT U 15 mm 7427248
1 piece
Downloads

Download

Download

EU declaration of conformity UDHOME4 2V UT U / 7427248 , 0.13MB , pdf
