- Product description
-

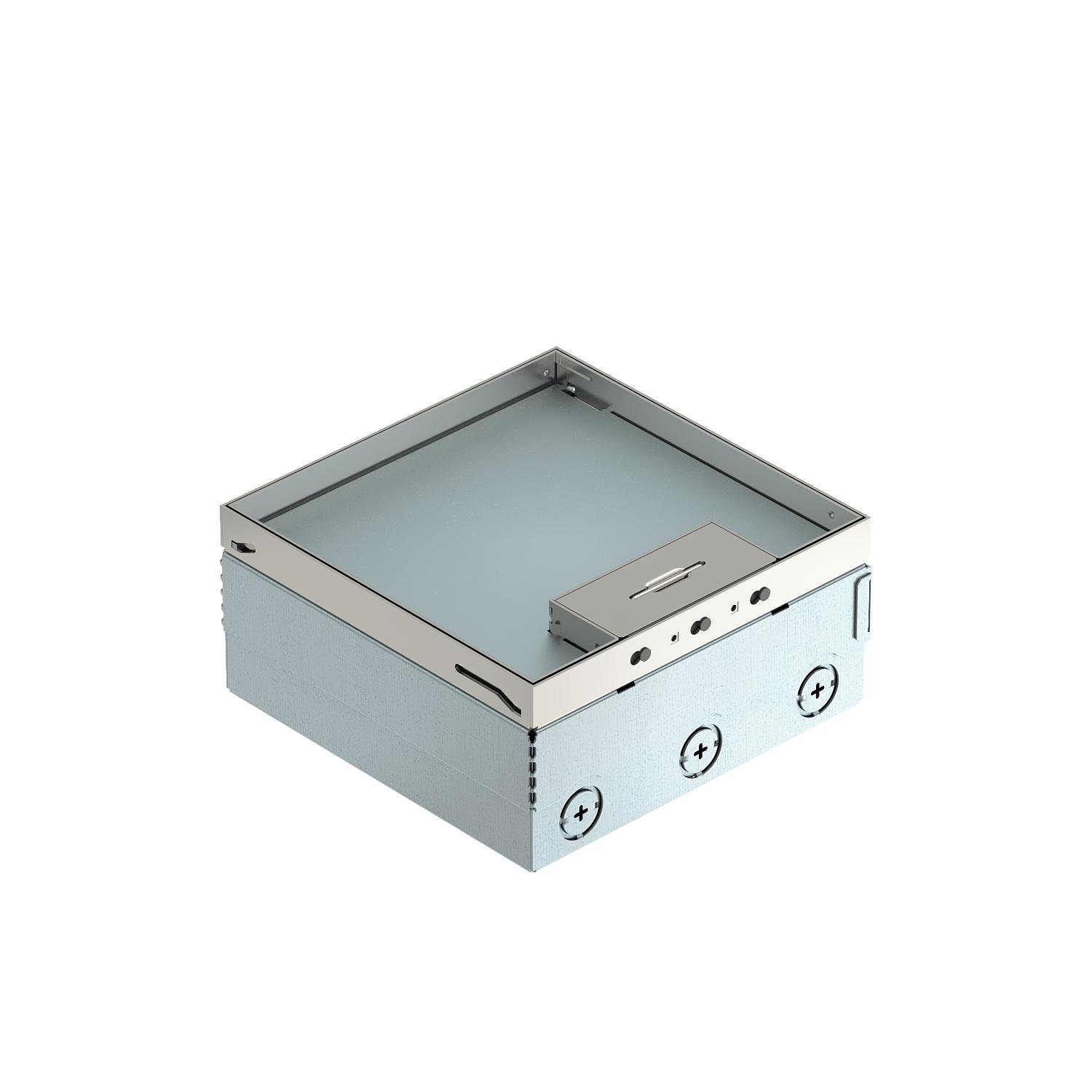

Product descriptionSquare floor box for use in dry-cleaned cavity and screed floors for indoor use. Installation housing with pre-marked insertion openings for pipelines (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. 15 mm floor covering recess in the hinged cover. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
The scope of delivery contains two UT3 universal supports, a triple NF socket with cover plate and two individual cover plates for accessories with support ring.
Surfaces visible in the floor covering made of: Stainless steel, material 1.4301.
- Technical data
-
Technical data

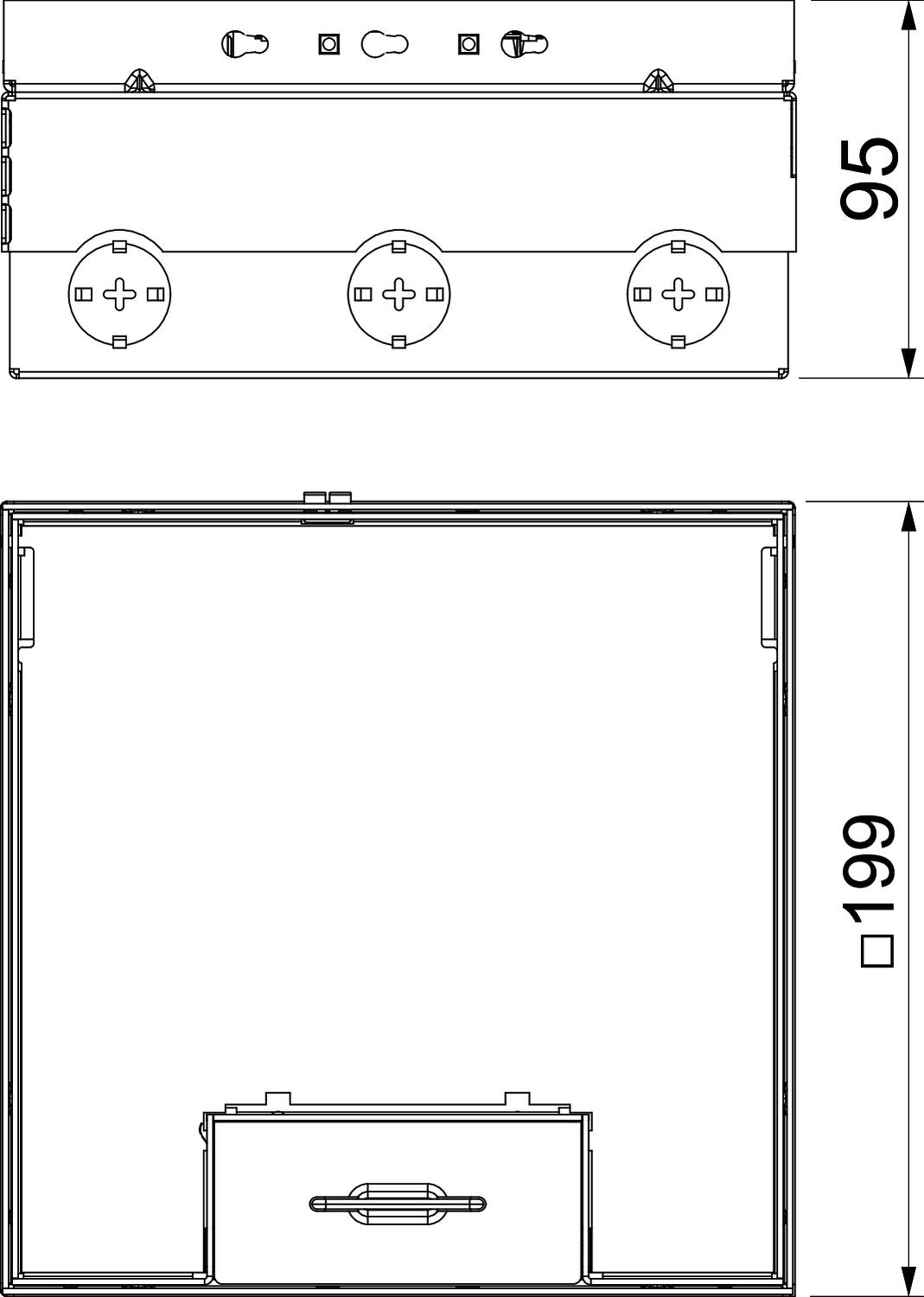

Cable outlet version Swivellable cord outlet Cover version Floor covering recess Dimension h 95 mm Equipment 2 UT3, triple LF socket Floor covering protection frame no Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Length 202 mm Length of external dimensions 199 mm Length of installation dimensions 202 mm Material Stainless steel Number of mounting boxes 2 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Suitable for cavity floor installation yes Suitable for raised floor installation no Suitable for underfloor ducts no Suitable for wet care no Version for Square Wide external dimensions 199 mm Wide installation dimensions 202 mm Width 202 mm With floor covering recess yes - All types
- Downloads
-
Data sheet UDHOME4 2V N / 7427208 , 0.22MB , pdfEU declaration of conformity UDHOME4 2V N / 7427208 , 0.13MB , pdfREACH Declaration of conformity UDHOME4 2V N / 7427208 , 0.12MB , pdfRoHS Declaration of conformity UDHOME4 2V N / 7427208 , 0.12MB , pdfMounting instructions Mounting instructions, floor box UDHOME 4/9 , 0.08MB , pdf
