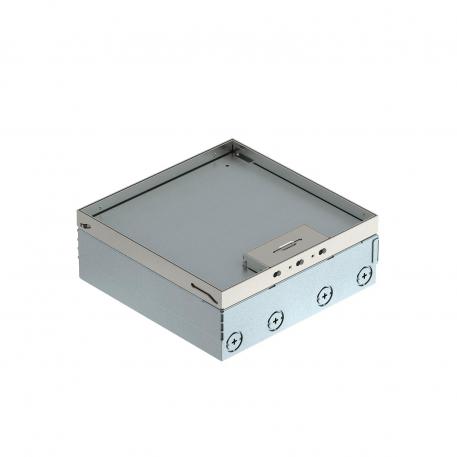

UDHOME9 floor box, freely equippable, stainless steel
Item no. 7427324 | EAN 4012195916789
- Product description
-

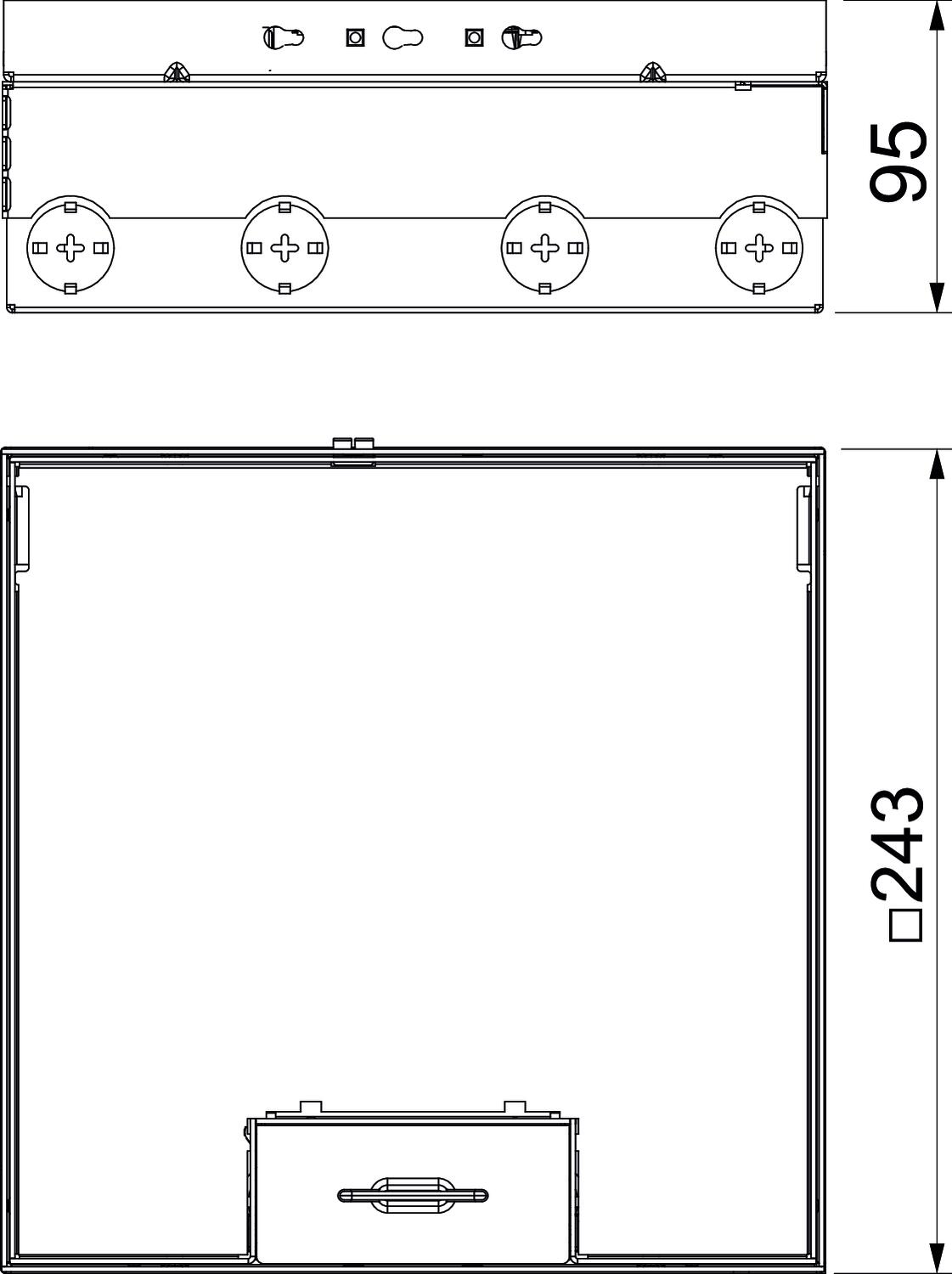

Product descriptionSquare floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to three UT4 universal supports for up to 12 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.
Surfaces visible in the floor covering made of stainless steel.
-
- Technical data
-
Technical data
Cable outlet version Swivellable cord outlet Cover version Floor covering recess CO₂ Footprint (GWP) Cradle-to-Gate 22,894 kg CO₂e / 1 Piece Dimension h 95 mm Equipment Empty housing Floor covering thickness 15 mm Floor height, max. 125 mm Floor height, min. 95 mm Height-adjustment range, max. 125 mm Height-adjustment range, min. 95 mm Length 246 mm Length of external dimensions 243 mm Length of installation dimensions 246 mm Material Stainless steel Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK10 Screed height, max. 110 mm Screed height, min. 95 mm Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Suitable for wet care no Wide external dimensions 243 mm Wide installation dimensions 246 mm Width 246 mm With floor covering recess yes - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Height extension for UDHOME9 floor box
HE60 UDHOME9 7427444 6 piece - Downloads
-
