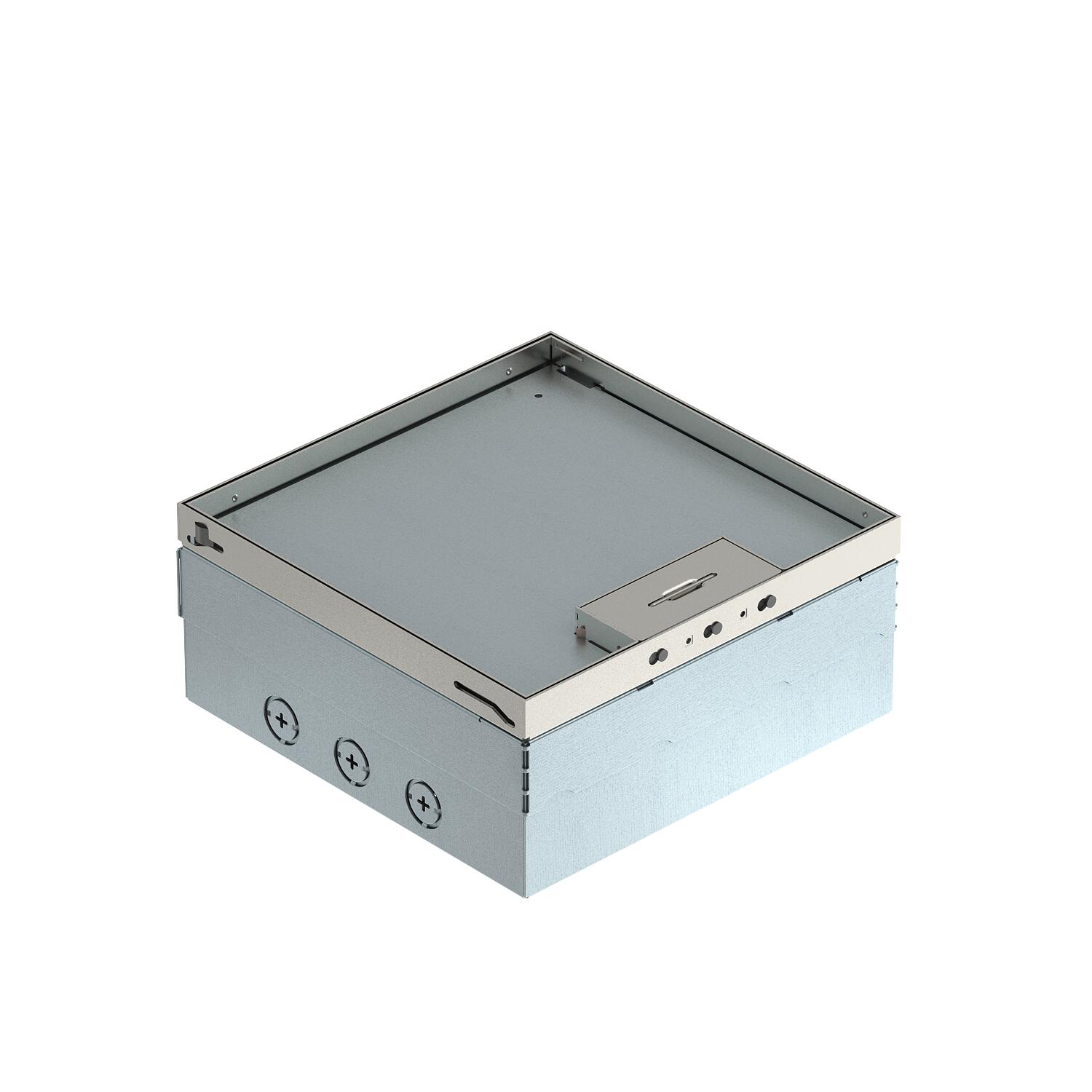

UDHOME9 floor box, with I14 mounting supports, stainless steel

Item no. 7427076 | EAN 4012195922322

7427076 / UDHOME9 2V I14
15 mm
Product description
Product description

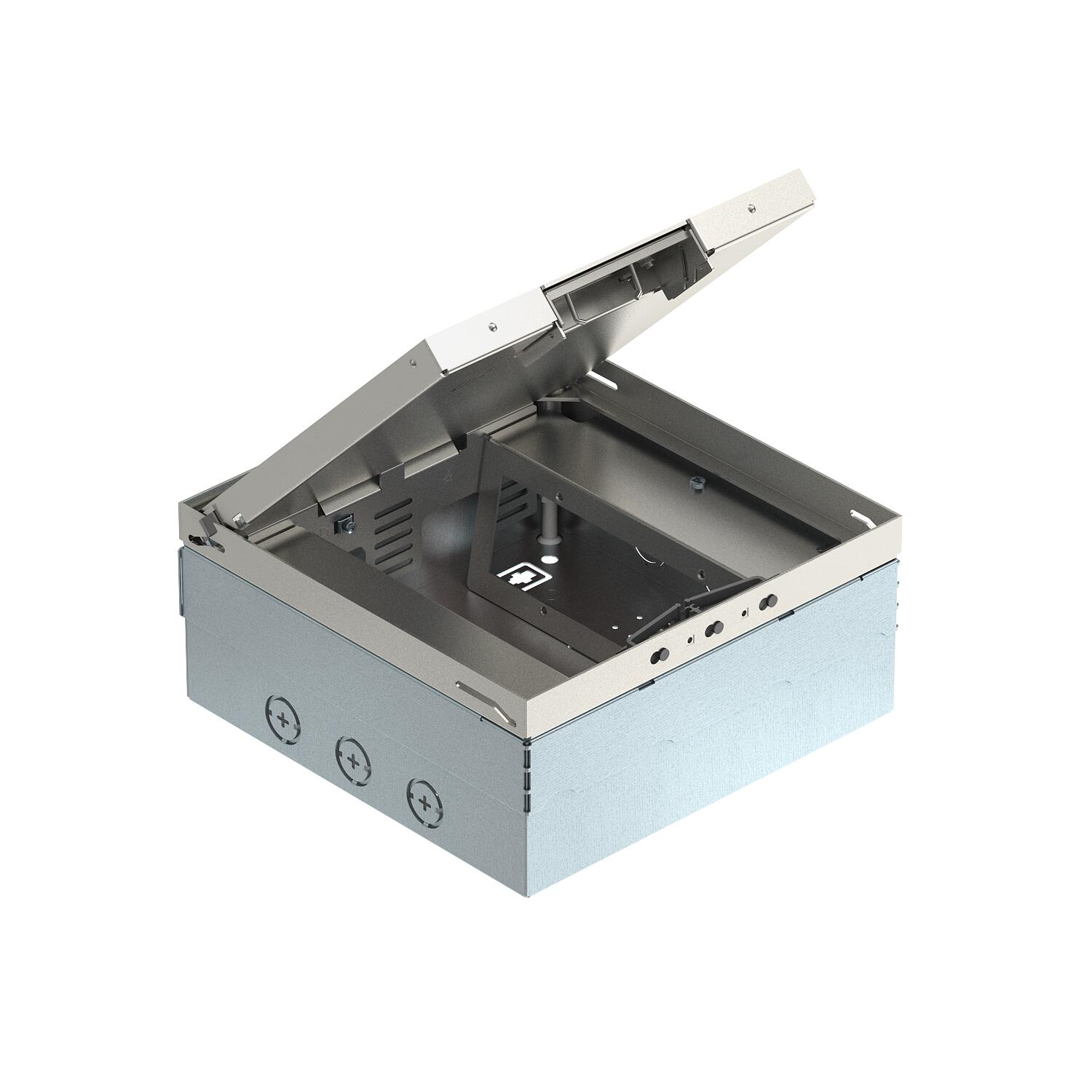

Square floor box for 14 installation devices of Italian design, for use in dry-care cavity and screed floors for indoor use. Installation housing with pre-marked insertion openings for pipelines (M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. 15 mm floor covering recess in the hinged cover. The minimum installation depth is 110 mm, the height-adjustment range + 30 mm.

The scope of delivery contains a mounting support.

Surfaces made of stainless steel and visible in the floor covering.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet

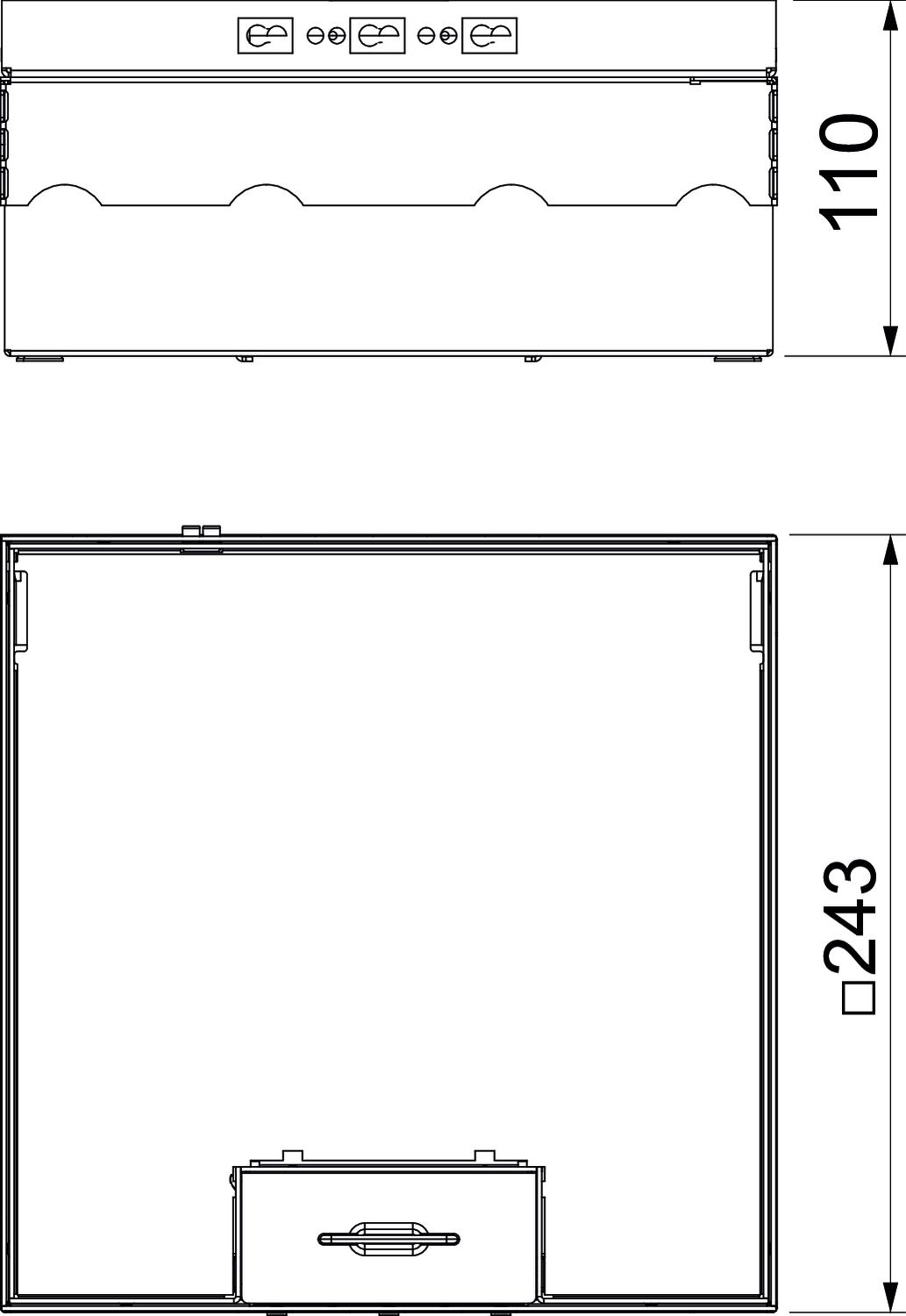

Dimension 242x242x110
Dimension h 110 mm
Floor covering thickness 15 mm
Floor height, max. 140 mm
Floor height, min. 110 mm
Height-adjustment range, max. 140 mm
Height-adjustment range, min. 110 mm
Installation depth 110 mm
Length 246 mm
Length of external dimensions 243 mm
Length of installation dimensions 246 mm
Material Stainless steel
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Screed height, max. 130 mm
Screed height, min. 110 mm
Wide external dimensions 243 mm
Wide installation dimensions 246 mm
Width 246 mm
All types

All types

Types Floor covering thickness Item no. Quantity SSU
UDHOME9 2V I14 15 mm 7427076
1 piece
