Underfloor box for GES4

Item no. 7427430 | EAN 4012195916925

Product description

Product description

Square installation housing for one GES4-2 service unit for outlet in screed floors for indoor use. With pre-marked insertion openings for pipelines (M25) on all four sides.

In the as-delivered state, the installation housing is closed with a mounting protection lid.

The minimum installation depth is 70 mm, the height-adjustment range +30 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

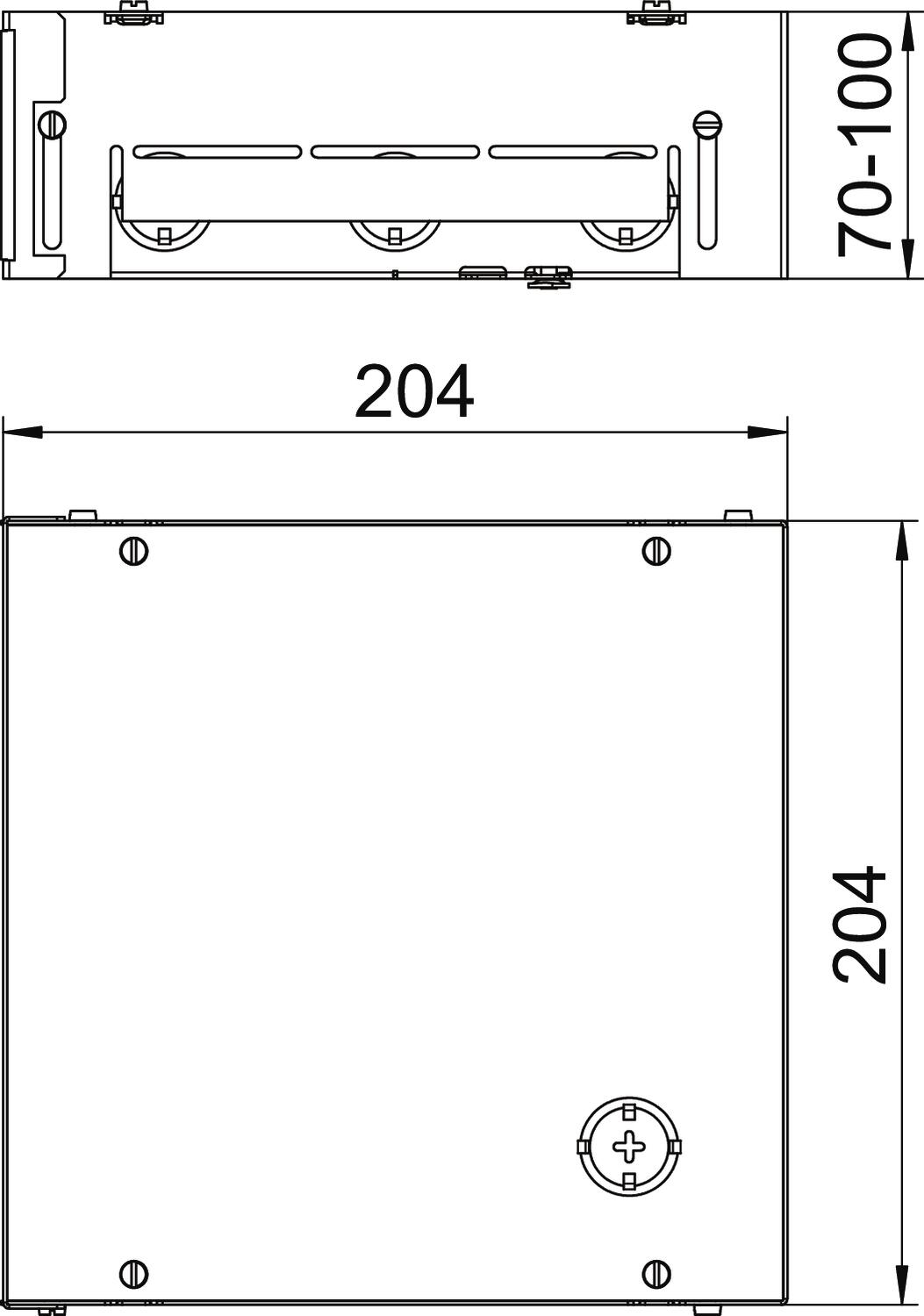

Dimension 210x205x75
Length 205 mm
Material Steel
Surface Strip galvanized
Width 205 mm
All types

All types

Types Floor covering thickness Item no. Quantity SSU
UDHOME BOX 4 7427430
1 piece
Downloads

Download

Declaration of conformity UDHOME BOX 4 / 7427430 , 0.15MB , pdf
Download

UDHOME BOX 4 / 7427430
