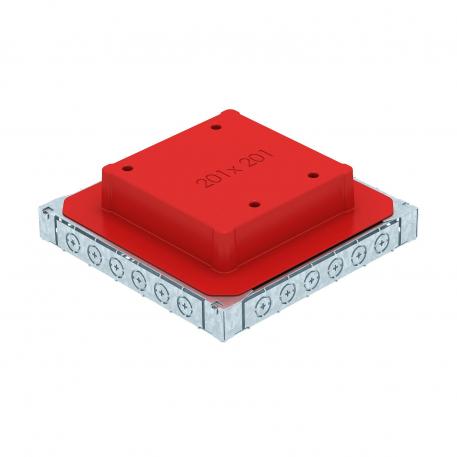

Underfloor box UDS4 for installation pipe and metal duct
Item no. 7400349 | EAN 4012195729778
- Product description
-

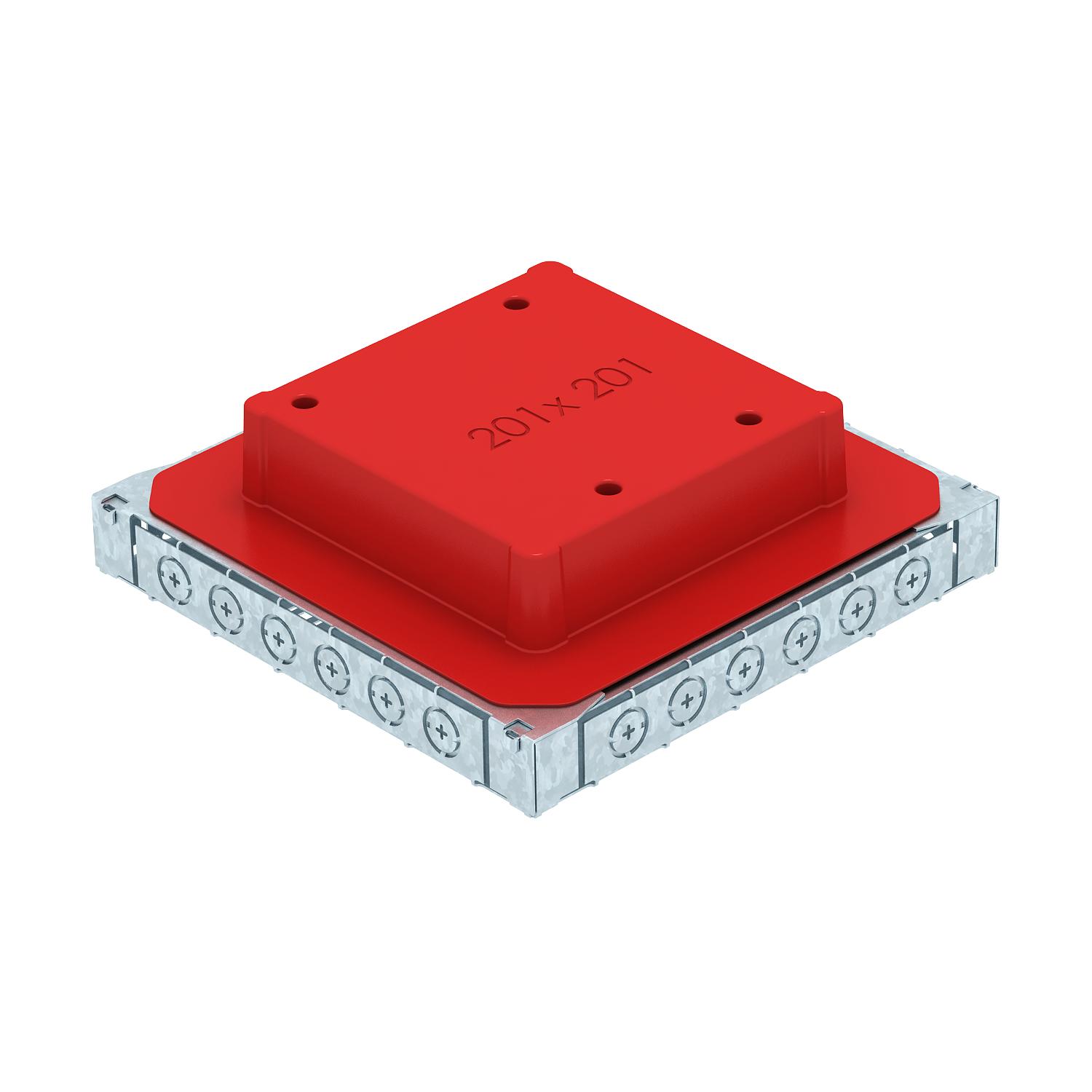

Product descriptionUnderfloor outlet box with fixed, unchangeable 201 x 201 mm installation opening for an installation unit of nominal size 4. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
-
- Technical data
-
Technical data

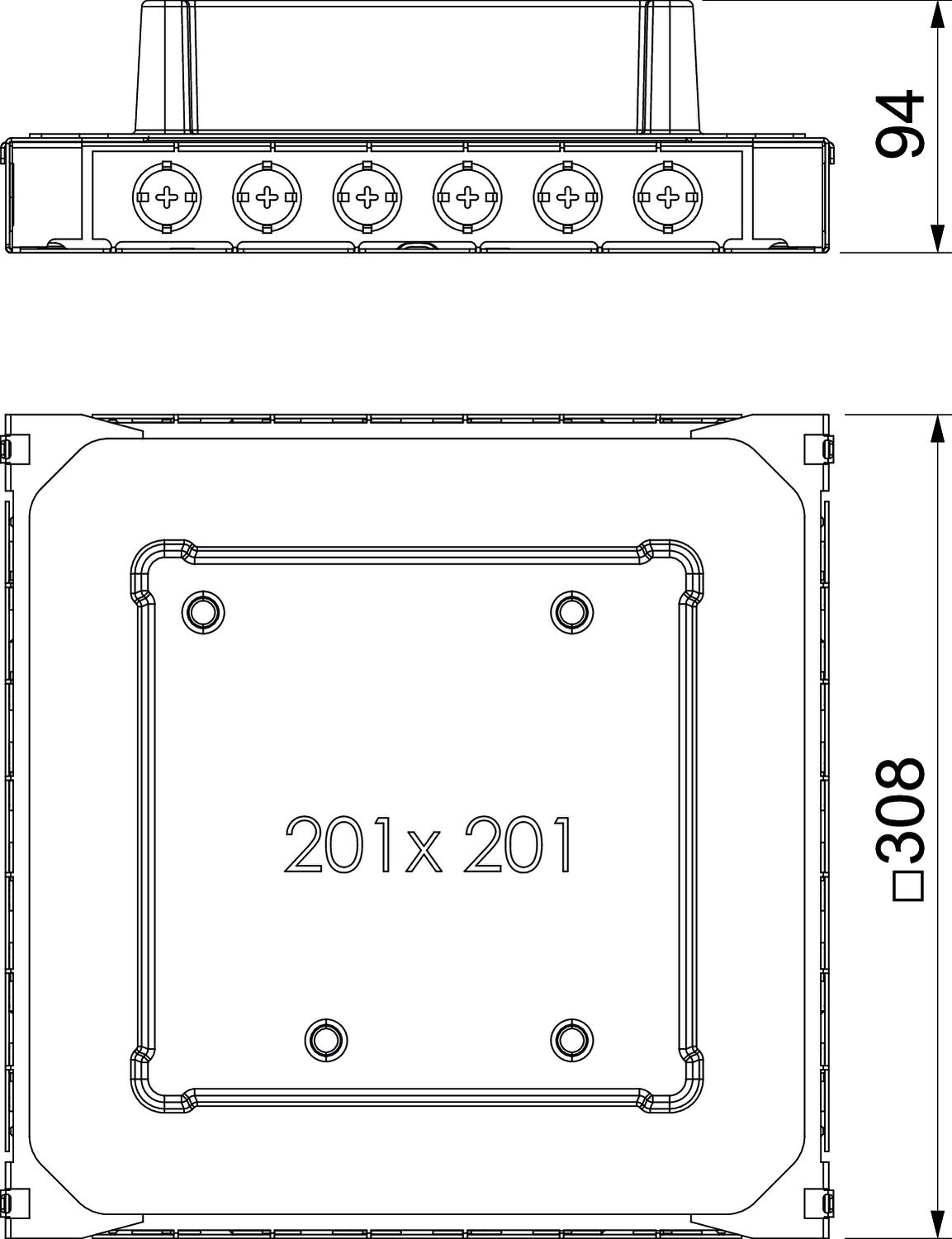

CO₂ Footprint (GWP) Cradle-to-Gate 9,899 kg CO₂e / 1 Piece Decouplable no Dimension 308x308x92 Duct height, min. 38 mm Floor plate no For pipe connection yes Height 92 mm Height-adjustment range, max. 95 mm Height-adjustment range, min. 62 mm Installation opening for flush-mount unit Square Installation opening for on-floor tank no Length 308 mm Lowerable to be flush-floor no Material Steel Nominal size 308 mm Nominal size for device installation units 4 Number of installable devices 1 Protection rating (IP) when used IP20 Screed height, max. 90 mm Screed height, min. 65 mm Seal installation option yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Surface Strip galvanized Trunking height, max. 38 mm Trunking width, max. 250 mm Trunking width, min. 250 mm Width 308 mm - All types
- Downloads
-
Data sheet UDSSD 25038 4 / 7400349 , 0.20MB , pdfEU declaration of conformity UDSSD 25038 4 / 7400349 , 0.13MB , pdfLabel approval VDE symbol approval, EÜK-SN , 0.18MB , pdfNo invitation to tender text is available for this product.
