Underfloor box UDS6 for installation pipe and metal duct

Item no. 7400351 | EAN 4012195729815

Product description
Product description

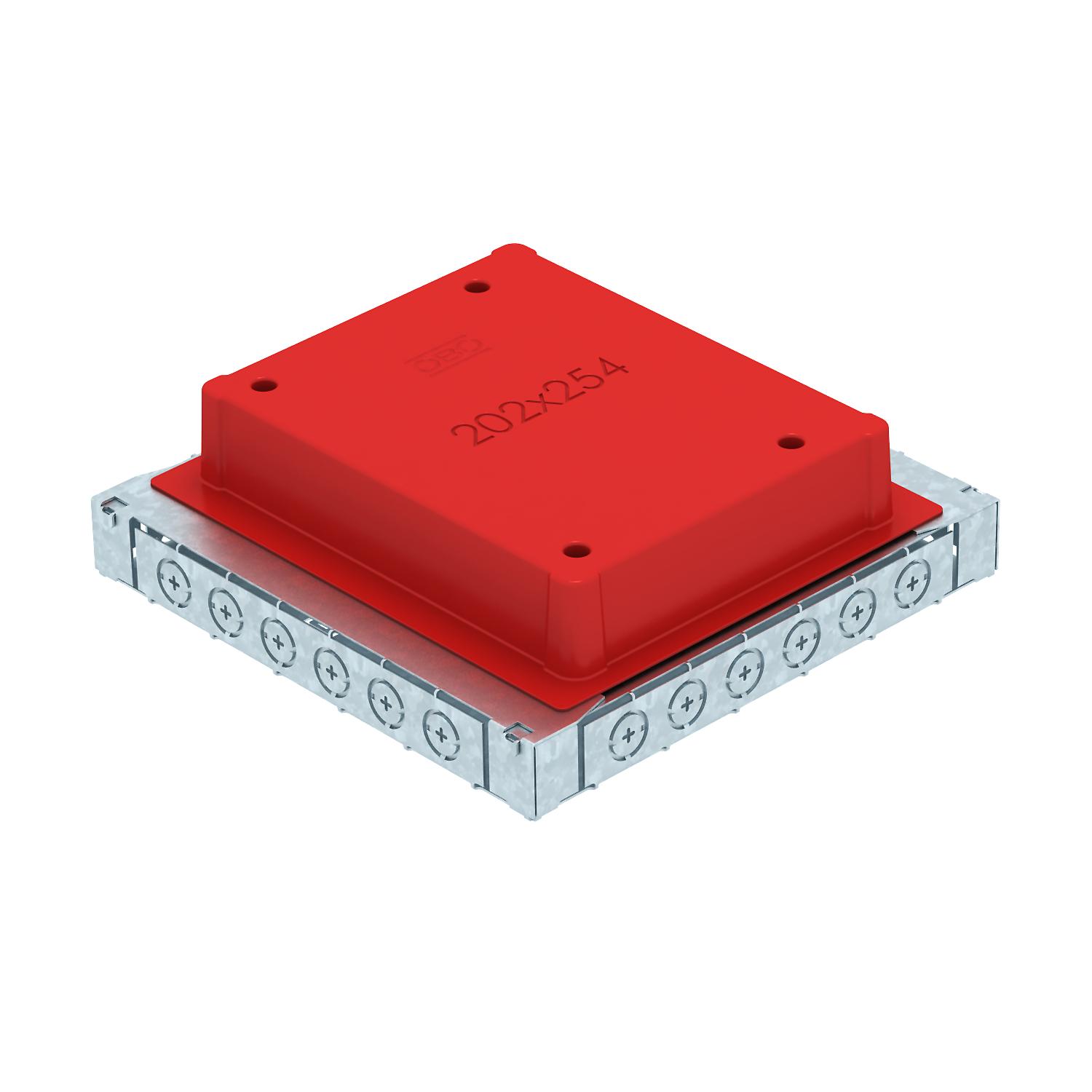

Underfloor outlet box with fixed, unchangeable 202 x 254 mm installation opening for an installation unit of nominal size 6. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 8,399 kg CO₂e / 1 Piece

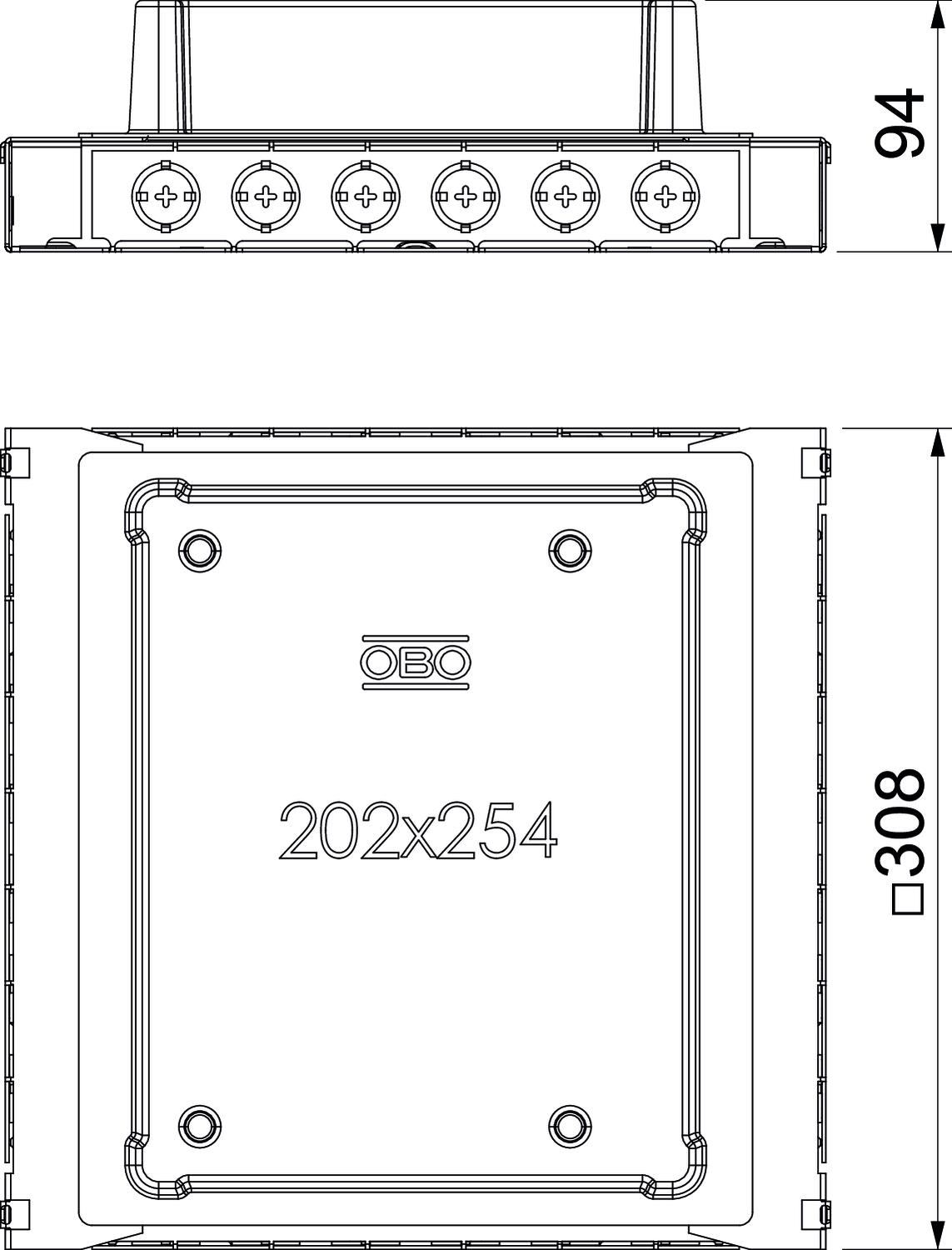

Dimension 308x308x92
Material Steel
Nominal size for device installation units 6
Screed height, max. 90 mm
Screed height, min. 65 mm
Surface Strip galvanized
All types

All types

Types Item no. Quantity SSU
UDSSD 25038 6 7400351
5 piece
Downloads

Download

EU declaration of conformity UDSSD 25038 6 / 7400351 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
