Underfloor box UDS6 for PVC duct

Item no. 7400350 | EAN 4012195729785

Product description
Product description

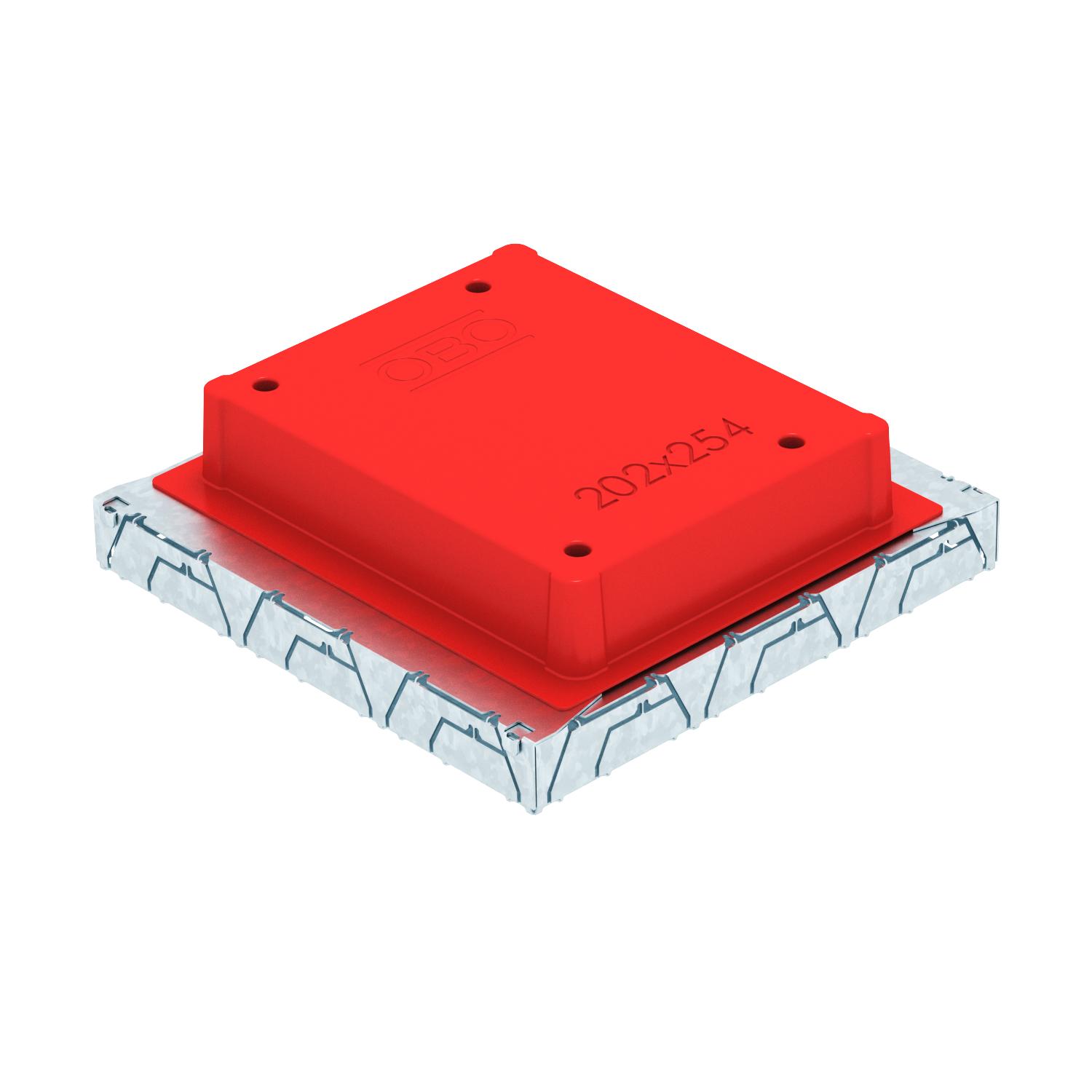

Underfloor outlet box with fixed, unchangeable 202 x 254 mm installation opening for an installation unit of nominal size 6. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for three single-compartment PVC ducts of nominal size 60 x 25 and 90 x 35 on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 8,067 kg CO₂e / 1 Piece

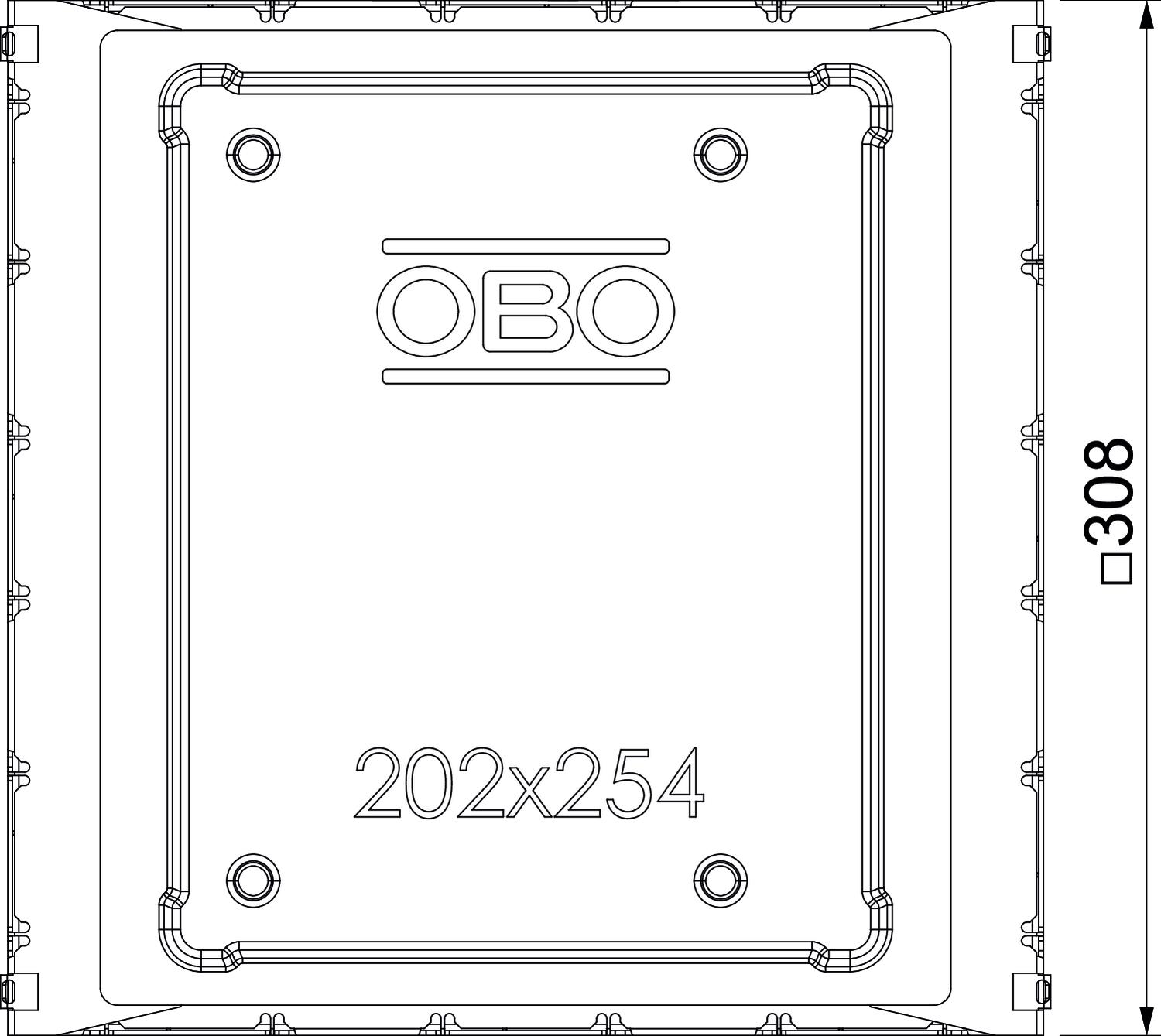

Dimension 308x308x92
Duct height, min. 25 mm
Floor plate yes
Height 92 mm
Installation opening for flush-mount unit Rectangular
Installation opening for on-floor tank no
Length 308 mm
Material Steel
Nominal size for device installation units 6
Screed height, max. 90 mm
Screed height, min. 65 mm
Seal installation option yes
Suitable for screed-covered underfloor ducts yes
Surface Strip galvanized
Trunking height, max. 35 mm
Trunking width, max. 90 mm
Trunking width, min. 60 mm
Width 308 mm
All types

All types

Types Item no. Quantity SSU
UDSPD 9035 6 7400350
5 piece
Downloads

Download

EU declaration of conformity UDSPD 9035 6 / 7400350 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
