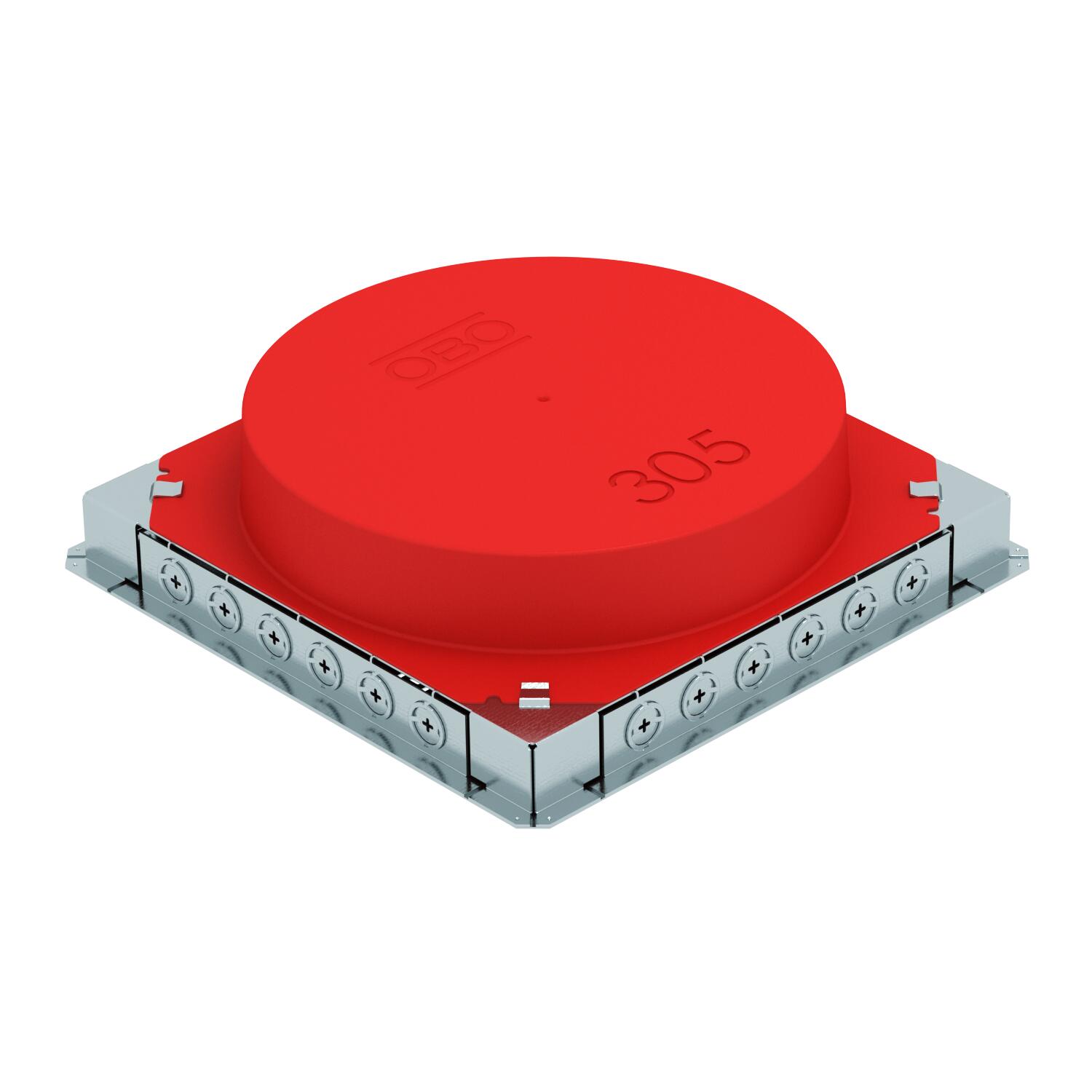

Underfloor box UDSR9 for installation pipe and metal duct

Item no. 7400359 | EAN 4012195729891

Product description
Product description
Underfloor outlet box with fixed, unchangeable installation opening of Ø 305 mm for an installation unit of nominal size R9. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 95 mm.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 9,84 kg CO₂e / 1 Piece

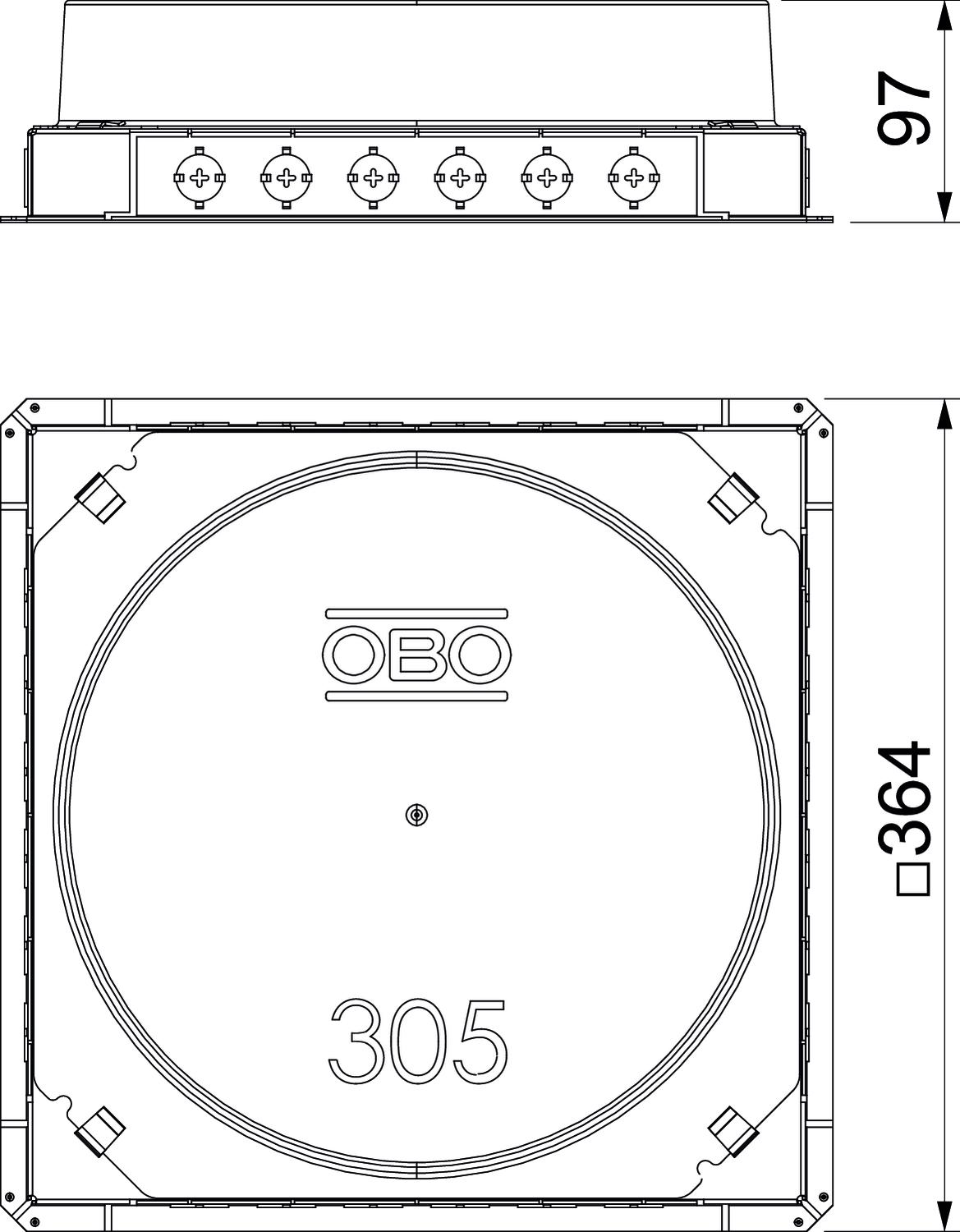

Dimension 364x364x97
Dimension d Ø 305 mm
Material Steel
Nominal size for device installation units R9
Screed height, max. 95 mm
Screed height, min. 65 mm
Surface Strip galvanized
All types

All types

Types Item no. Quantity SSU
UDSSD 25038 R9 7400359
5 piece
Downloads

Download

EU declaration of conformity UDSSD 25038 R9 / 7400359 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
