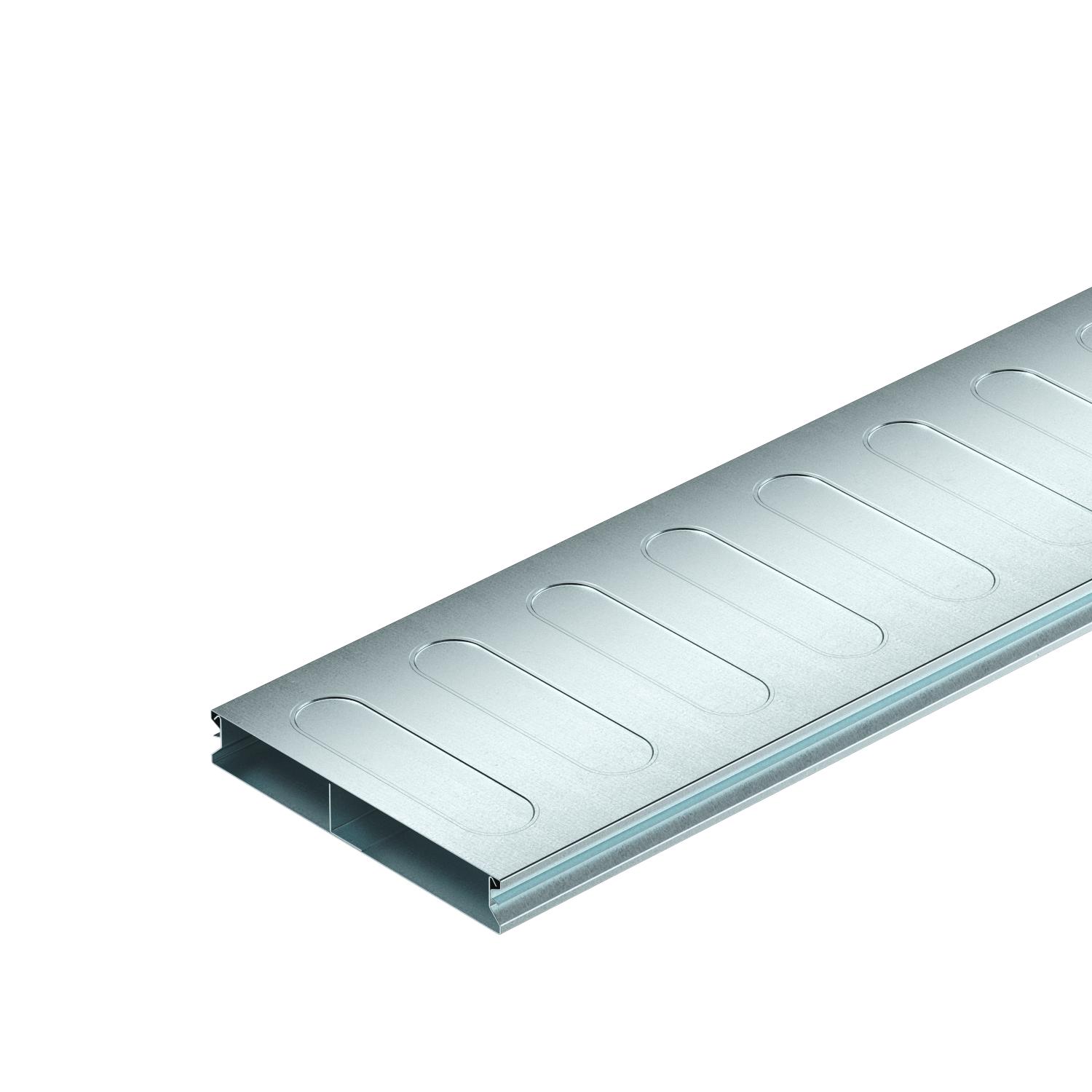

Underfloor duct, 2 pieces, 2-compartment, duct height 28 mm
Item no. 7400256 | EAN 4012197351908
- Product description
-
Product description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
-
- Technical data
-
Technical data
Application area Screed-covered Cross-section, draw a 1923 mm² Cross-section, draw b 2706 mm² Decouplable no Dimension 2000x190x28 Duct height, min. 28 mm Floor plate yes Material Steel Number of compartments 2 St. Number of fixed partitions 1 Removable cover yes Surface Strip galvanized Trunking width, min. 190 mm Usable cross-section 4629 mm² Dimensions

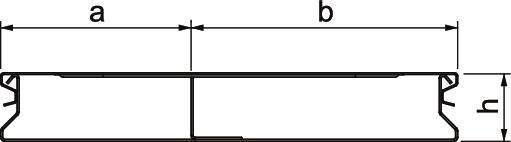

Dimension a 80 mm Dimension b 110 mm Dimension h 28 mm Height 28 mm Length 2000 mm Width 190 mm - All types
- Downloads
-
Data sheet S2 19028-2 / 7400256 , 0.16MB , pdfDeclaration of conformity S2 19028-2 / 7400256 , 0.17MB , pdfMounting instructions EÜK screed-covered duct system , 10.26MB , pdfMounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf
