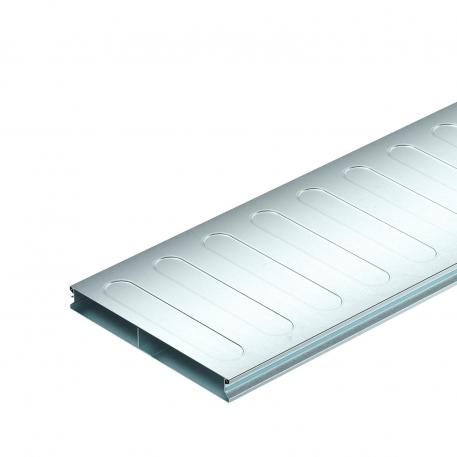

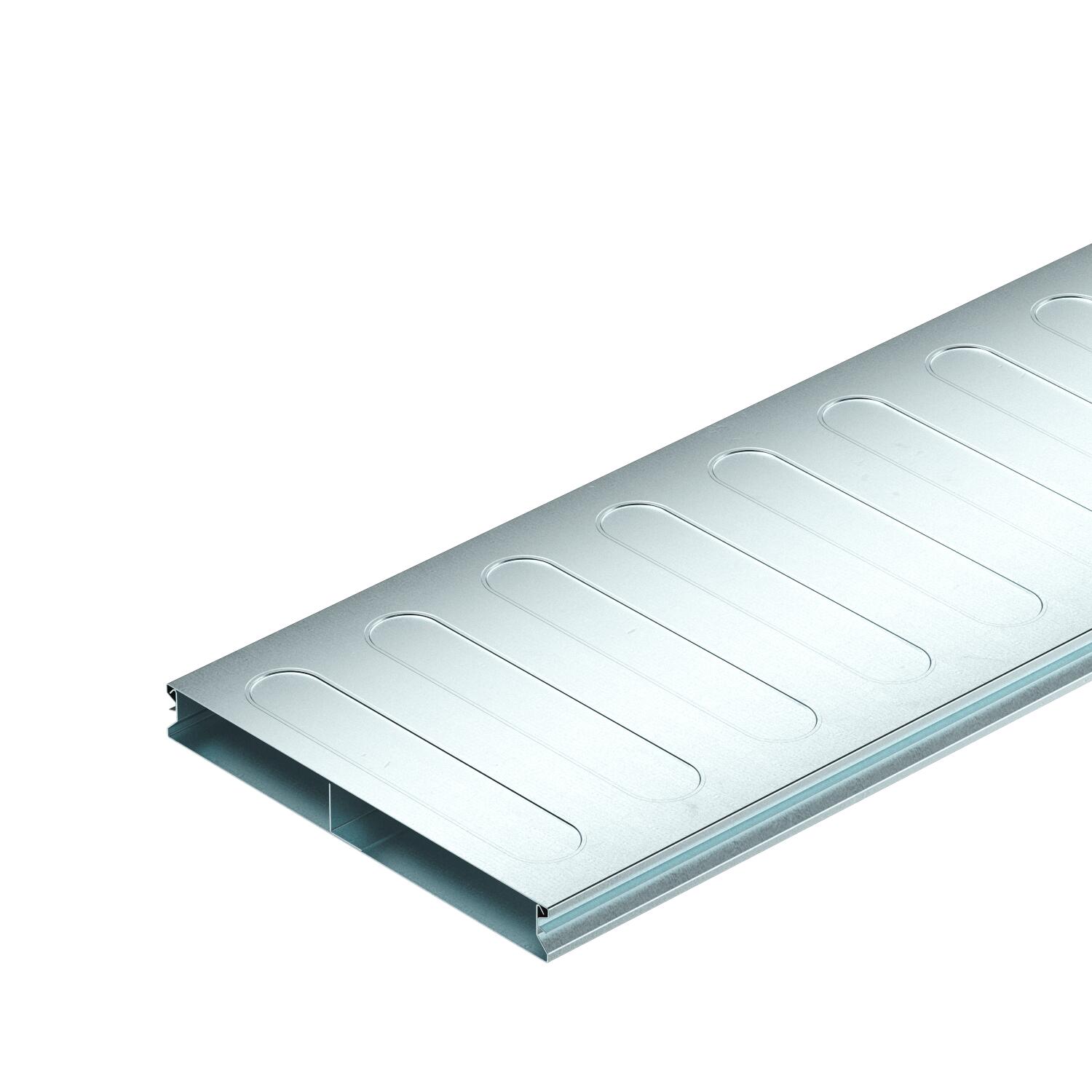

Underfloor duct, 2 pieces, 2-compartment, duct height 28 mm

Item no. 7400265 | EAN 4012197351960

2000 mm
2 St.
Product description
Product description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate 8,149 kg CO₂e / 1 Meter
Cross-section, draw a 2701 mm²
Cross-section, draw b 3483 mm²
Decouplable no
Dimension 2000x250x28
Dimension a 110 mm
Dimension b 140 mm
Dimension h 28 mm
Duct height, min. 28 mm
Floor plate yes
Height 28 mm
Length 2000 mm
Material Steel
Number of compartments 2 St.
Number of fixed partitions 1
Removable cover yes
Surface Strip galvanized
Trunking width, min. 250 mm
Usable cross-section 6184 mm²
Width 250 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S2 19028-2 2000 mm 190 mm 2 St. 7400256
216 m
S2 25028-2 2000 mm 250 mm 2 St. 7400265
162 m
