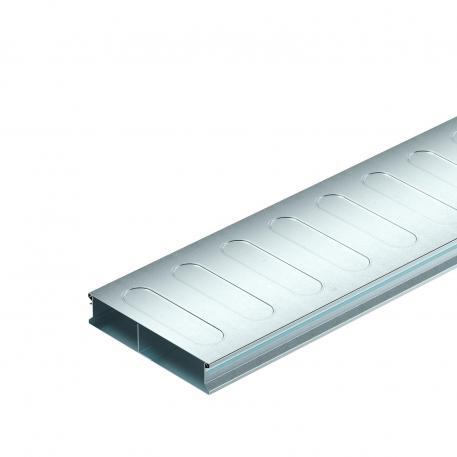

Underfloor duct, 2 pieces, 2-compartment, duct height 38 mm

Item no. 7400258 | EAN 4012197351922

2000 mm
2 St.
Product description
Product description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate 7,094 kg CO₂e / 1 Meter
Cross-section, draw a 2639 mm²
Cross-section, draw b 3730 mm²
Decouplable no
Dimension 2000x190x38
Dimension a 80 mm
Dimension b 110 mm
Dimension h 38 mm
Duct height, min. 38 mm
Floor plate yes
Height 38 mm
Length 2000 mm
Material Steel
Number of compartments 2 St.
Number of fixed partitions 1
Removable cover yes
Surface Strip galvanized
Trunking width, min. 190 mm
Usable cross-section 6369 mm²
Width 190 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S2 19038-2 2000 mm 190 mm 2 St. 7400258
160 m
S2 25038-2 2000 mm 250 mm 2 St. 7400267
2 m
