- Product description
-
Product description

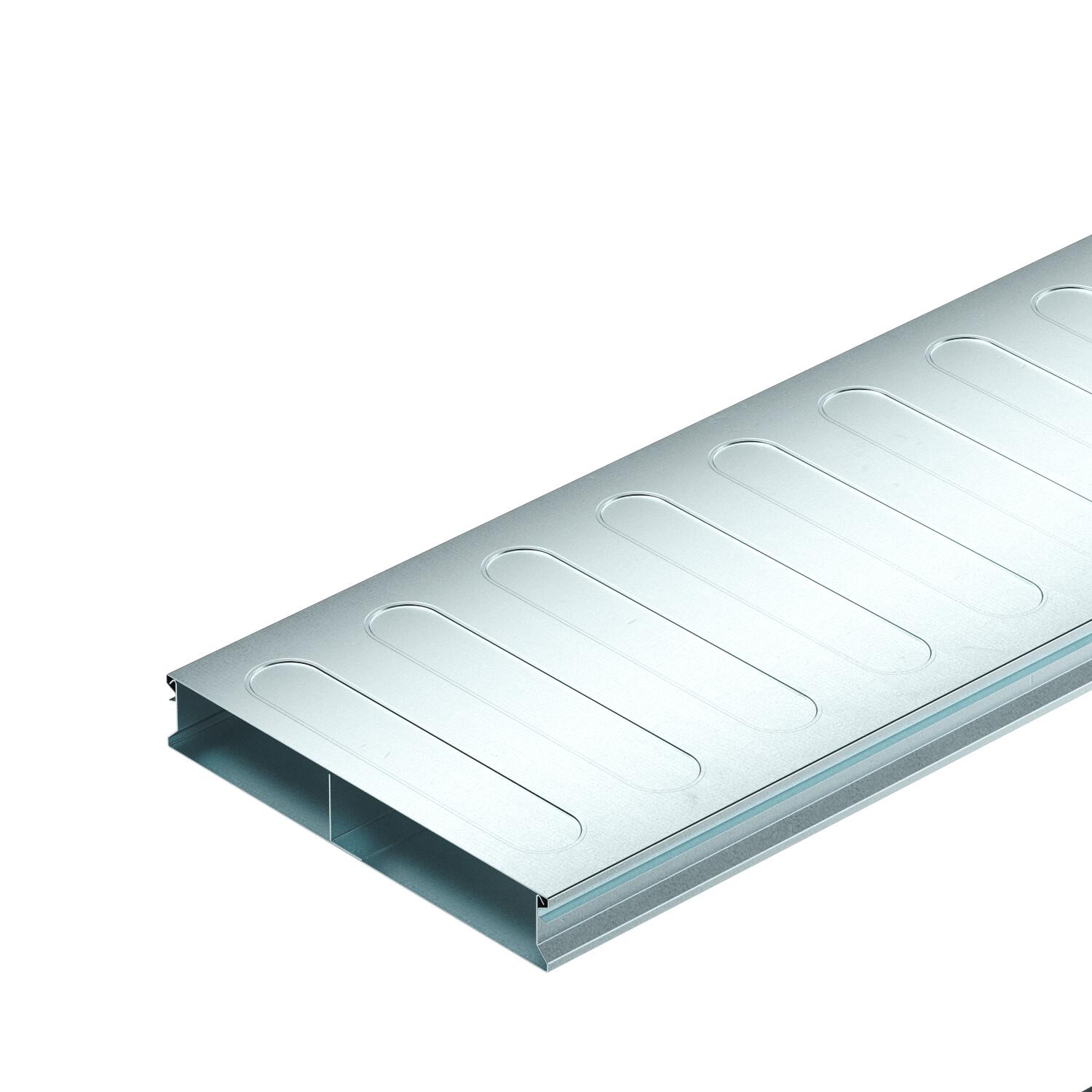

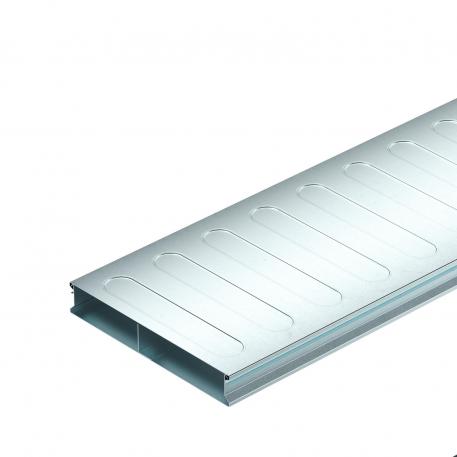

Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
-
- Technical data
-
Technical data
Application area Screed-covered Cross-section, draw a 3717 mm² Cross-section, draw b 4807 mm² Decouplable no Dimension 2000x250x38 Duct height, min. 38 mm Floor plate yes Material Steel Number of compartments 2 St. Number of fixed partitions 1 Removable cover yes Surface Strip galvanized Trunking width, min. 250 mm Usable cross-section 8524 mm² Dimensions
Dimension a 110 mm Dimension b 140 mm Dimension h 38 mm Height 38 mm Length 2000 mm Width 250 mm - All types
- Downloads
-
Data sheet S2 25038-2 / 7400267 , 0.16MB , pdfDeclaration of conformity S2 25038-2 / 7400267 , 0.17MB , pdfMounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdfMounting instructions EÜK screed-covered duct system , 10.26MB , pdfMounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf
