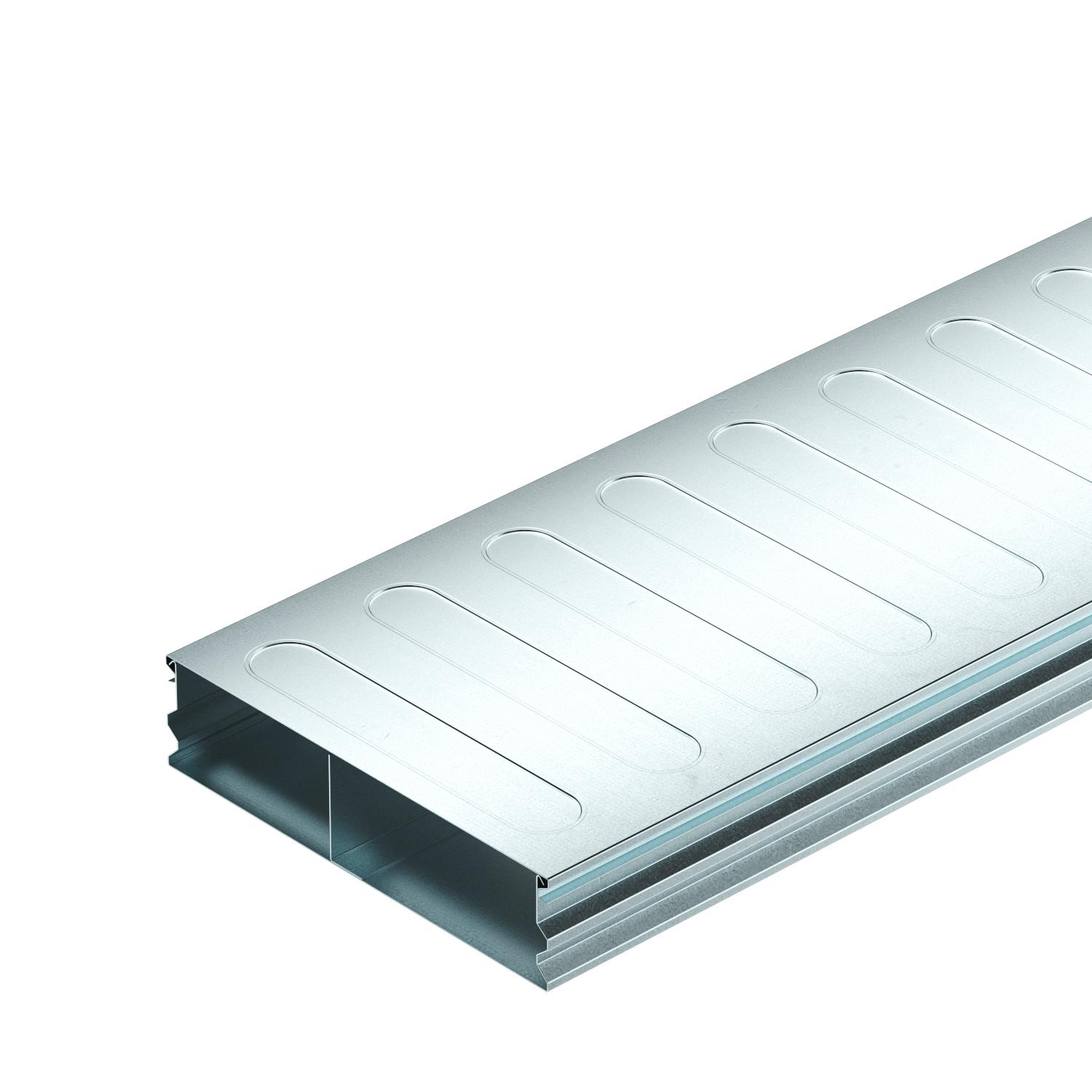

Underfloor duct, 2 pieces, 2-compartment, duct height 58 mm
Item no. 7400271 | EAN 4012197352028
- Product description
-
Product descriptionUnderfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking lid. With separating retainer in the trunking base. Only compatible with the UZD250-4/350-4.
-
- Technical data
-
Technical data
Application area Screed-covered CO₂ Footprint (GWP) Cradle-to-Gate 9,572 kg CO₂e / 1 Meter Cross-section, draw a 5800 mm² Cross-section, draw b 7500 mm² Decouplable no Dimension 2000x250x58 Dimension a 110 mm Dimension b 140 mm Dimension h 58 mm Duct height, min. 58 mm Floor plate yes Height 58 mm Length 2000 mm Material Steel Number of compartments 2 St. Number of fixed partitions 1 Removable cover yes Surface Strip galvanized Trunking width, min. 250 mm Usable cross-section 13300 mm² Width 250 mm - All types
- Downloads
-
Data sheet S2 25058-2 / 7400271 , 0.19MB , pdfEU declaration of conformity S2 25058-2 / 7400271 , 0.10MB , pdfDeclaration of performance S2 25058-2 / 7400271 , 0.34MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
