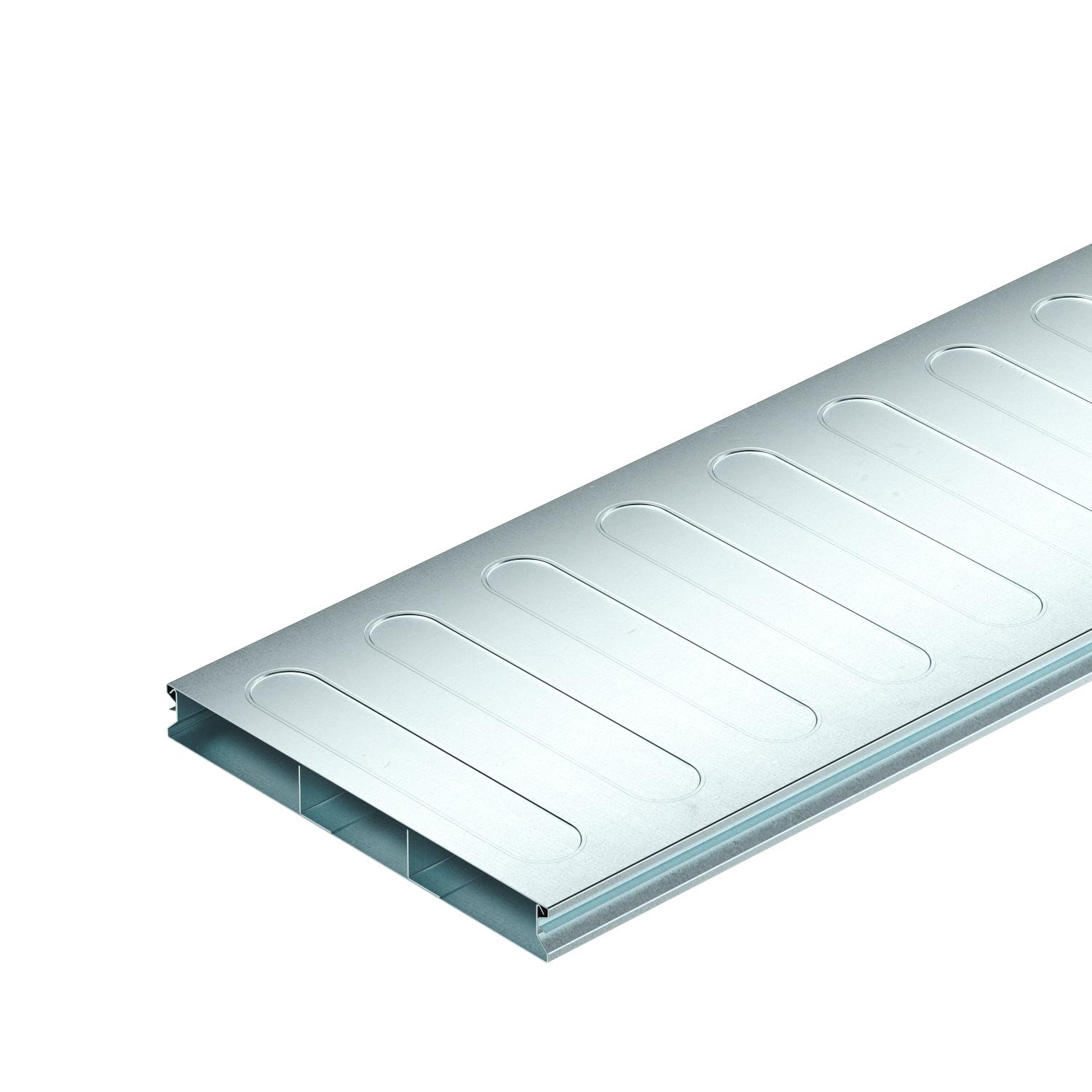

Underfloor duct, 2 pieces, 3-compartment, duct height 28 mm
Item no. 7400275 | EAN 4012197352042
- Product description
-
Product description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
-
- Technical data
-
Technical data
Application area Screed-covered Cross-section, draw a 2166 mm² Cross-section, draw b 1798 mm² Decouplable no Dimension 2000x250x28 Duct height, min. 28 mm Floor plate yes Material Steel Number of compartments 3 St. Number of fixed partitions 2 Removable cover yes Surface Strip galvanized Trunking width, min. 250 mm Usable cross-section 6130 mm² Dimensions

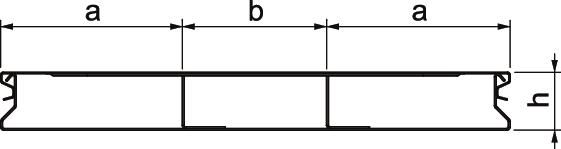

Dimension a 90 mm Dimension b 70 mm Dimension h 28 mm Height 28 mm Length 2000 mm Width 250 mm - All types
- Downloads
-
Data sheet S3 25028-2 / 7400275 , 0.18MB , pdfDeclaration of conformity S3 25028-2 / 7400275 , 0.17MB , pdfMounting instructions EÜK screed-covered duct system , 10.26MB , pdfMounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf
