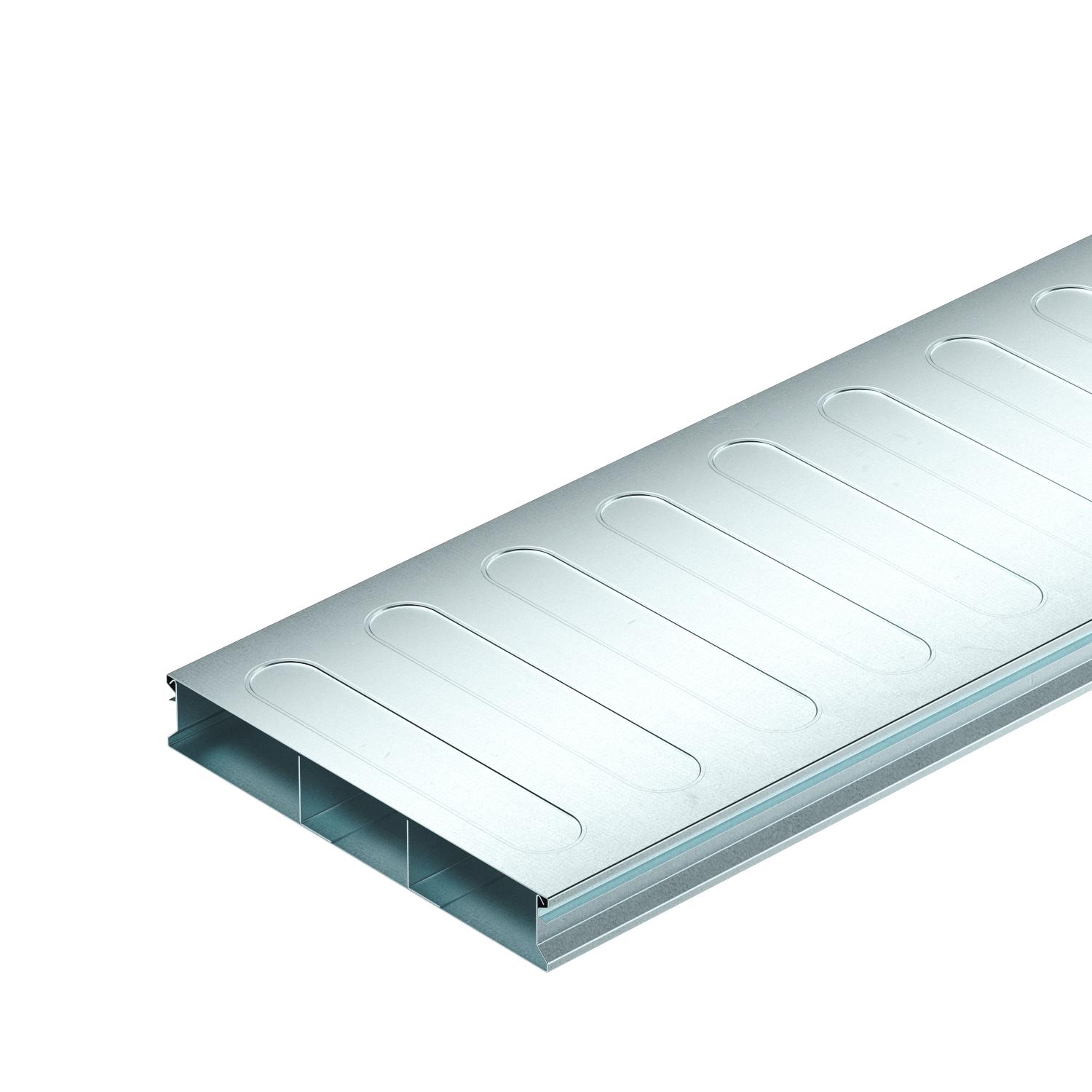

Underfloor duct, 2 pieces, 3-compartment, duct height 38 mm

Item no. 7400279 | EAN 4012197352066

2000 mm
3 St.
Product description
Product description
Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate 8,579 kg CO₂e / 1 Meter
Cross-section, draw a 2962 mm²
Cross-section, draw b 2498 mm²
Decouplable no
Dimension 2000x250x38

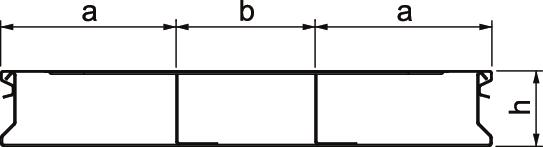

Dimension a 90 mm
Dimension b 70 mm
Dimension h 38 mm
Duct height, min. 38 mm
Floor plate yes
Height 38 mm
Length 2000 mm
Material Steel
Number of compartments 3 St.
Number of fixed partitions 2
Removable cover yes
Surface Strip galvanized
Trunking width, min. 250 mm
Usable cross-section 8422 mm²
Width 250 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S3 25038-2 2000 mm 250 mm 3 St. 7400279
120 m
S3 35038-2 2000 mm 350 mm 3 St. 7400289
80 m
