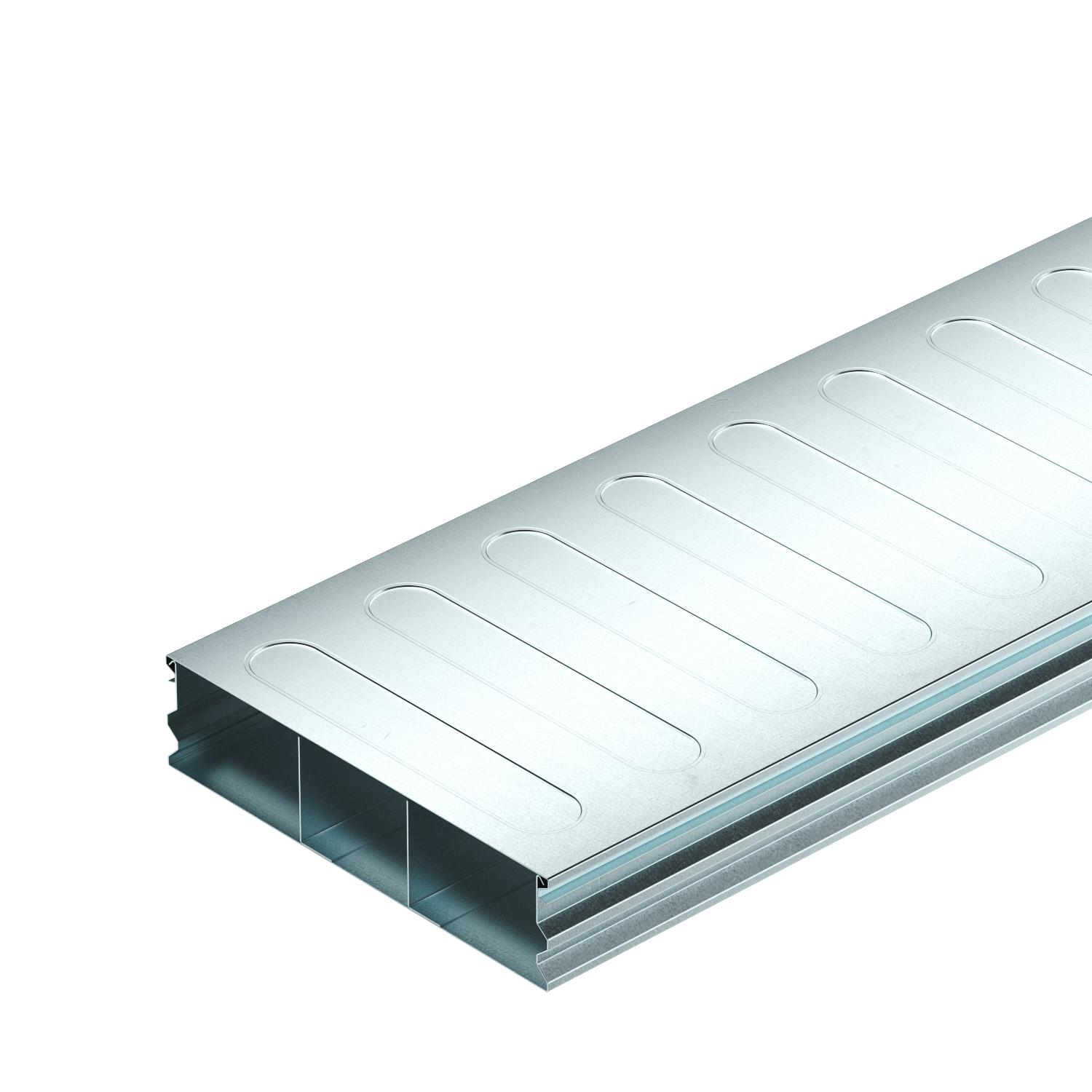

Underfloor duct, 2 pieces, 3-compartment, duct height 58 mm
Item no. 7400283 | EAN 4012197352103
- Product description
-
Product descriptionUnderfloor trunking (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN. Only compatible with the UZD250-4/350-4
-
- Technical data
-
Technical data

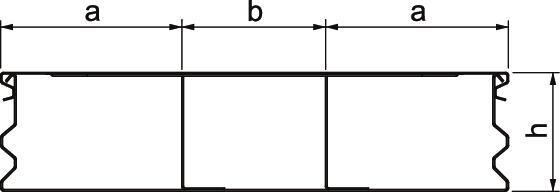

Application area Screed-covered CO2 Footprint (GWP) Cradle-to-Gate 9,556 kg CO₂e / 1 Meter Cross-section, draw a 4670 mm² Cross-section, draw b 3884 mm² Decouplable no Dimension 2000x250x58 Dimension a 90 mm Dimension b 70 mm Dimension h 58 mm Duct height, min. 58 mm Floor plate yes Height 58 mm Length 2000 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Removable cover yes Surface Strip galvanized Trunking width, min. 250 mm Usable cross-section 13224 mm² Vertical load, large area to 1,500 N Width 250 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Vertical bend, three-compartment, height 58 mm
KV3 25058-2 7400655 4 piece
Connection shackle, conductive, for EÜK-2
VL 250-2 7400992 6 piece - Downloads
-
