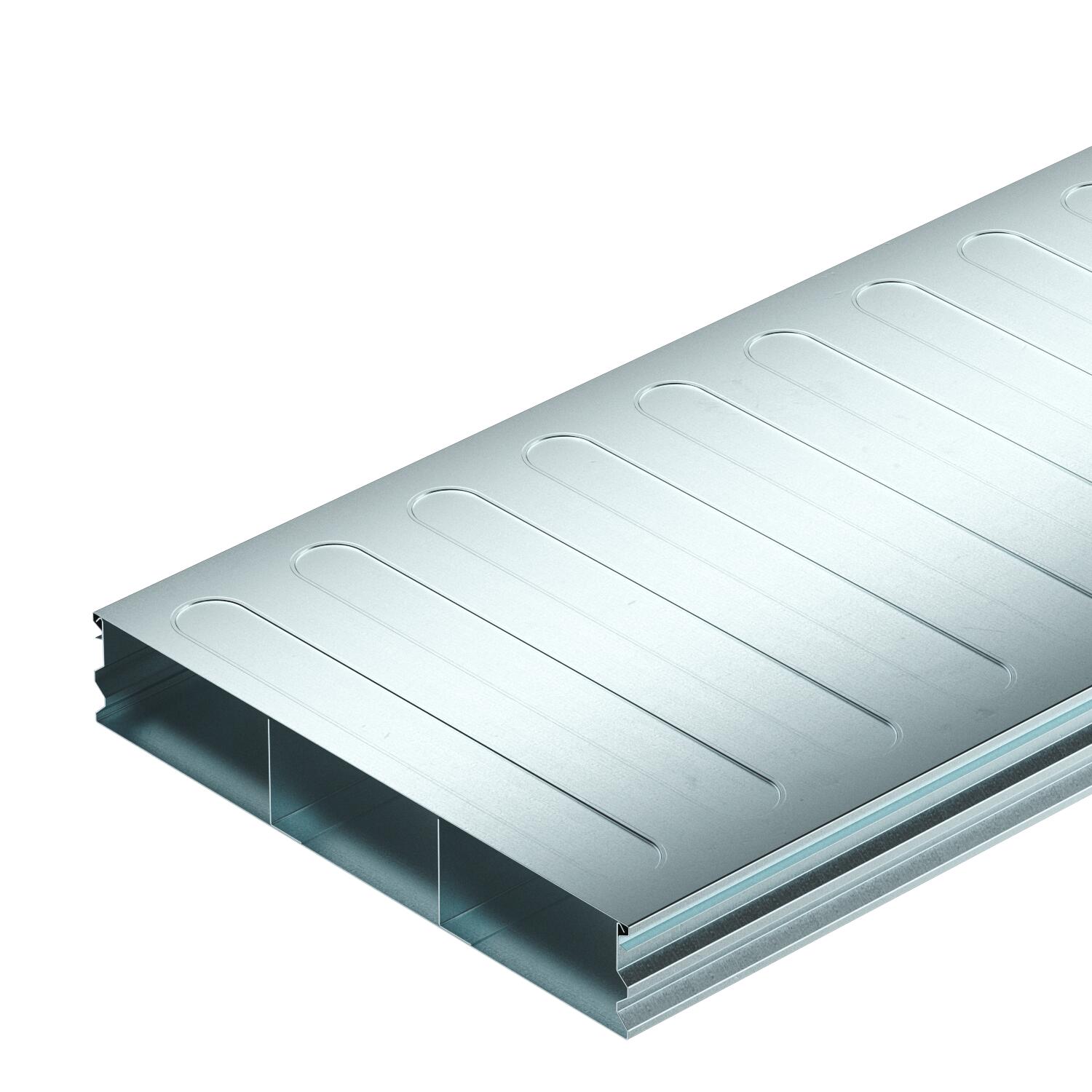

Underfloor duct, 2 pieces, 3-compartment, duct height 58 mm

Item no. 7400293 | EAN 4012197352189

2000 mm
3 St.
Product description

Product description

Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking lid. With separating retainer in the trunking base. Only compatible with the UZD250-4/350-4.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Application area Screed-covered
Cross-section, draw a 6341 mm²
Cross-section, draw b 6112 mm²
Decouplable no

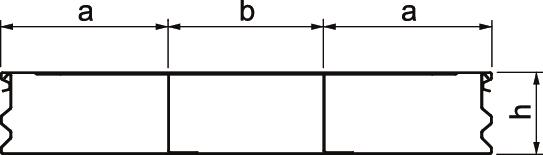

Dimension 2000x350x58
Dimension a 120 mm
Dimension b 110 mm
Dimension h 58 mm
Duct height, min. 58 mm
Floor plate yes
Height 58 mm
Length 2000 mm
Material Steel
Number of compartments 3 St.
Number of fixed partitions 2
Removable cover yes
Surface Strip galvanized
Trunking width, min. 350 mm
Usable cross-section 18794 mm²
Width 350 mm
All types

All types

Types Length Width Number of compartments Item no. Quantity SSU
S3 25058-2 2000 mm 250 mm 3 St. 7400283
78 m
S3 35058-2 2000 mm 350 mm 3 St. 7400293
52 m
