Underfloor outlet box for GESRM2 mounting 70 | 85
morepic-1 morepic-2

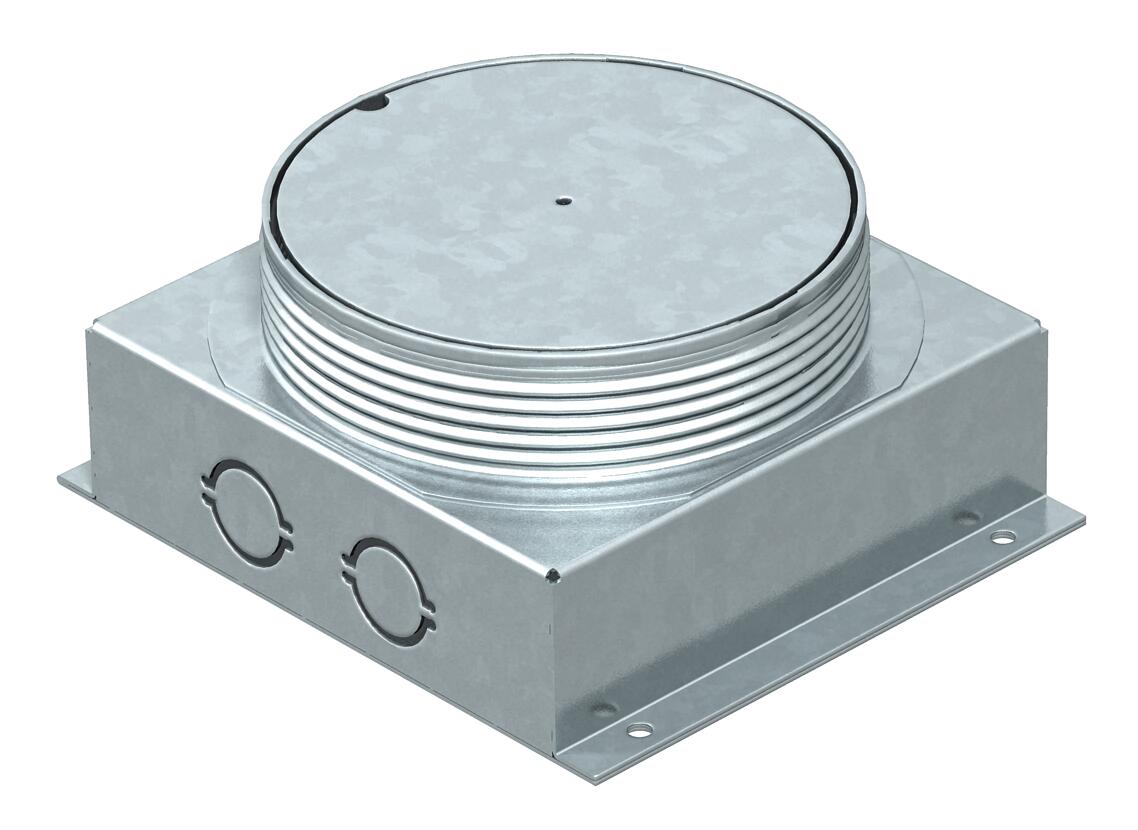

Underfloor outlet box for GESRM2 mounting

Item no. 7408558 | EAN 4012195116325

7408558 / UDL2-120 70
70 mm
85 mm
Product description
Product description
Underfloor outlet box for the installation of a GESRM2 service outlet. With 2 x 2 openings for M20 or Pg16 pipe installation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover version Round
CO₂ Footprint (GWP) Cradle-to-Gate 2,1826 kg CO₂e / 1 Piece

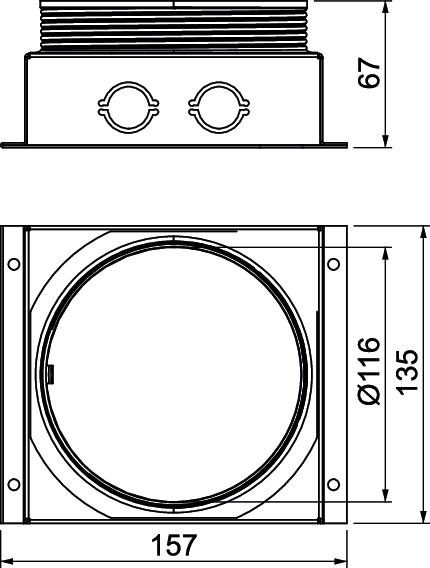

Dimension 135x157x70
For pipe connection yes
Material Steel
Screed height, max. 85 mm
Screed height, min. 70 mm
Seal installation option no
Surface Strip galvanized
All types

All types

Types Screed height, min. Screed height, max. Item no. Quantity SSU
UDL2-120 70 70 mm 85 mm 7408558
10 piece
