Product description

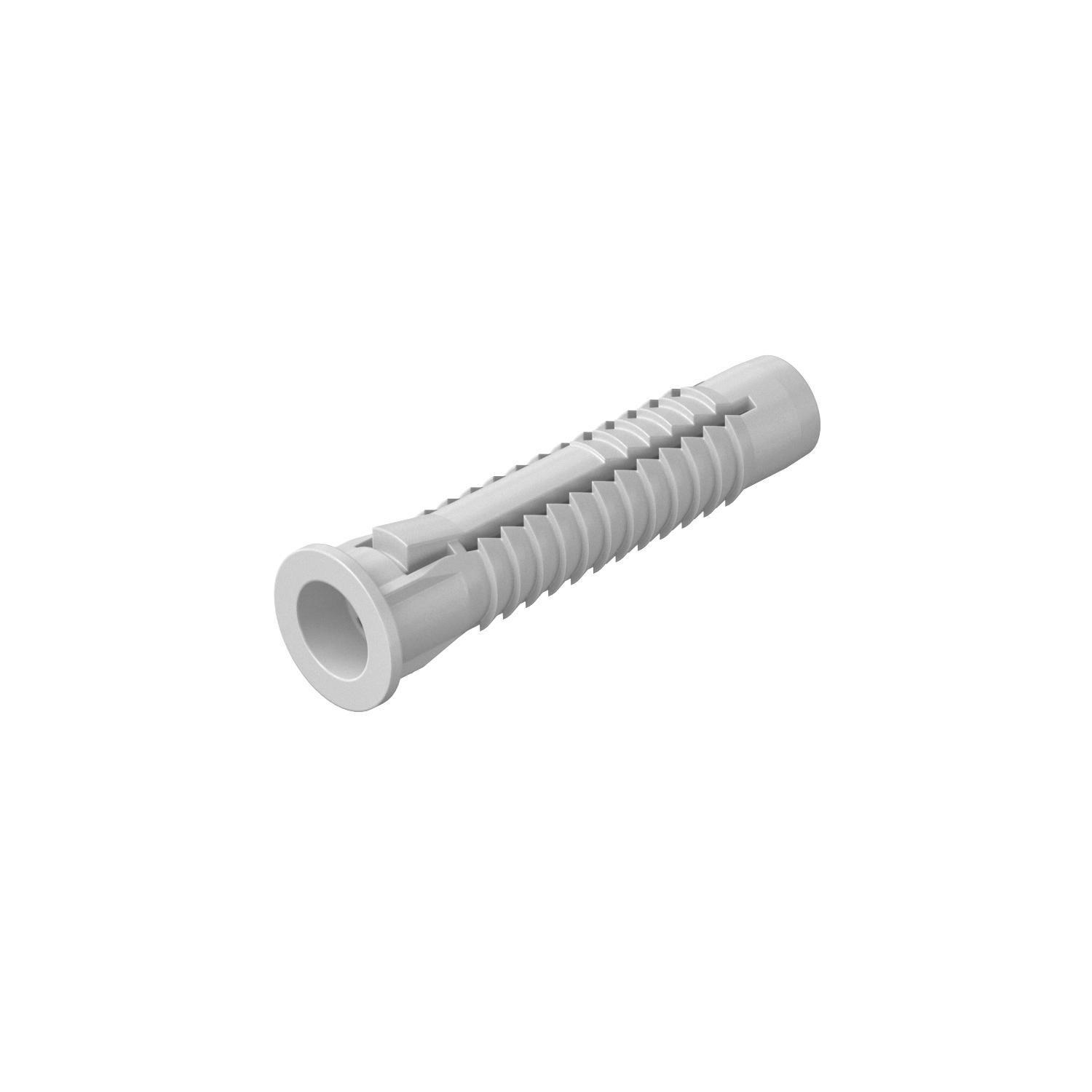

Also suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
- Technical data
-
Technical data

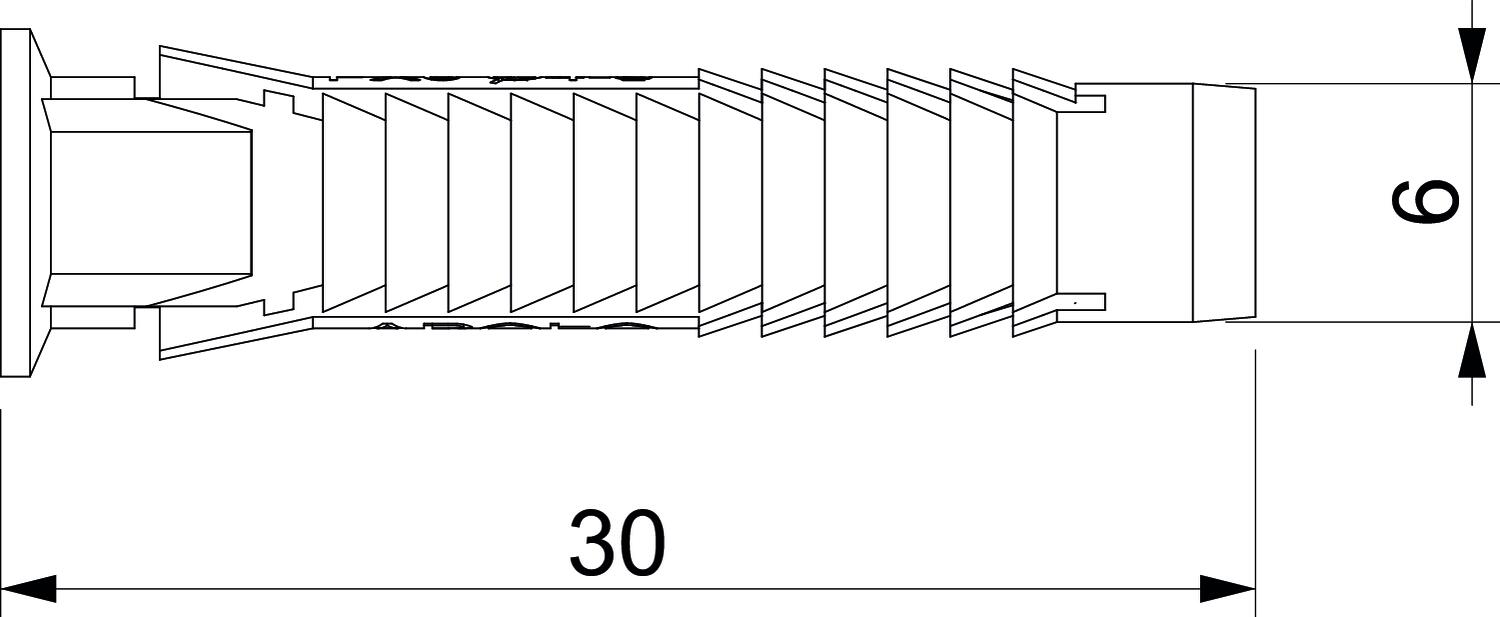

Colour Light grey Diameter 6 mm Dimension 6x30 Dimension D 6 mm Dimension L 30 mm Drill hole diameter, min. 6 mm Length 30 mm Material Polyethylene Pull-out value 470 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 3,5-5 - All types
- Downloads
-
Data sheet 910 FX 6x30 / 2347582 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 FX 6x30 / 2347582 , 0.12MB , pdfRoHS Declaration of conformity 910 FX 6x30 / 2347582 , 0.12MB , pdf
