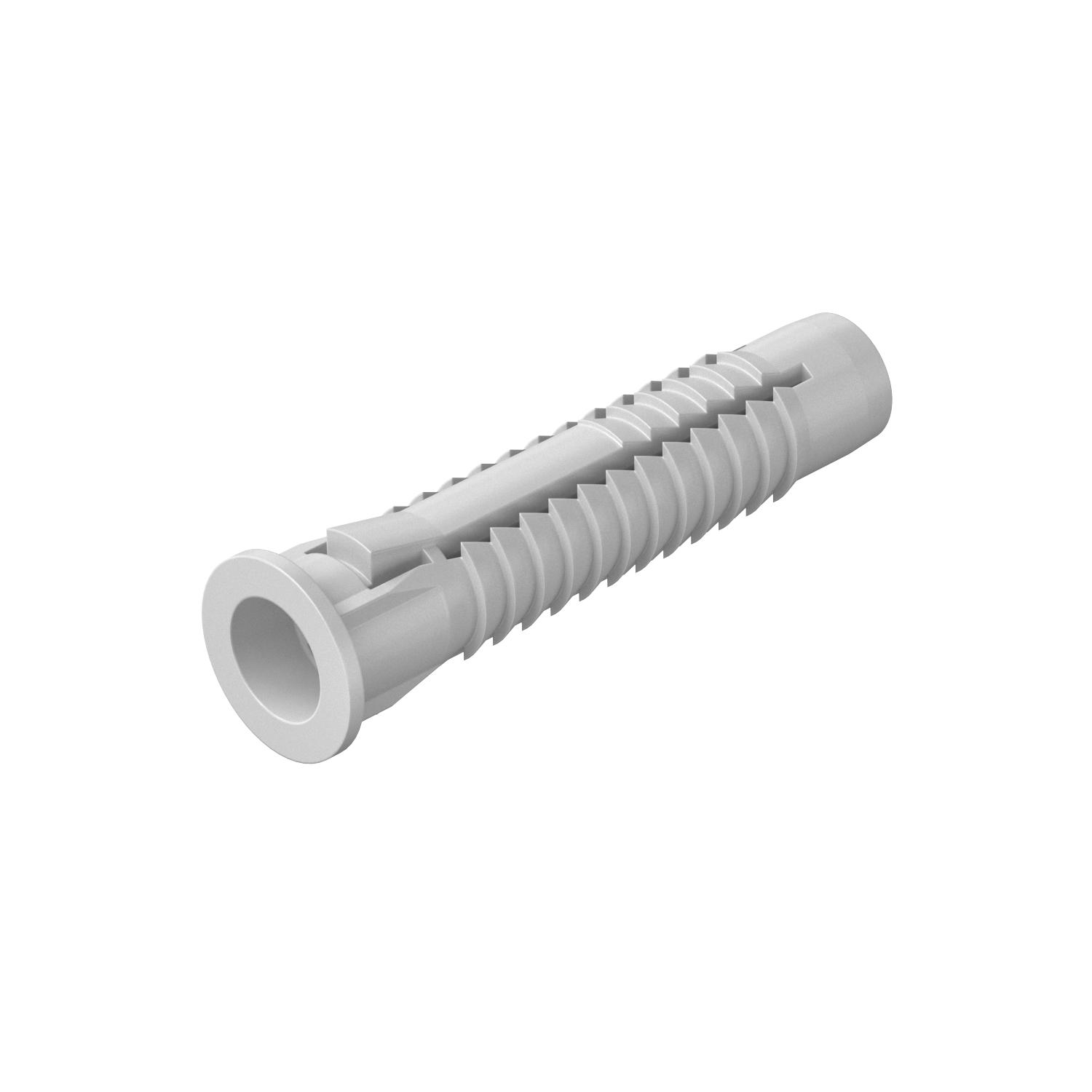

Universal anchor
Item no. 2347584 | EAN 4012196788545
- Product description
-
Product descriptionAlso suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x
-
- Technical data
-
Technical data

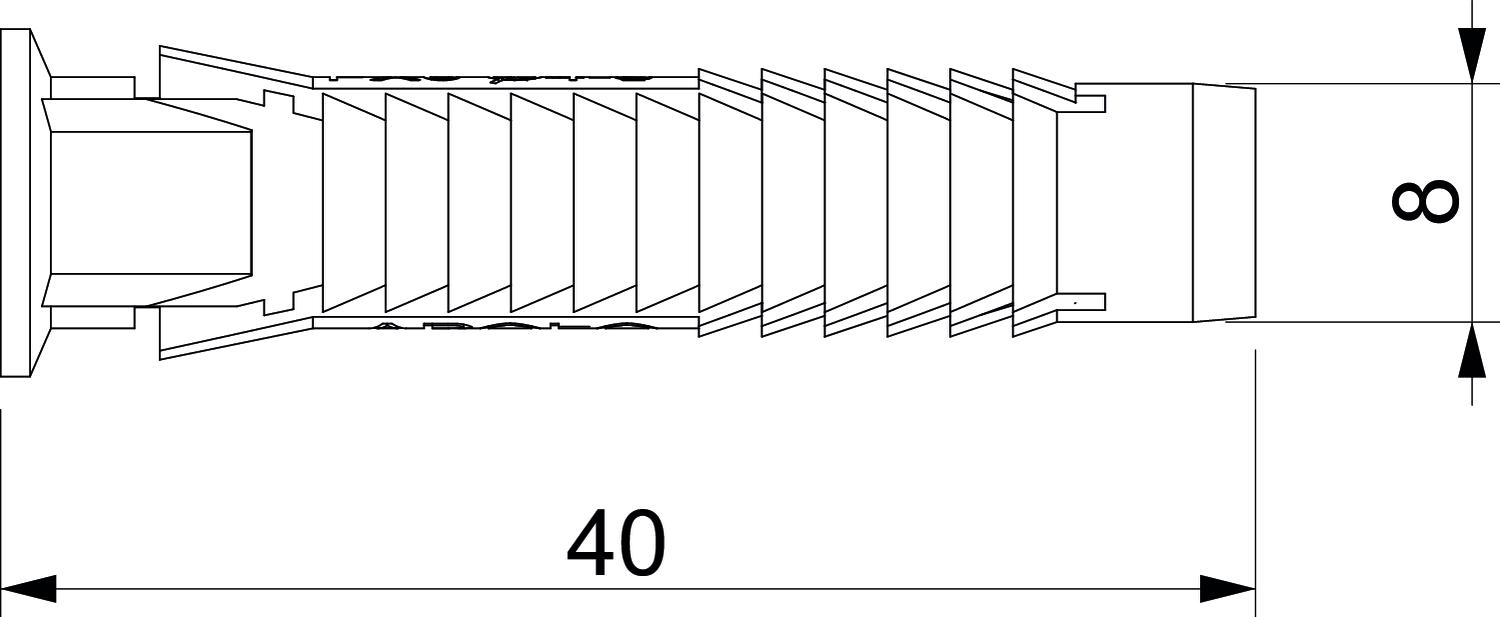

Colour Light grey Diameter 8 mm Dimension 8x40 Dimension D 8 mm Dimension L 40 mm Drill hole diameter, min. 8 mm Length 40 mm Material Polyethylene Pull-out value 520 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Version for Universal anchor With bolts no Wood screws 4,5-6 - All types
- Downloads
-
Data sheet 910 FX 8x40 / 2347584 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 FX 8x40 / 2347584 , 0.12MB , pdfRoHS Declaration of conformity 910 FX 8x40 / 2347584 , 0.12MB , pdf
