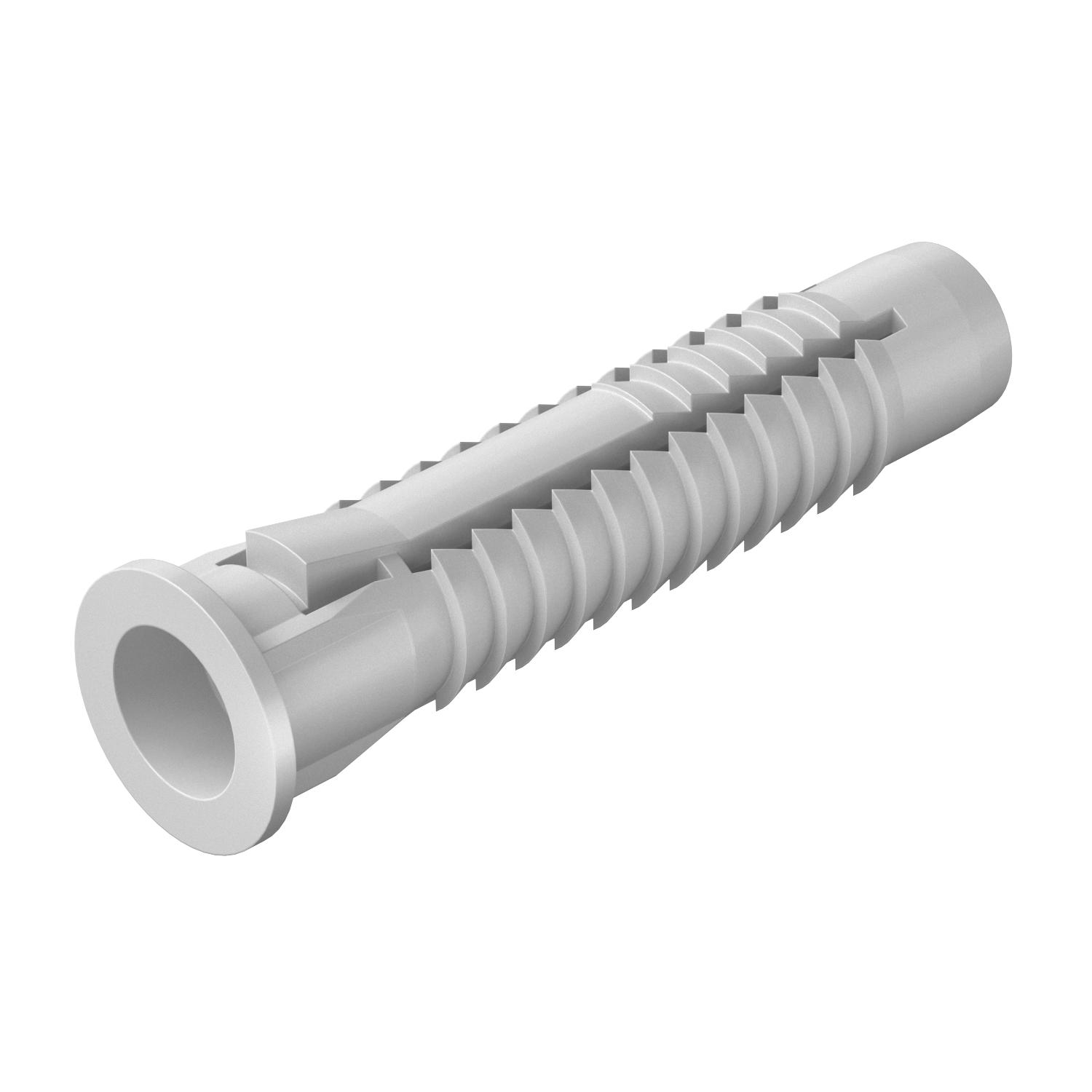

Universal anchor

Item no. 2347588 | EAN 4012196788569

Item no. / Types

Length

Diameter

Drill hole diameter, min.

Product description

Product description

Also suitable as a cavity anchor, with collars to prevent slipping. 3 tabs take up the torque.
Required minimum bolt length = anchor length + component thickness + 1 x bolt Ø.
Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.
Our safety value recommendation: 5x

Technical data

Technical data

Colour	Light grey
Diameter	12 mm

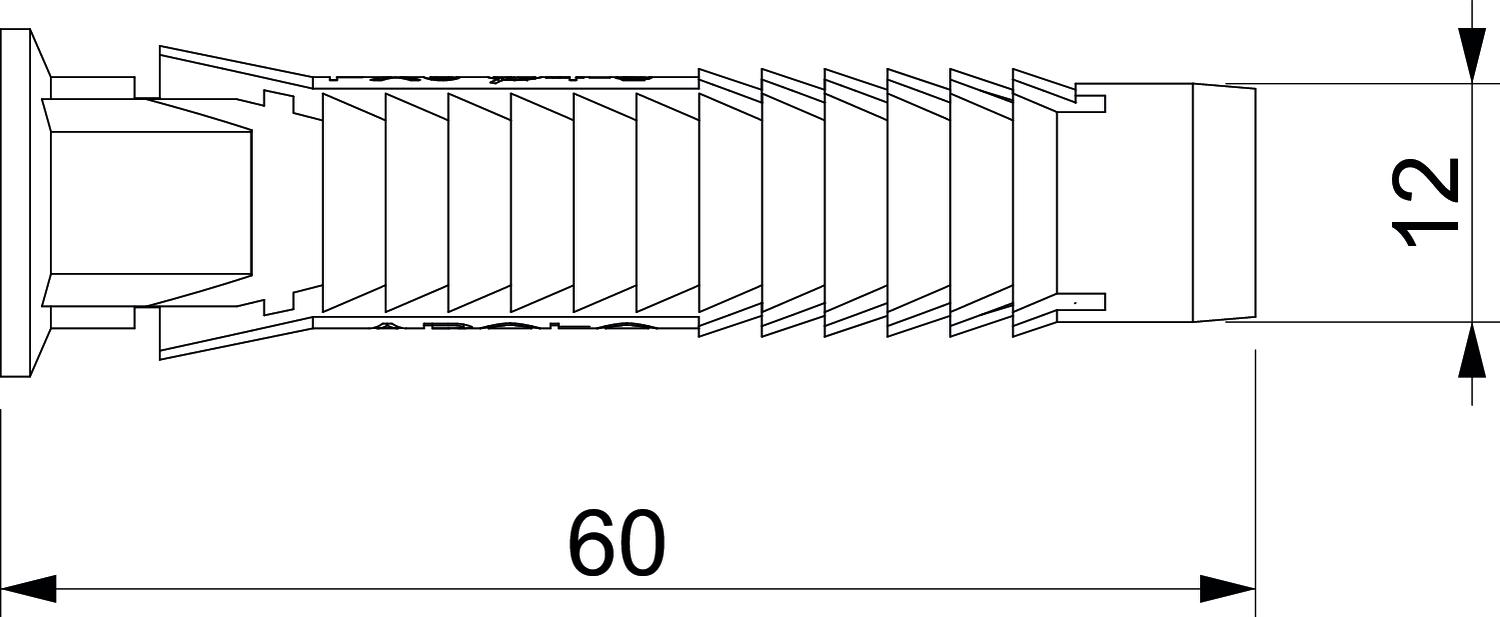

Dimension	12x60
Dimension D	12 mm
Dimension L	60 mm
Drill hole diameter, min.	12 mm
Length	60 mm

Material	Polyethylene
Pull-out value	1910 N
Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	yes
Version for	Universal anchor
With bolts	no
Wood screws	8-10

All types

All types

Types	Length	Diameter	Drill hole diameter, min.	Item no.	Quantity	SSU
910 FX 5x25	30 mm	5 mm	5 mm	2347580	piece	100 piece
910 FX 6x30	30 mm	6 mm	6 mm	2347582	piece	100 piece
910 FX 8x40	40 mm	8 mm	8 mm	2347584	piece	100 piece
910 FX10x50	50 mm	10 mm	10 mm	2347586	piece	50 piece
910 FX 12x60	60 mm	12 mm	12 mm	2347588	piece	25 piece
