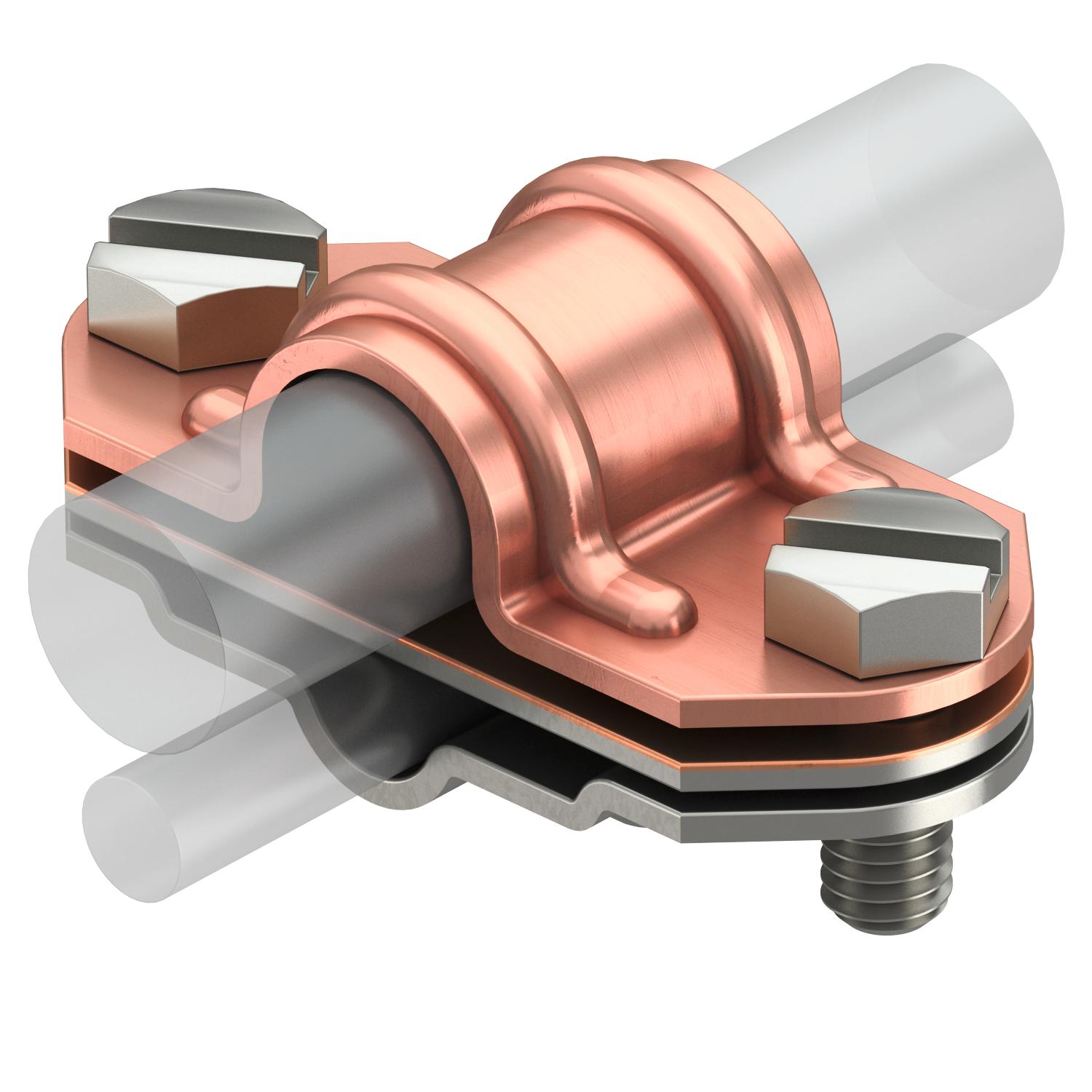

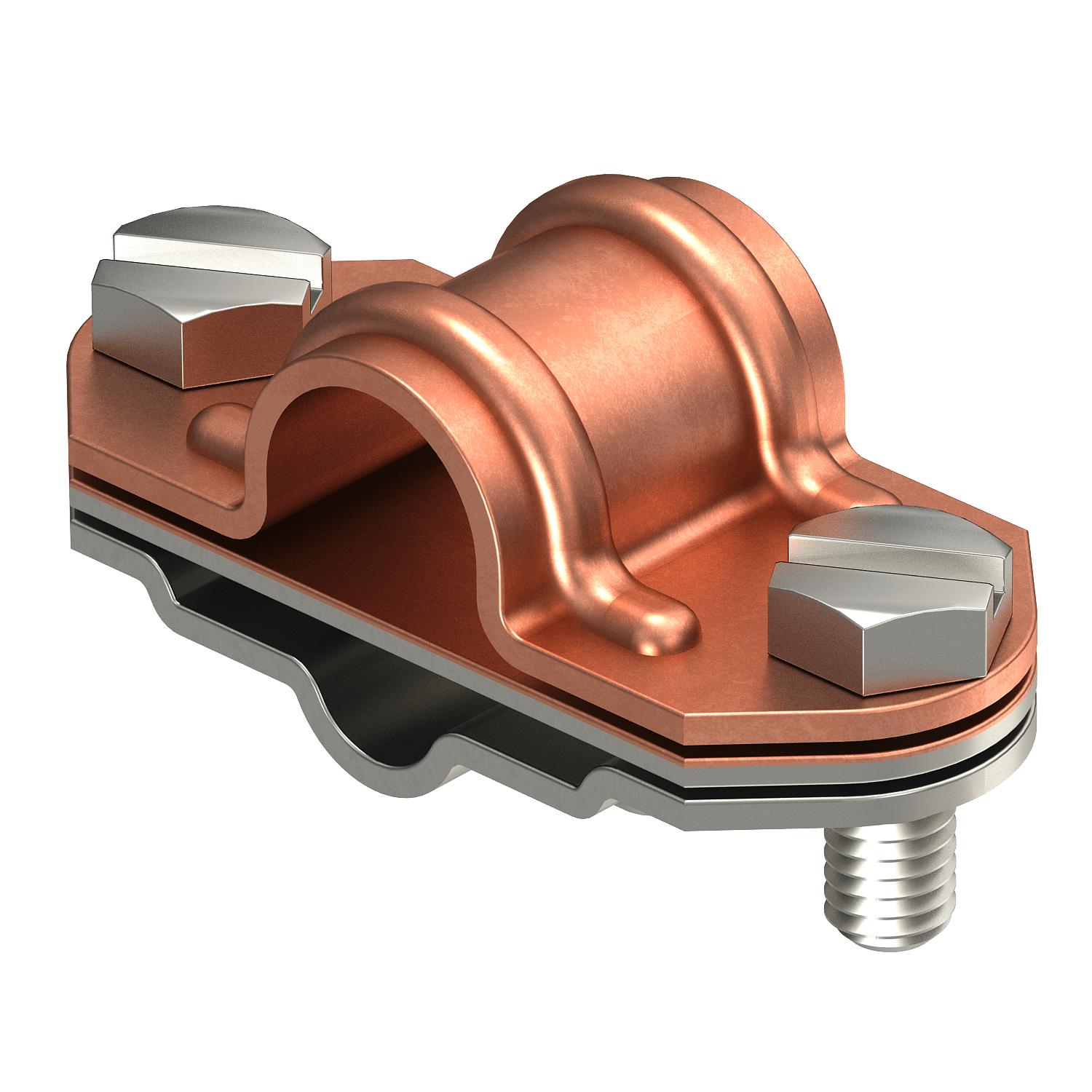

Universal bi-metal separating piece, Rd 16 copper, Rd 8-10 A2

Item no. 5336090 | EAN 4012195424451

5336090 / 226 ZV CU
Rd 8-10/FL30 x 16 mm
Product description

Product description

• Fit: Rd 8-10 x 16, FL 30 x Rd 16
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
Technical data

Technical data

Bimetal connector yes

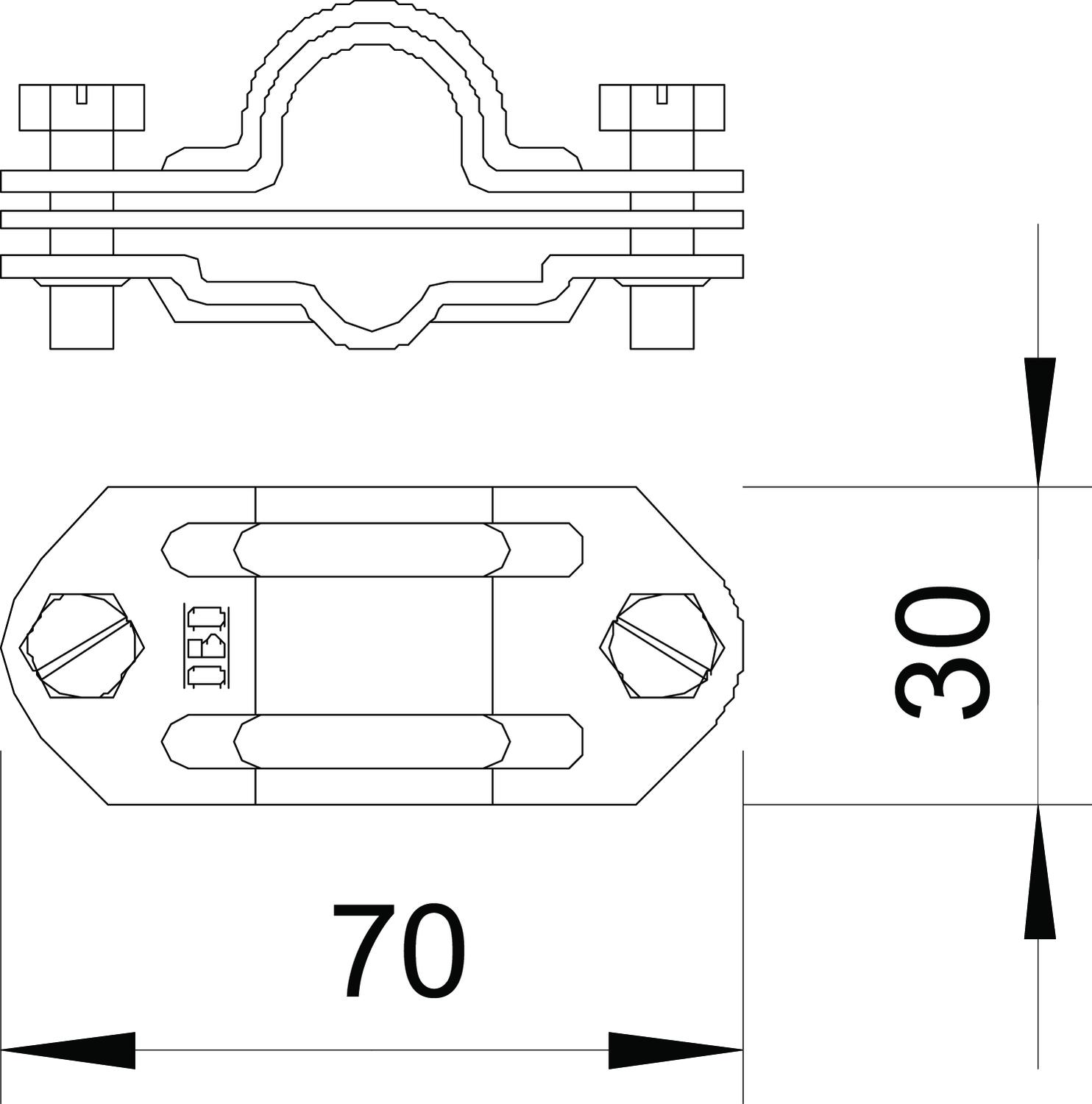

Dimension FL30/8-10x16
Fit Rd 8-10/FL30 x 16 mm
Intermediate plate yes
Material Stainless steel
Material lower part VA
Material upper part Cu
Suitable for connection Round conductor Rd 16 / flat conductor Fl 30
All types

All types

Types Fit Item no. Quantity SSU
226 ZV CU Rd 8-10/FL30 x 16 mm 5336090
10 piece
