Universal clamping block Rd 8−10 mm A2 Rd 8-10

morepic-1

morepic-2

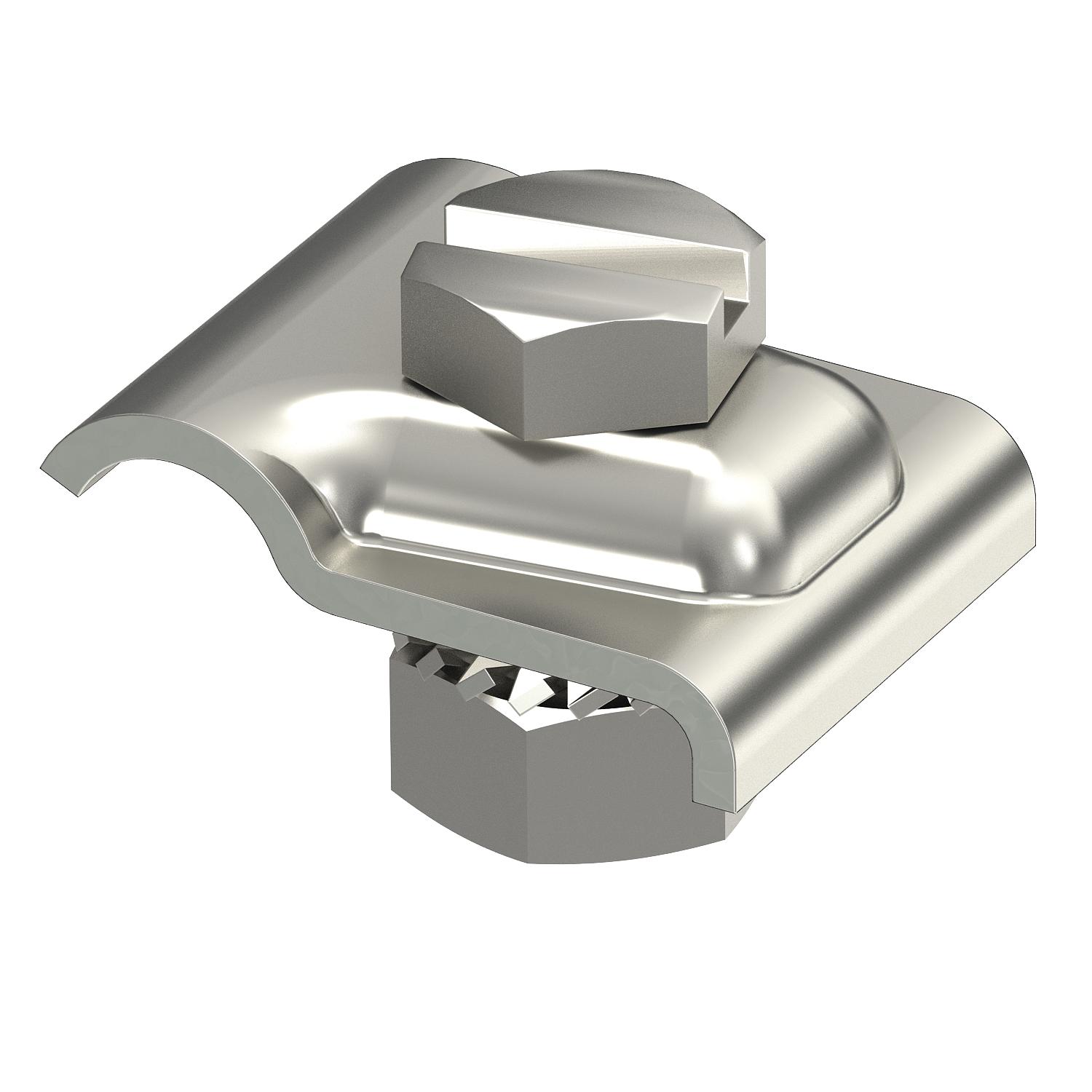

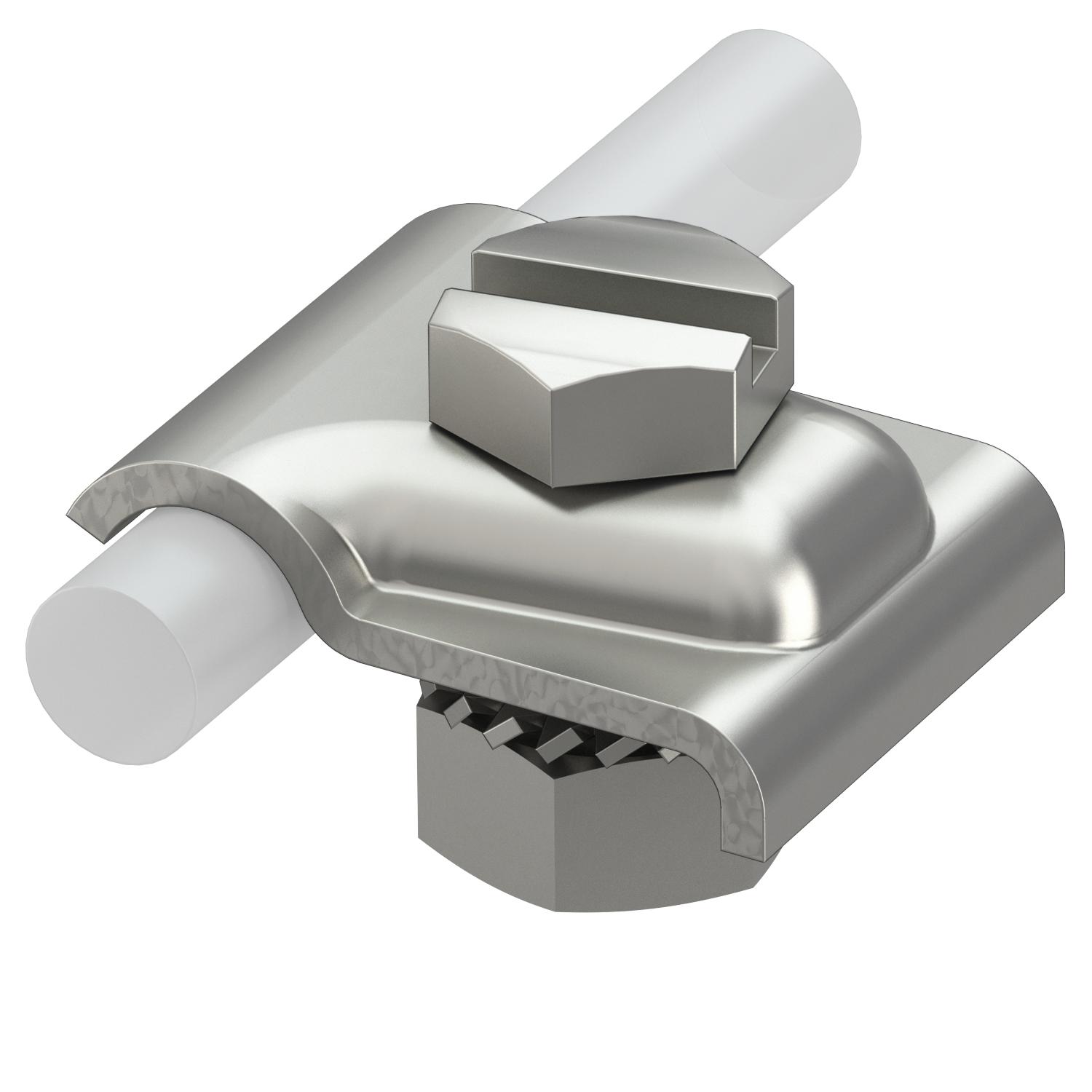

Universal clamping block Rd 8−10 mm A2

Item no. 5326311 | EAN 4012195422471

Item no. / Types	5326311 / 324 S-VA

Fit	Rd 8-10 mm

Product description

Product description

• Including hexagonal bolt M8 x 25, washer and nuts

Technical data

Technical data

Dimension	M8x25mm
Fit	Rd 8-10 mm
Material	Stainless steel

Type of connector	Terminal block
Type of fastening screw	Hexagonal bolt

All types

All types

Types	Fit	Item no.	Quantity	SSU
324 S-VA	Rd 8-10 mm	5326311	piece	10 piece

Downloads

Data sheet 324 S-VA / 5326311 , 0.20MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 324 S-VA / 5326311 , 0.06MB , pdf

Download

REACH Declaration of conformity 324 S-VA / 5326311 , 0.12MB , pdf

Download

RoHS Declaration of conformity 324 S-VA / 5326311 , 0.12MB , pdf

Download

Product graphic 324 S-VA / 5326311, 73.23 kB, jpg

Scale drawing 324 S-VA / 5326311, 52.99 kB, jpg

324 S-VA / 5326311

Universeller Klemmbock Rd 8-10 mm.rfa, 500.00 kB
