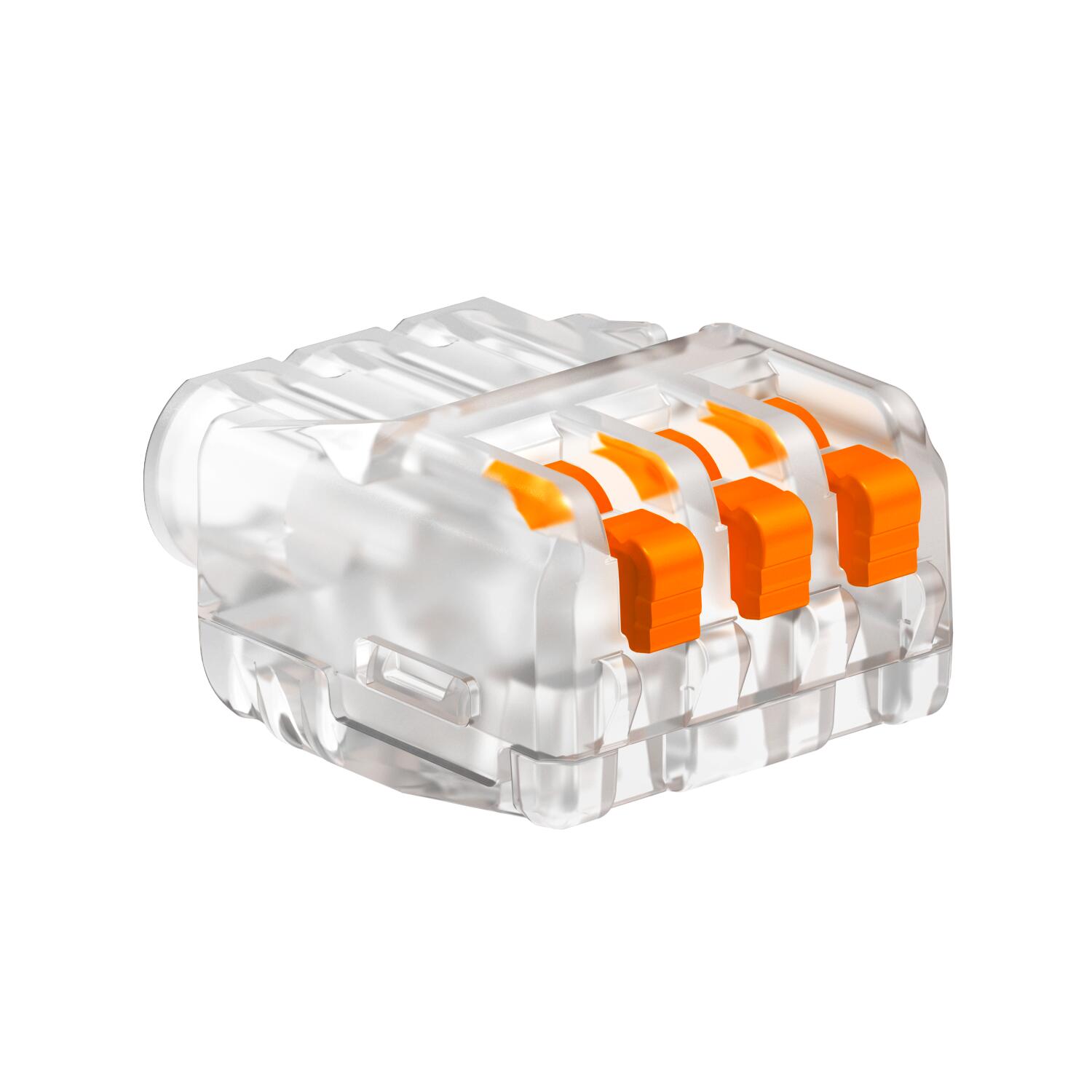

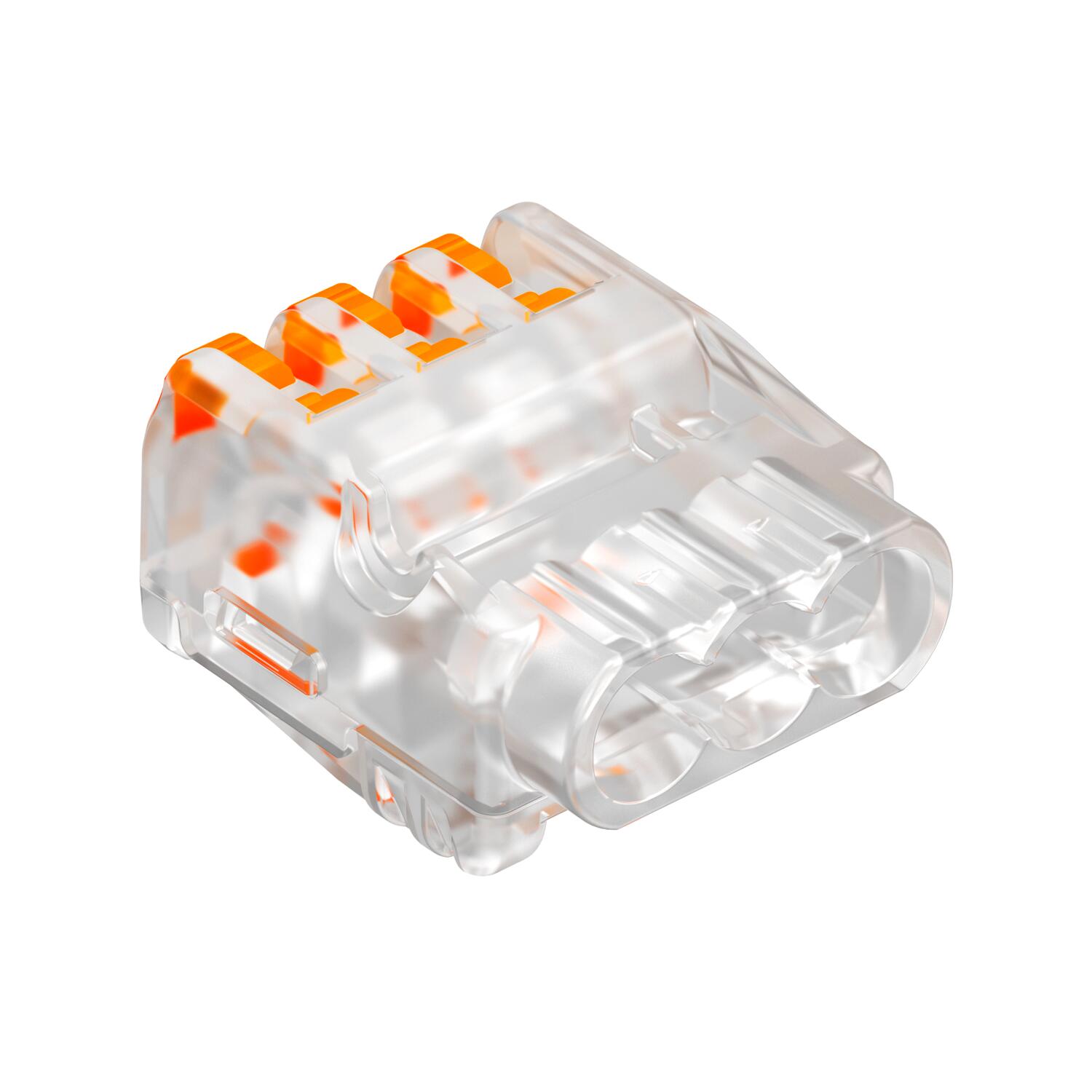

Product description
Tested according to EN 60998.
Screwless terminal to connect electrical conductors. The type of conductor can either be flexible, multi-wire or rigid.
If rigid conductors are used, an opening of the release lever is not necessary. The conductor can be plugged into the terminal directly.
To extract the conductors, simply open the release lever. The strand can then be easily pulled-out.
Nominal cross-section:
3 x 0.2 - 2.5 mm² multi-wire cables / single-wire conductors
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 9 mm (+1 mm).
Inspection opening: Phase tester and testing pin (max. Ø 2 mm), very easily accessible on the top side of the terminal
Max. approved ambient temperature according to EN 60998: 85 °C.
- Technical data
-
Technical data

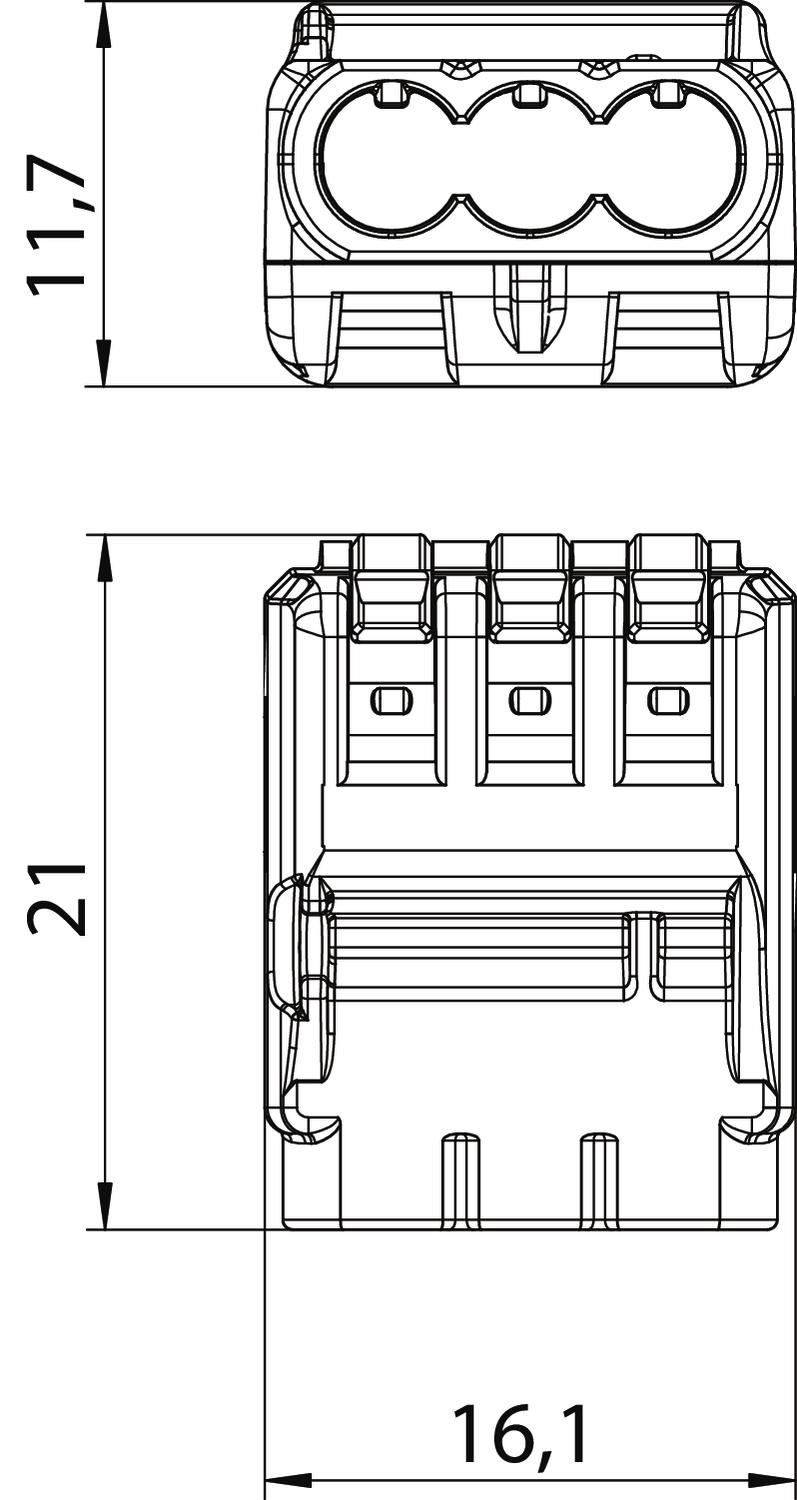

Colour Transparent Connectable conductor cross-section, multi-wire, max. 2,5 mm² Connectable conductor cross-section, multi-wire, min. 0,2 mm² Connectable conductor cross-section, single-wire, max. 2,5 mm² Connectable conductor cross-section, single-wire, min. 0,2 mm² Cross-section 3 x 0.2 - 2.5 mm² multi-wire cables / single-wire conductors mm² Dimension 0,2-2,5mm² Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Height 11,7 mm Insulation material Thermoplast Length 16,1 mm Material Polycarbonate No. of terminals 3 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 0,2 mm² Nominal current 24 A Nominal voltage 450 V Permitted temperature range, max. 85 °C Permitted temperature range, min. -5 °C Pole number 1 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Width 21 mm With actuating levers yes - All types
- Downloads
-
Data sheet 61 325 FL / 2054454 , 0.27MB , pdfREACH Declaration of conformity 61 325 FL / 2054454 , 0.12MB , pdfRoHS Declaration of conformity 61 325 FL / 2054454 , 0.12MB , pdf
