Universal separating piece A2 Rd 8-10/FL30 x 16
morepic-1 morepic-2 video-1

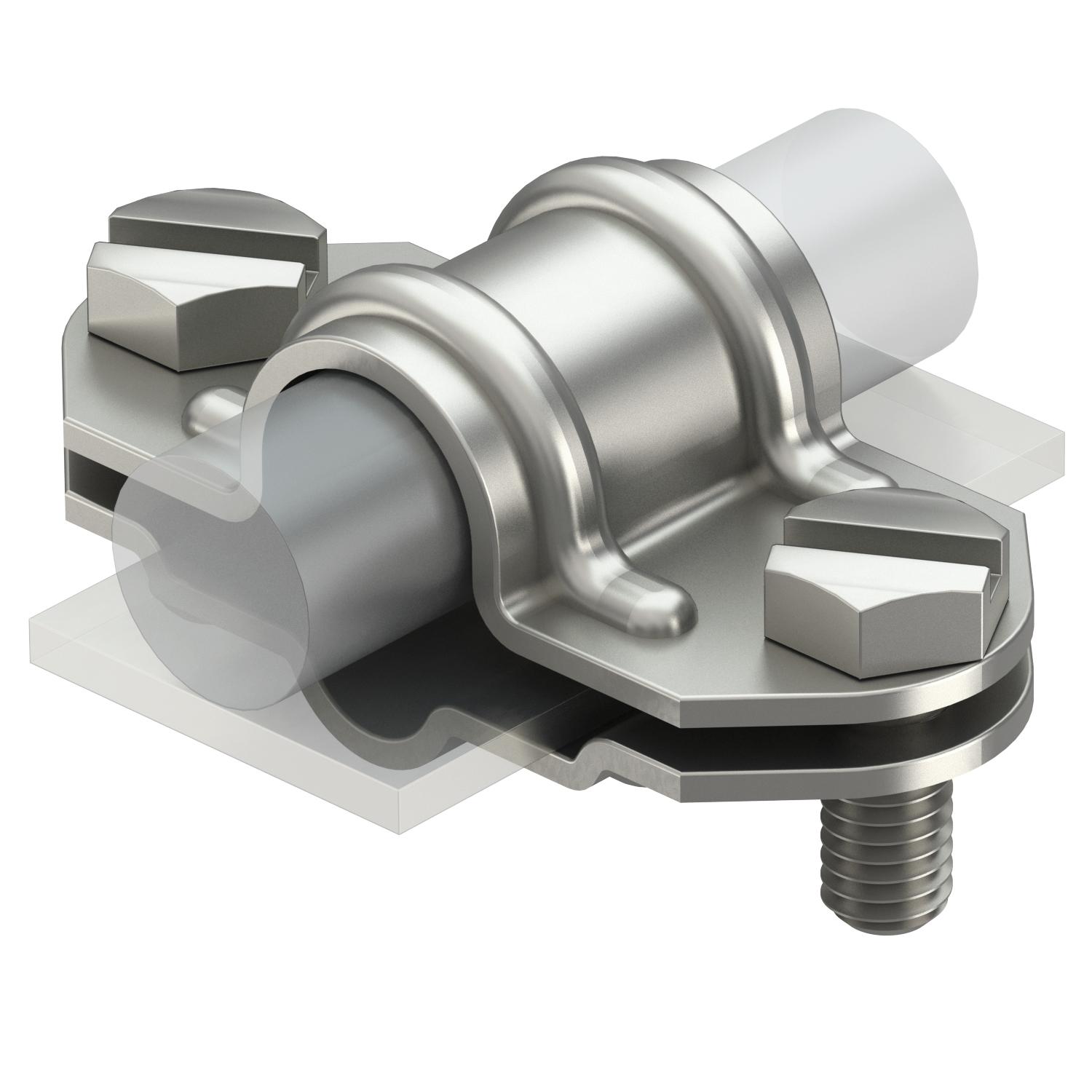

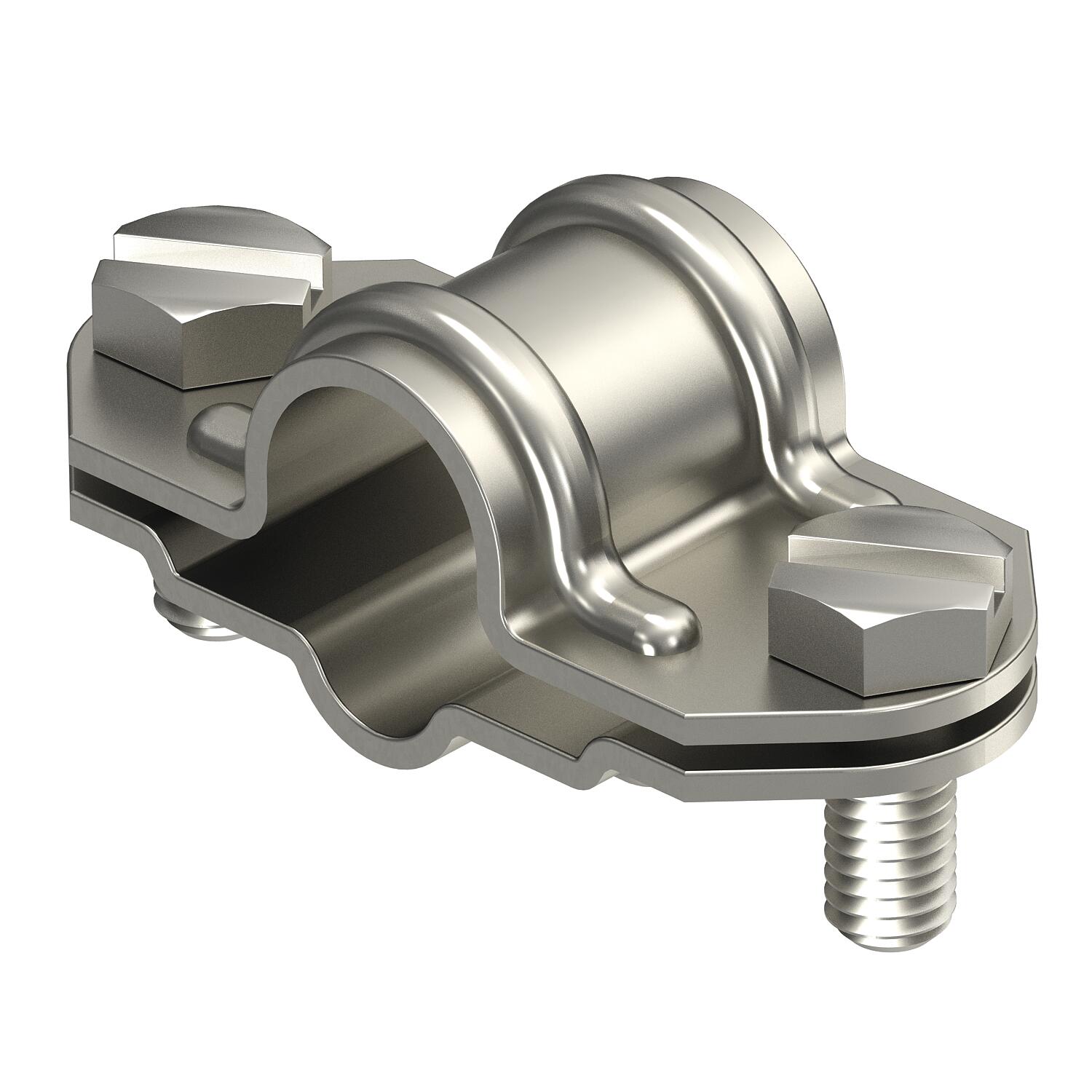

Universal separating piece A2

Item no. 5336058 | EAN 4012195424338

5336058 / 226 VA
Rd 8-10/FL30 x 16 mm
Product description
Product description
• For fitting round conductors Rd 8−10 to Rd 16 or flat conductors FL30
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Bimetal connector no
Dimension 8-10mm
Fit Rd 8-10/FL30 x 16 mm
Intermediate plate no
Material Stainless steel
Suitable for connection Miscellaneous
All types

All types

Types Fit Item no. Quantity SSU
226 VA Rd 8-10/FL30 x 16 mm 5336058
10 piece
