Universal separating piece Cu Rd 8-10/FL30 x 16
morepic-1 morepic-2 video-1

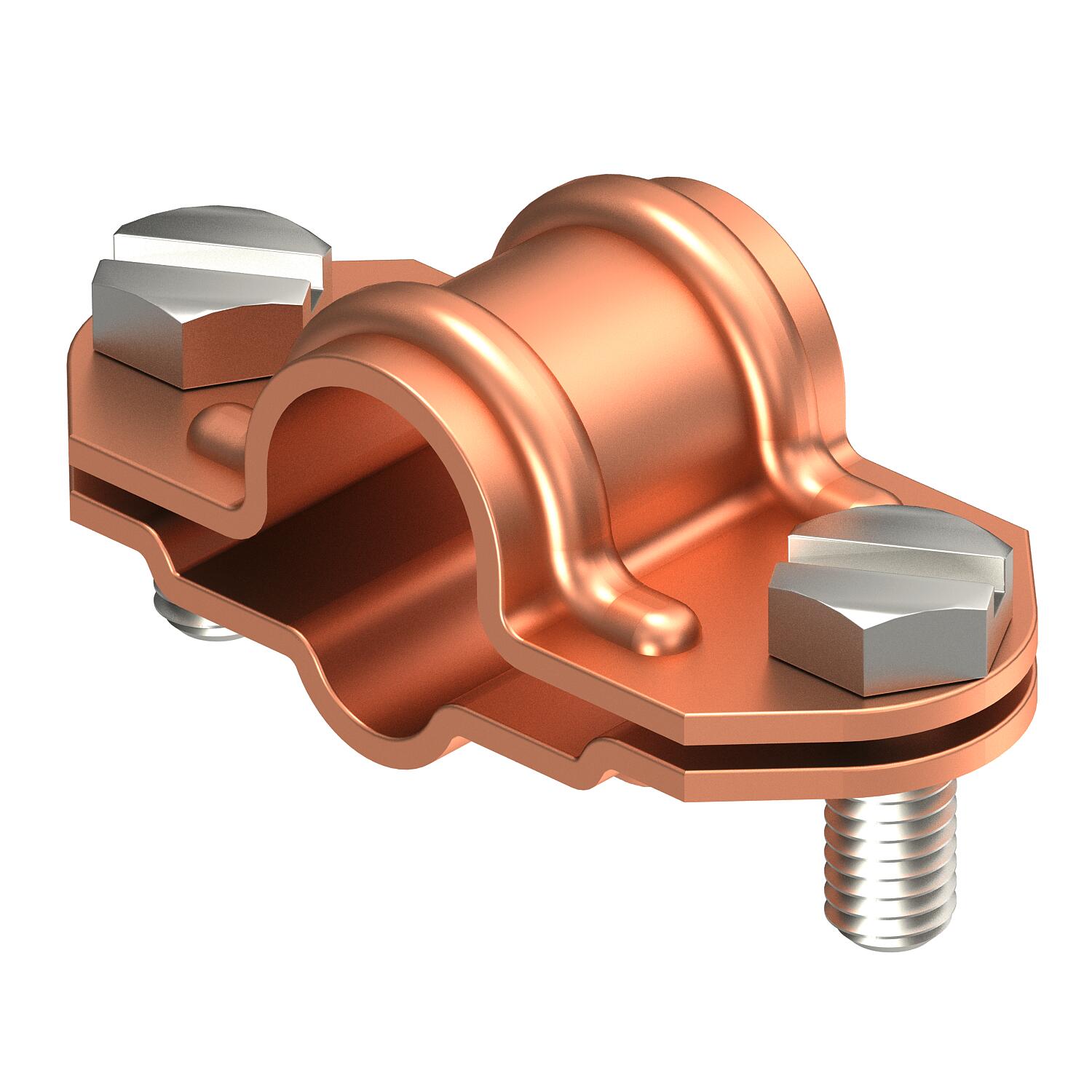

Universal separating piece Cu

Item no. 5336023 | EAN 4012195424277

5336023 / 226 CU
Rd 8-10/FL30 x 16 mm
Product description
Product description

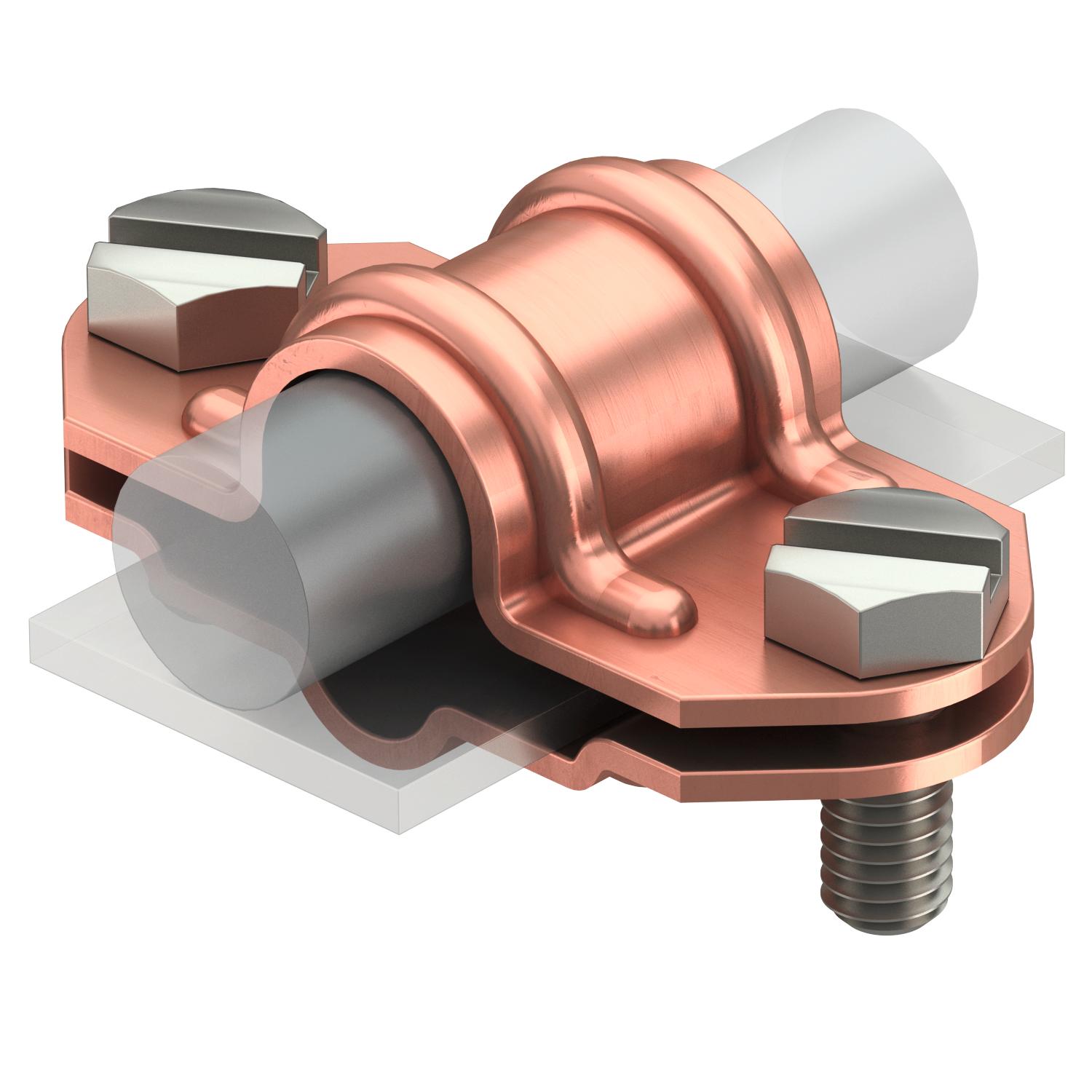

• For fitting round conductors Rd 8−10 to Rd 16 or flat conductors FL30
• Including 2 hexagonal bolts M8 x 20 high-grade stainless steel (V2A)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Bimetal connector no
Dimension 8-10mm

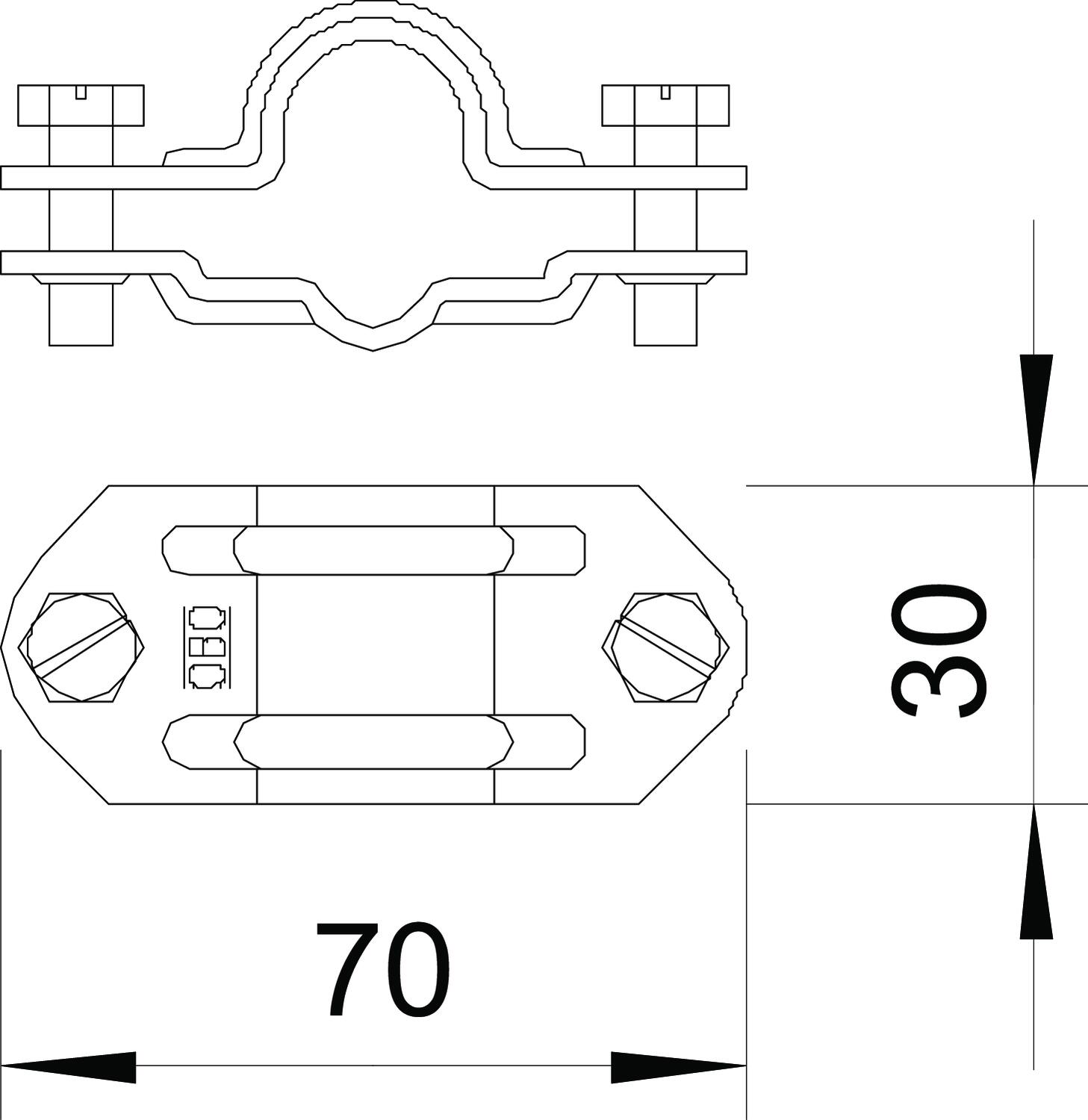

Fit Rd 8-10/FL30 x 16 mm
Intermediate plate no
Material Copper
Suitable for connection Miscellaneous
All types

All types

Types Fit Item no. Quantity SSU
226 CU Rd 8-10/FL30 x 16 mm 5336023
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 226 CU / 5336023 , 0.06MB , pdf
Download

226 CU / 5336023
