Unperforated cover DD

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

Cover for cable trays and mesh cable trays.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Colour	zinc

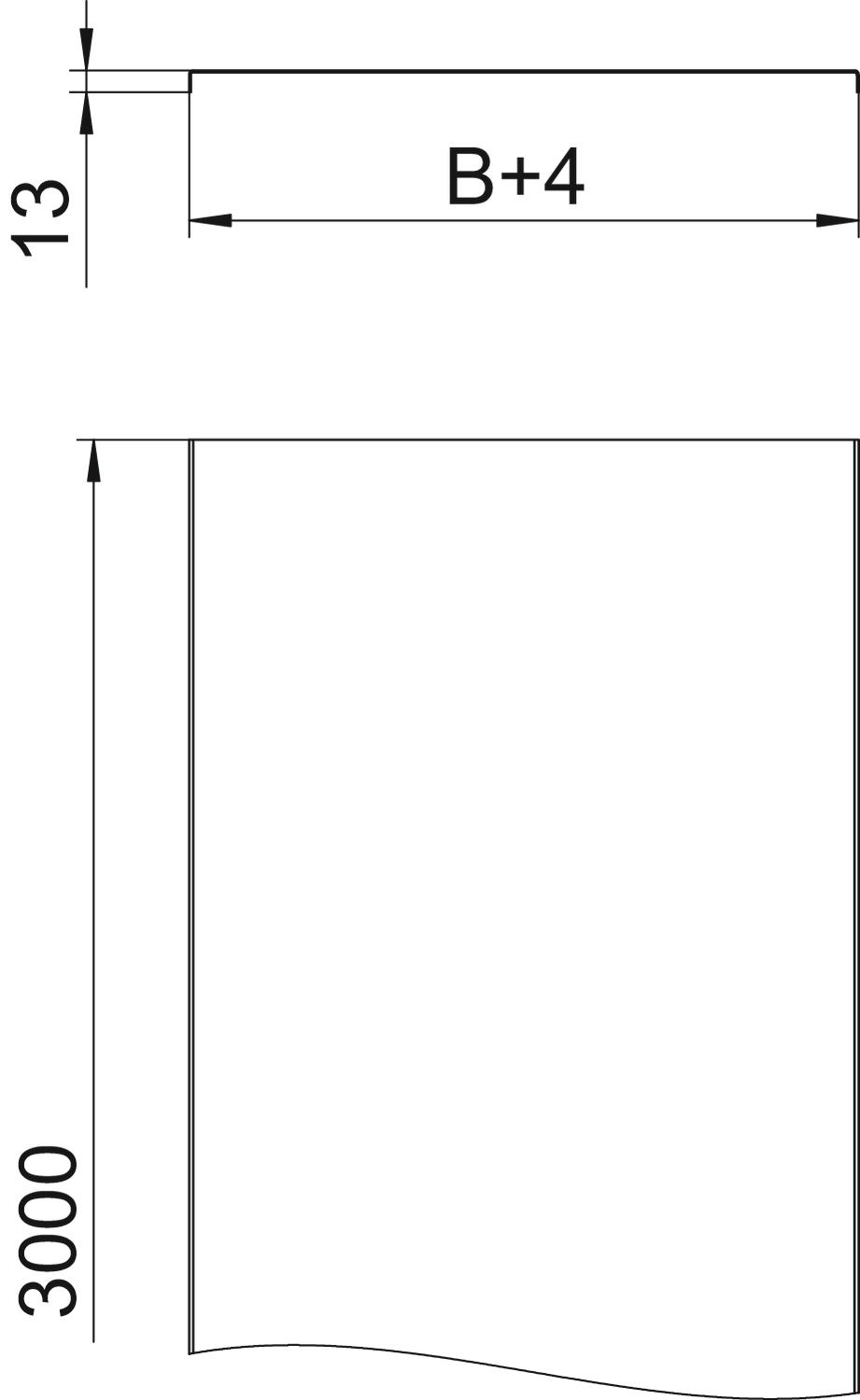

Dimension	50x3000
Dimension B	50 mm
Dimension H	15 mm
Fastening type	Cover clamp
Height	13 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Plate thickness	0,03 in
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	50 mm
Width	2 in

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRLU 050 DD	3000 mm	50 mm	1 mm	6052640	m	3 m
DRLU 100 DD	3000 mm	100 mm	1 mm	6052643	m	3 m
DRLU 150 DD	3000 mm	150 mm	1 mm	6052647	m	3 m
DRLU 200 DD	3000 mm	200 mm	1 mm	6052650	m	3 m
DRLU 300 DD	3000 mm	300 mm	1 mm	6052656	m	3 m
DRLU 400 DD	3000 mm	400 mm	1 mm	6052662	m	3 m
DRLU 500 DD	3000 mm	500 mm	1.5 mm	6052668	m	3 m
DRLU 550 DD	3000 mm	550 mm	1.5 mm	6052671	m	3 m
DRLU 600 DD	3000 mm	600 mm	1.5 mm	6052674	m	3 m
