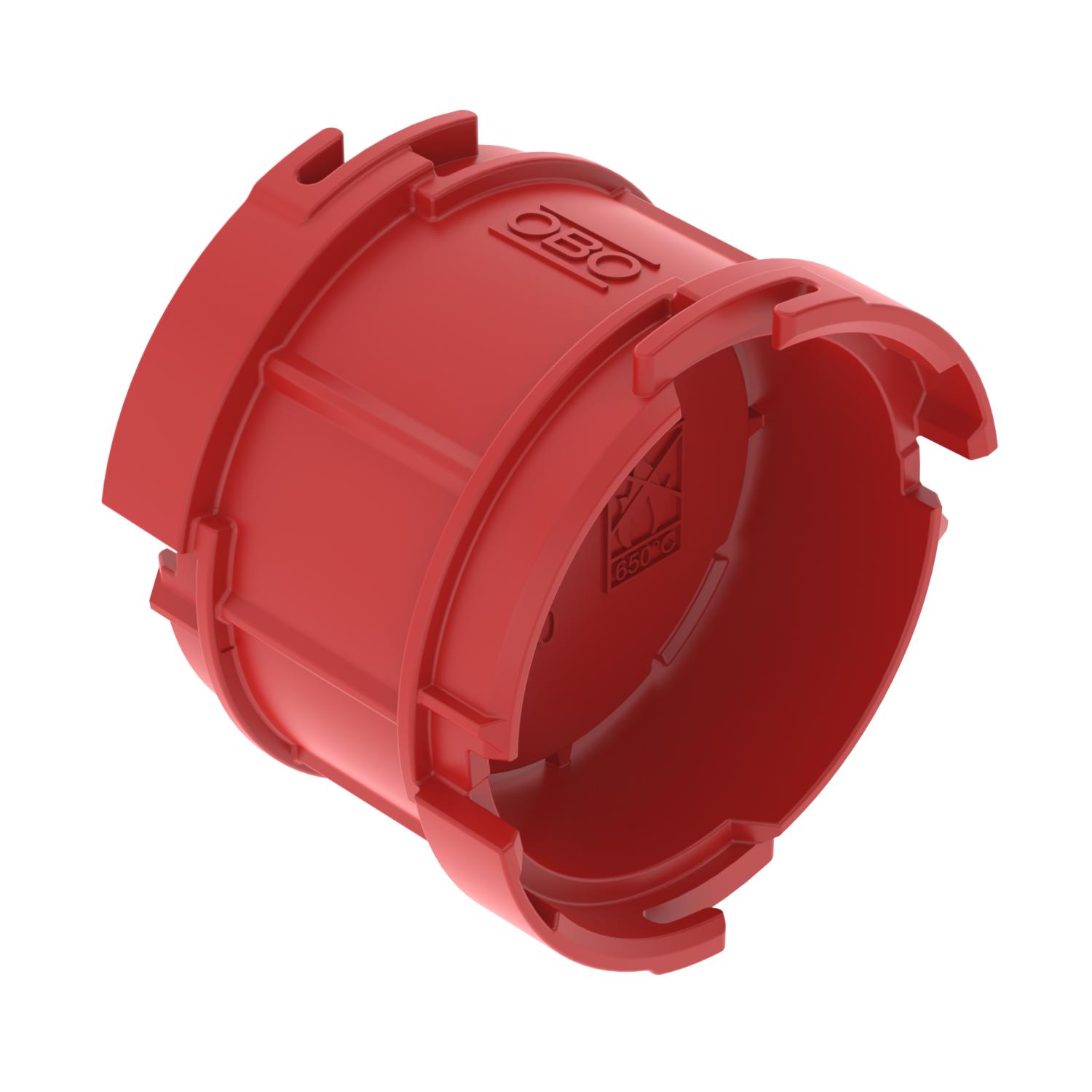

UP Distance connector
Item no. 2003746 | EAN 4012196700813
- Product description
-
Product descriptionDistance connector with bayonet lock for the stable combination of multiple flush-mounted device boxes. To expand the standard centre spacing of 71 mm by 20 mm.
-
- Technical data
-
Technical data

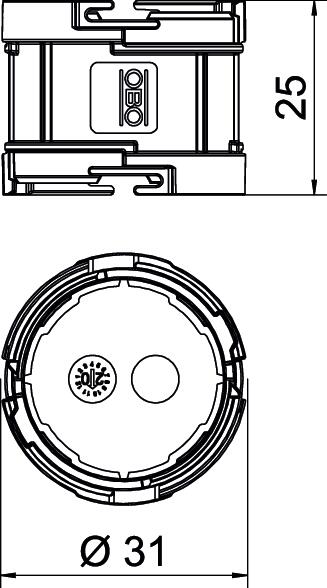

Accessories yes Colour Signal red Diameter 31 mm Diameter, interior 25 mm Dimension 20mm Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C Halogen-free yes Length 25 mm Material Polystyrene Protection rating IP30 Spare part no Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet ZU 20-AS / 2003746 , 0.22MB , pdfEU declaration of conformity ZU 20-AS / 2003746 , 0.13MB , pdfREACH Declaration of conformity ZU 20-AS / 2003746 , 0.12MB , pdfRoHS Declaration of conformity ZU 20-AS / 2003746 , 0.13MB , pdfMounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
