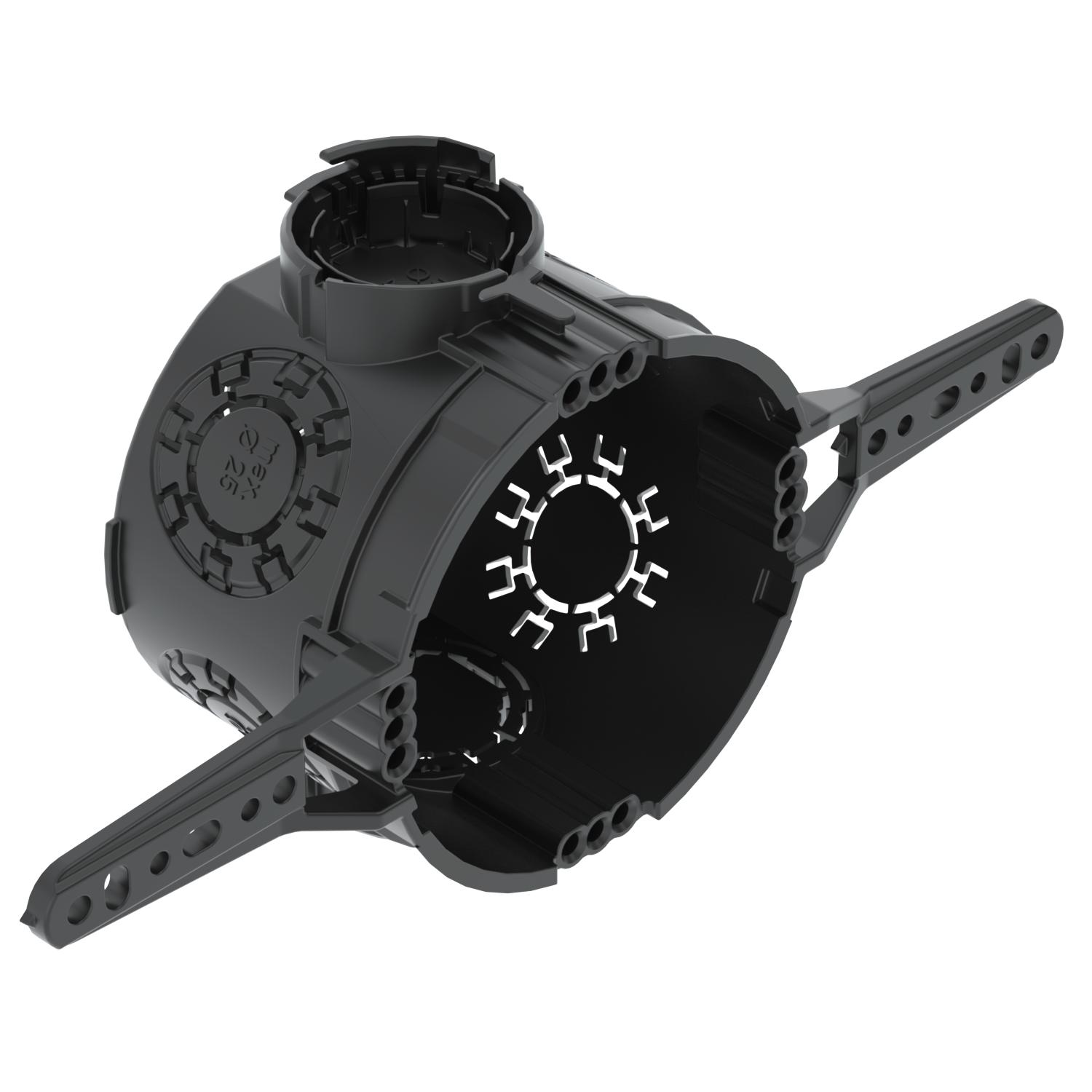

UP Flush-mounted device box 46, with nail straps 46 | 60 | 20/25 mm | 7

UP Flush-mounted device box 46, with nail straps

Item no. 2003714 | EAN 4012196700820

Item no. / Types	2003714 / UG 46-NL

Height	46 mm

Diameter	60 mm

for pipe diameter	20/25 mm

No. of entries	7

Product description

Product description

Flush-mounted device box with nail straps, for use in masonry with an installation depth of at least 46 mm.

• 4 x 3 screw domes
• Connector with bayonet lock, couplable on both sides
• 6 combination pipe insertions of Ø 20 and 25 mm
• 1 entry up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
Colour	Jet black
Combination entries Ø 20 / 25 mm	6
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,081 kg CO₂e / 1 Piece
Device fixing	Screws or spreading claws
Diameter	60 mm

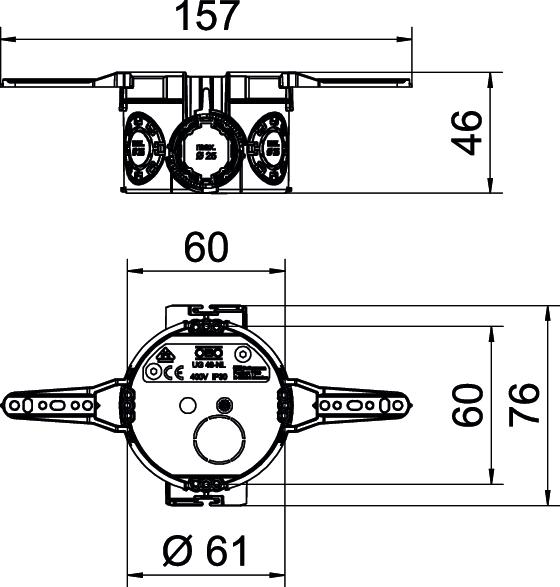

Dimension	Ø60mm, H46mm
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	46 mm

Impact-resistant	yes
Material	Polypropylene
No. of entries	7
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	1
Protection rating	IP30
Rated voltage	400 V
Shape	Round
Type of housing penetration	Break-out opening
Type of insertion…	NYM cables, data cables and corrugated pipes
With bolts	no
With nail strap	yes

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
UG 46-NL	46 mm	60 mm	20/25 mm	7	2003714	piece	200 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

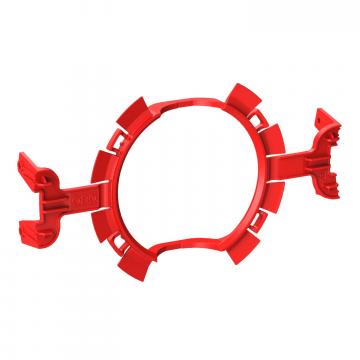

UP Quick-Fix	ZU 60-QF	2003740	piece	500 piece

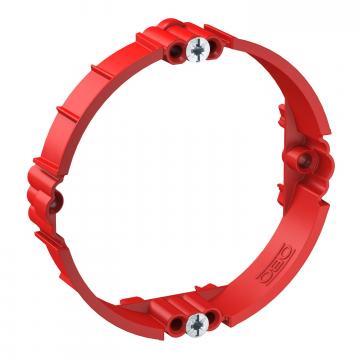

UP Plaster compensation ring 12 mm, flush-mounted device box	ZU 12-PR	2003742	piece	1000 piece

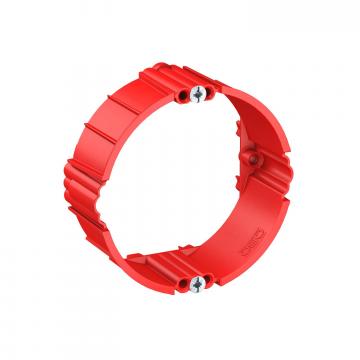

UP Plaster compensation ring 24 mm, flush-mounted device box	ZU 24-PR	2003744	piece	500 piece

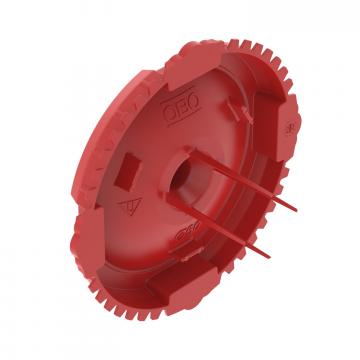

UP Signal cover flush-mounted boxes, single	ZU 60-SD	2003760	piece	1250 piece
UP Distance connector	ZU 20-AS	2003746	piece	200 piece
