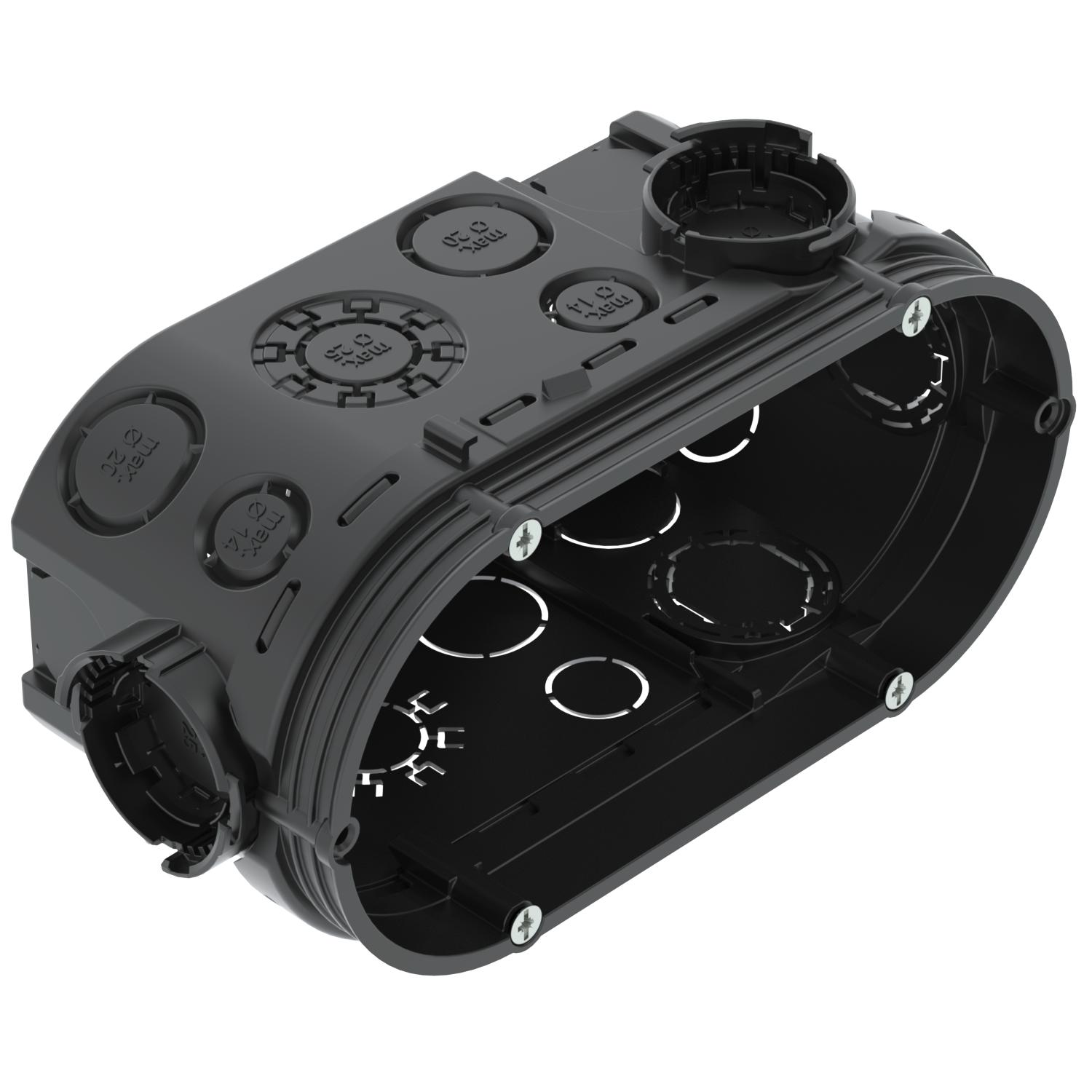

UP Flush-mounted device connection box 66, double version
Item no. 2003720 | EAN 4012196959082
- Product description
-
Product descriptionDouble flush-mounted device box, for use in masonry with an installation depth of at least 66 mm.
• With 4 connectors with bayonet lock, couplable on both sides
• 6 combination pipe entries of Ø 20 and 25 mm
• 8 entries up to Ø 20 mm
• 6 entries up to Ø 14 mm
• 2 entries up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

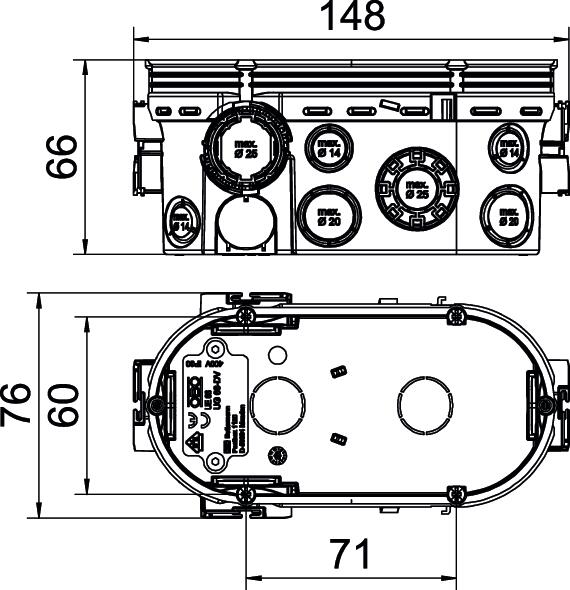

Airtight no Colour Jet black Combination entries Ø 20 / 25 mm 6 Cover Without Cover fastening Screws , CO₂ Footprint (GWP) Cradle-to-Gate 0,323 kg CO₂e / 1 Piece Device fixing Screws or spreading claws Dimension 2x Ø60xH66mm Entry from rear yes Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C for pipe diameter 20/25 mm Halogen-free yes Height 66 mm Impact-resistant yes Length 148 mm Material Polypropylene No. of entries 22 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Pipe entries Ø 20 mm 10 Protection rating IP30 Rated voltage 400 V Shape Oval Type of housing penetration Break-out opening Type of insertion… NYM cables, data cables and corrugated pipes Width 60 mm - All types
