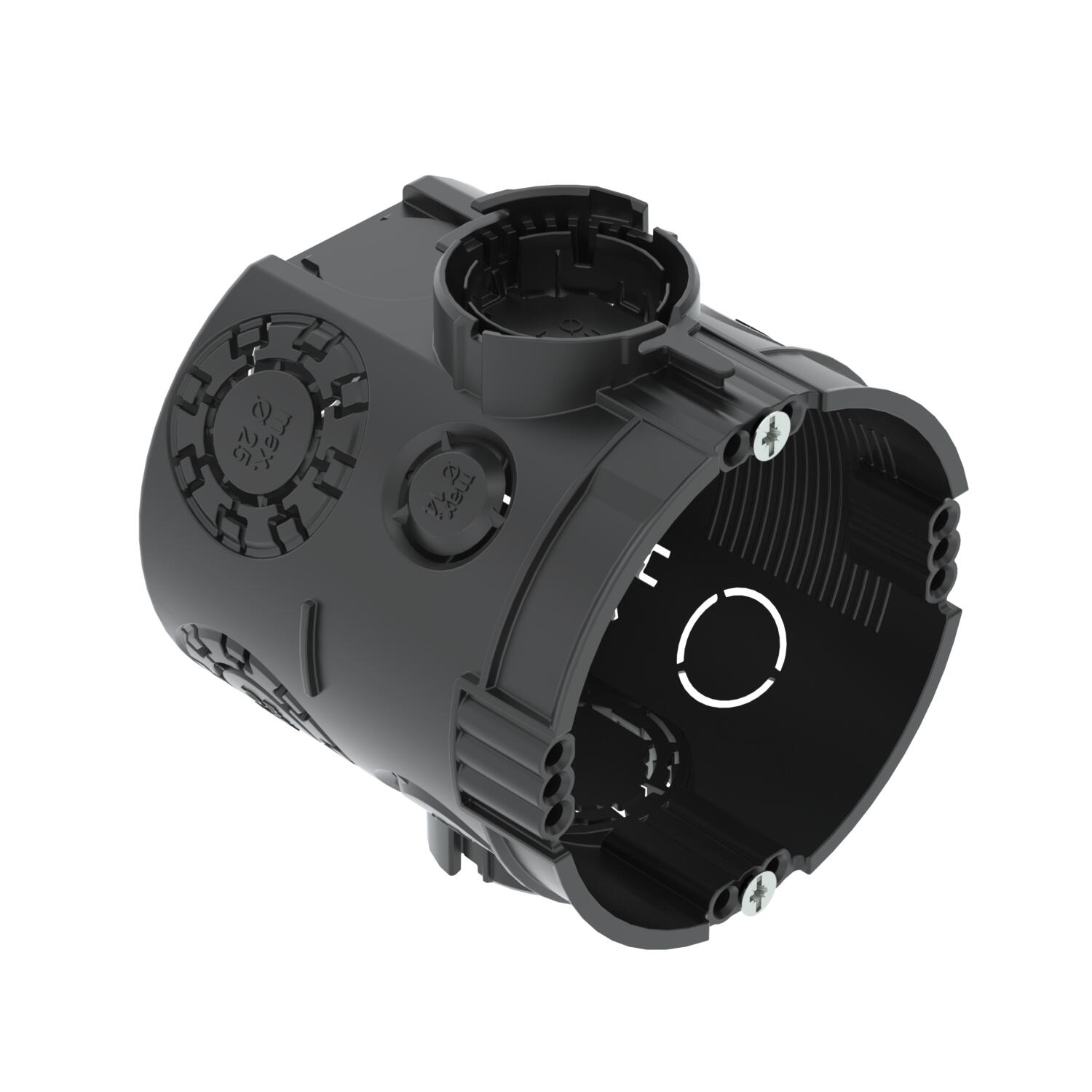

UP Flush-mounted device connection box, with device screws
Item no. 2003703 | EAN 4012196689927
- Product description
-
Product descriptionFlush-mounted device box, for use in masonry with an installation depth of at least 66 mm.
• 4 x 3 screw domes
• 2 pre-mounted device screws
• Connector with bayonet lock, couplable on both sides
• 6 combination pipe entries of Ø 20 and 25 mm
• 4 entries up to Ø 20 mm
• 2 entries up to Ø 14 mm
• 1 entry up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

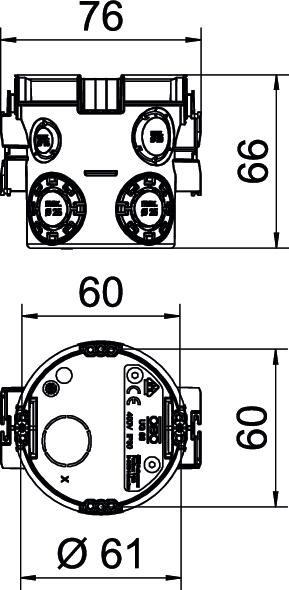

Airtight no Colour Jet black Combination entries Ø 20 / 25 mm 6 Cover Without Cover fastening Screws , CO₂ Footprint (GWP) Cradle-to-Gate 0,0906 kg CO₂e / 1 Piece Device fixing Screws or spreading claws Diameter 60 mm Dimension Ø60mm, H66mm Entry from rear yes Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C for pipe diameter 20/25 mm Halogen-free yes Height 66 mm Impact-resistant yes Material Polypropylene No. of entries 13 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Pipe entries Ø 20 mm 3 Protection rating IP30 Rated voltage 400 V Shape Round Type of housing penetration Break-out opening Type of insertion… NYM cables, data cables and corrugated pipes With bolts yes With nail strap no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
UP Quick-Fix
ZU 60-QF 2003740 500 piece
UP Plaster compensation ring 12 mm, flush-mounted device box
ZU 12-PR 2003742 1000 piece
UP Plaster compensation ring 24 mm, flush-mounted device box
ZU 24-PR 2003744 500 piece
UP Signal cover flush-mounted boxes, single
ZU 60-SD 2003760 1250 piece
UP Distance connector
ZU 20-AS 2003746 200 piece - Downloads
-
EU declaration of conformity UG 66-GS / 2003703 , 0.13MB , pdfLabel approval VDE symbol approval, UG 66 , 0.34MB , pdfMounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
