UP Flush-mounted electronics box 46, rectangular, with clamping area to the side 50 | 61 | 20/25 mm | 16

UP Flush-mounted electronics box 46, rectangular, with clamping area to the side

Item no. 2003725 | EAN 4012196863815

Item no. / Types	2003725 / UE 46

Height	50 mm

Diameter	61 mm

for pipe diameter	20/25 mm

No. of entries	16

Product description

Product description

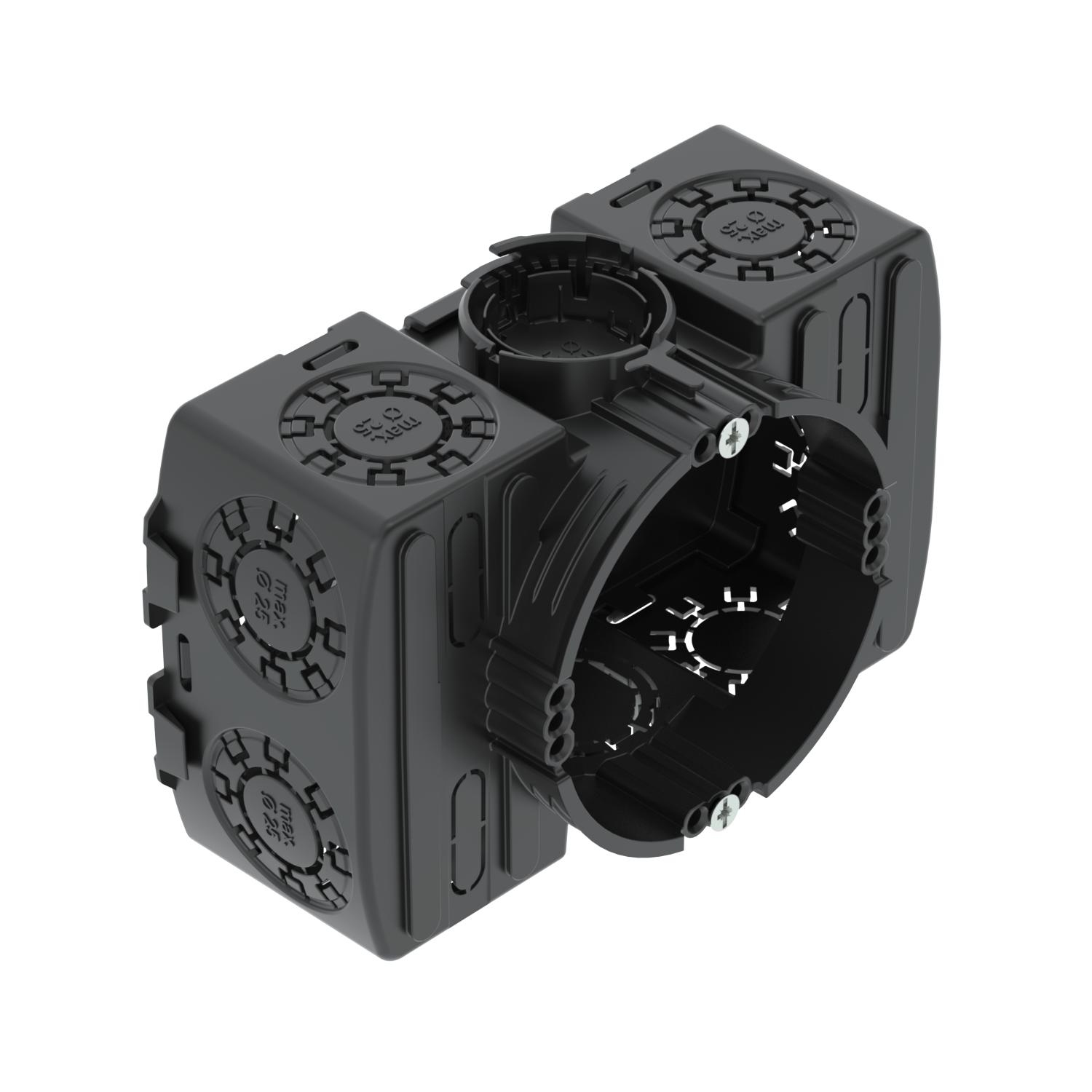

Flush-mounted electronics box, with side clamping space, rectangular shape, for use in masonry with an installation depth of at least 50 mm.

• Connector with bayonet lock, couplable on both sides

• 10 combination pipe entries of Ø 20 and 25 mm

• 2 entries up to Ø 20 mm in the base

• 4 entries for flat cables/ribbon cables

• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Accessory screw clearance	60 mm
Airtight	no
Colour	Jet black
Combination entries Ø 20 / 25 mm	10
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,2401 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	61 mm

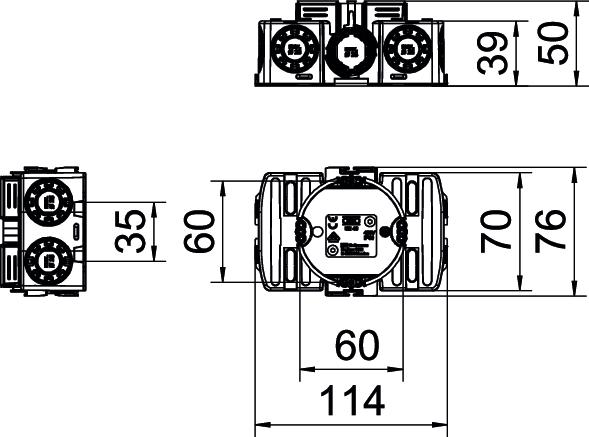

Dimension	Ø60xH50x114
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	50 mm

Impact-resistant	yes
Length	114 mm
Material	Polypropylene
No. of entries	16
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	2
Protection rating	IP30
Rated voltage	400 V
Shape	Rectangular
Type of housing penetration	Break-out opening
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	76 mm
With bolts	yes
With nail strap	no

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
UE 46	50 mm	61 mm	20/25 mm	16	2003725	piece	100 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
UP Plaster compensation ring 12 mm, flush-mounted device box	ZU 12-PR	2003742	piece	1000 piece
UP Plaster compensation ring 24 mm, flush-mounted device box	ZU 24-PR	2003744	piece	500 piece
UP Signal cover flush-mounted boxes, single	ZU 60-SD	2003760	piece	1250 piece
