UP Flush-mounted electronics box 66, additional clamping space 66 | 60 | 20/25 mm | 22

UP Flush-mounted electronics box 66, additional clamping space

Item no. 2003726 | EAN 4012196856565

Item no. / Types	2003726 / UE 66

Height	66 mm

Diameter	60 mm

for pipe diameter	20/25 mm

No. of entries	22

Product description

Product description

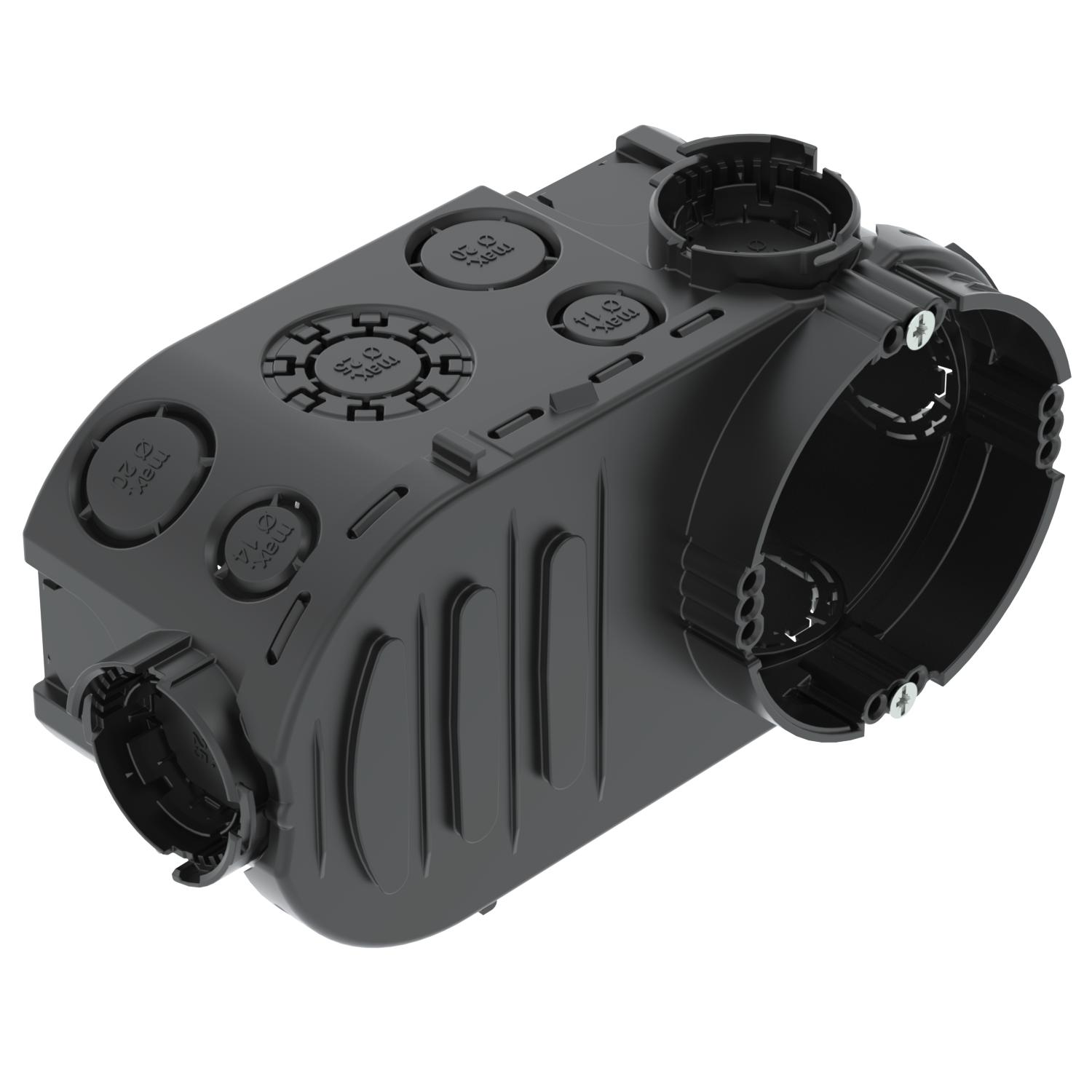

Flush-mounted electronics box, with additional terminal area, for use in masonry with an installation depth of at least 66 mm.

• With 4 couplable connectors with bayonet lock

• 6 combination pipe entries of Ø 20 and 25 mm

• 8 entries up to Ø 20 mm

• 6 entries up to Ø 14 mm

• 2 entries up to Ø 20 mm in the base

• Partition for different voltages, with break-out openings

• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
Colour	Jet black
Combination entries Ø 20 / 25 mm	6
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,3613 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	60 mm

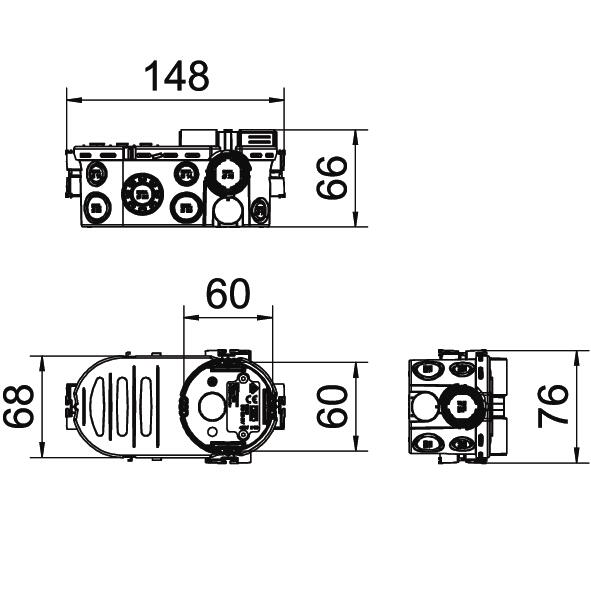

Dimension	Ø60xH66x148
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	66 mm
Impact-resistant	yes

Length	148 mm
Material	Polypropylene
Max. Conductor cross-section	2,5 mm²
No. of entries	22
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	10
Protection rating	IP30
Rated voltage	400 V
Shape	Oval
Type of housing penetration	Break-out opening
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	76 mm
With bolts	yes
With nail strap	no

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
UE 66	66 mm	60 mm	20/25 mm	22	2003726	piece	80 piece
