UP Plaster compensation ring 12 mm, flush-mounted device box
morepic-1 morepic-2

UP Plaster compensation ring 12 mm, flush-mounted device box

Item no. 2003742 | EAN 4012196715732

Product description
Product description

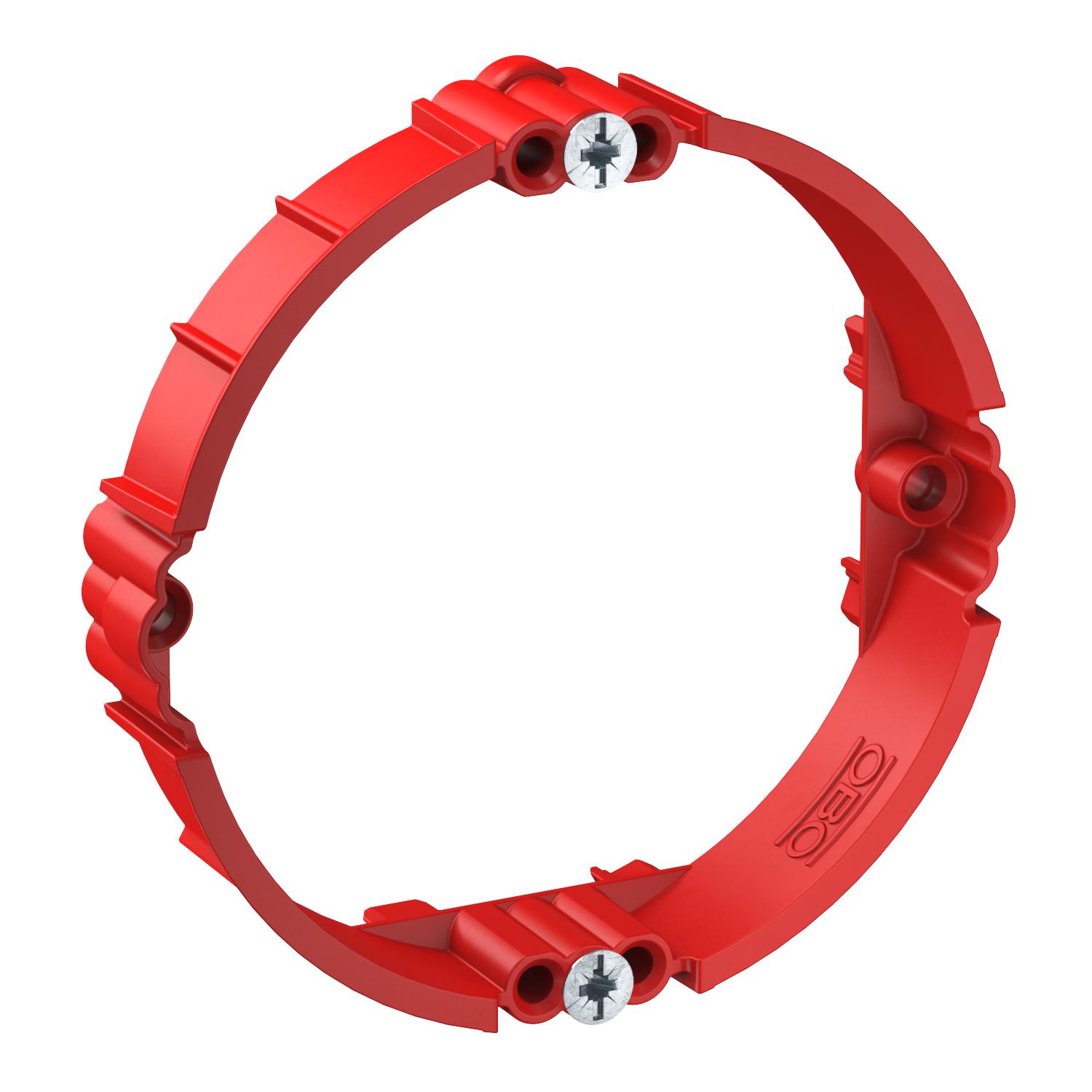

Plaster compensation ring for Ø 60 mm flush-mounted box, to screw on.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Diameter 60 mm
Technical data

Technical data

Colour Signal red
Diameter 68 mm

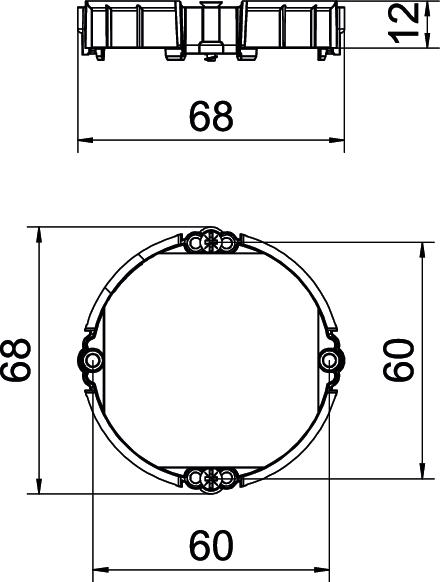

Dimension Ø60mm, H12mm
Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
Halogen-free yes
Height 12 mm
Impact-resistant yes
Material Polystyrene
With bolts yes
All types

All types

Types Mounting type Item no. Quantity SSU
UG 60 PA 12 Concealed 2003287
250 piece
ZU 12-PR - 2003742
1000 piece
Downloads

Download

Download

REACH Declaration of conformity ZU 12-PR / 2003742 , 0.12MB , pdf
Download
RoHS Declaration of conformity ZU 12-PR / 2003742 , 0.13MB , pdf
Download

Download

ZU 12-PR / 2003742
