UP Quick-Fix
morepic-1 morepic-2

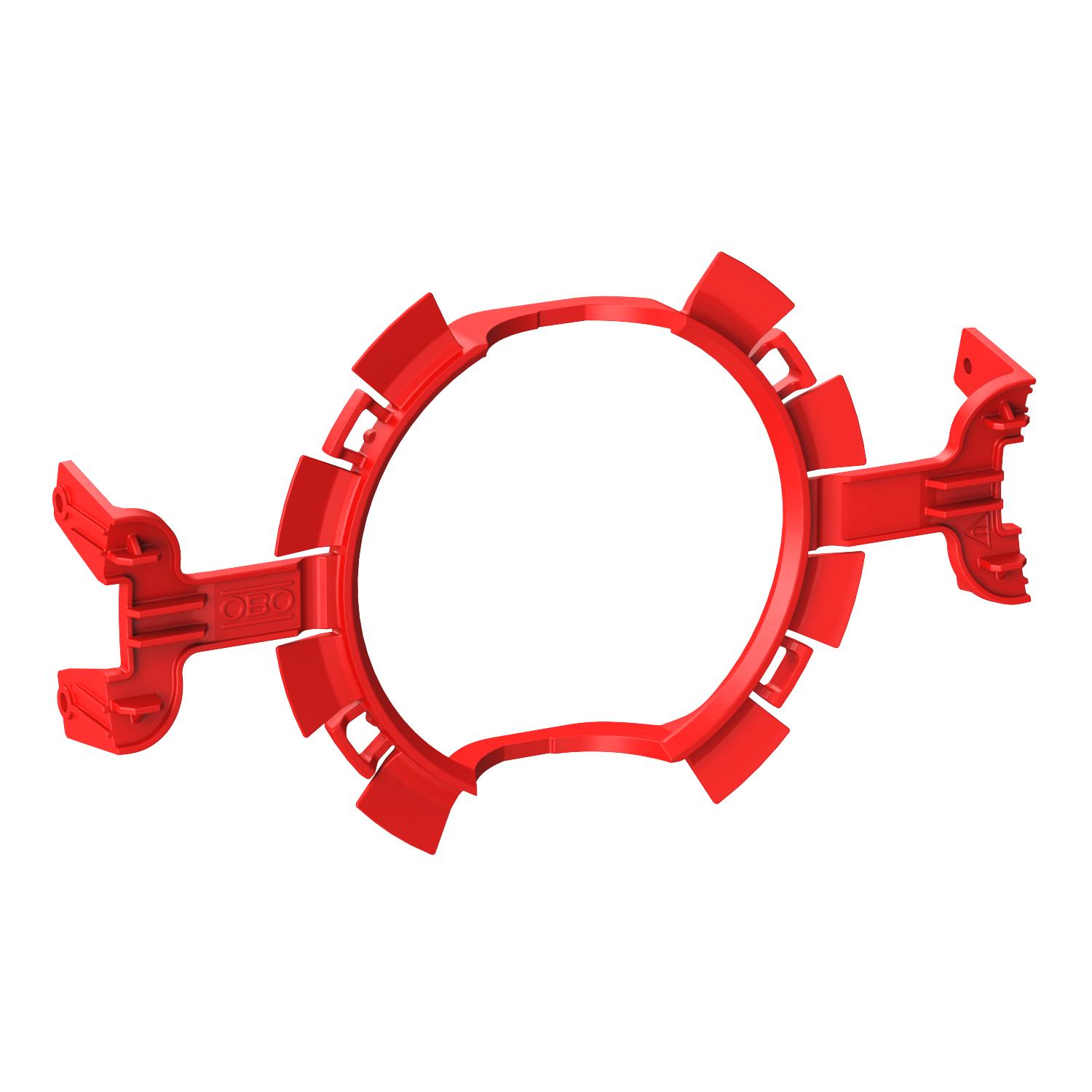

UP Quick-Fix

Item no. 2003740 | EAN 4012196700806

Product description
Product description
Quick fixing through clamping of flush-mounted device boxes Ø 60 mm, instead of plastering or sticking.

For openings with a diameter of 80 mm. Not suitable for the use with thin plaster.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Diameter 60 mm
Technical data

Technical data

Colour Signal red
Diameter 60 mm
Diameter, interior 60 mm

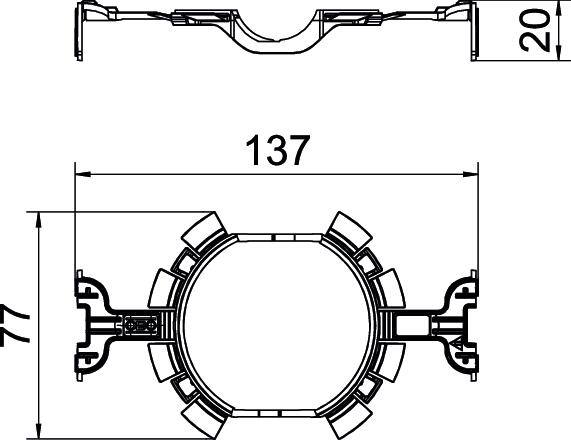

Dimension Ø60mm
Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
Halogen-free yes
Material Polypropylene
Suitable for cavity wall box no
Type of accessory Miscellaneous
All types

All types

Types Item no. Quantity SSU
ZU 60-QF 2003740
500 piece
Downloads

Download

Download

REACH Declaration of conformity ZU 60-QF / 2003740 , 0.12MB , pdf
Download
RoHS Declaration of conformity ZU 60-QF / 2003740 , 0.13MB , pdf
Download

Download

ZU 60-QF / 2003740
Download
