US 3 support FS
Item no. 6342338 | EAN 4012196224296
- Product description
-
Product description

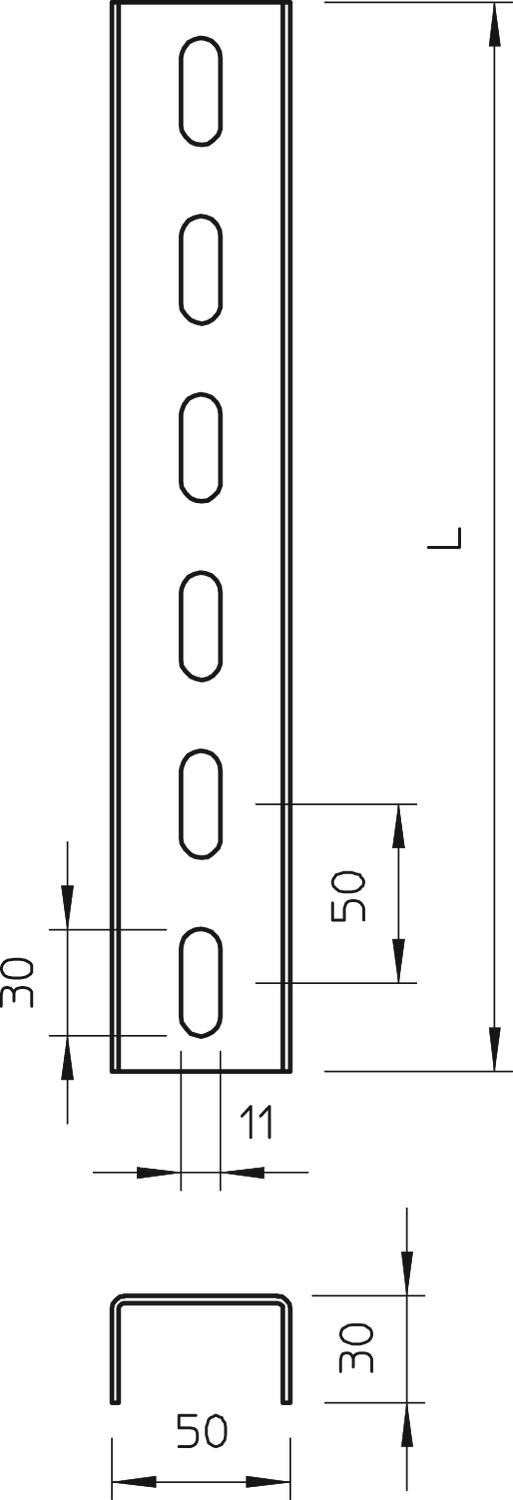

U support in fixed lengths. Dimensions 30 x 50 mm.
-
- Technical data
-
Technical data
Breakable no Dimension 30 x 50 x 2,0 Dimension 50x30x2000 Hole width 11 mm Maintain electrical functions yes Material Steel Material thickness 2 mm Profile shape U profile Slot width 30 mm Static value A 1,42 cm² Static value ly 1,52 cm Static value lz 5,72 cm Static value Wy 0,7 cm² Static value Wz 2,29 cm² Surface Strip galvanized Type of perforation 3 sides perforated Version for Single profile With toothing no Dimensions
Dimension L 2000 mm Height 30 mm Length 2000 mm Width 50 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
U support connector FT
VUS 3 FT 6018513 10 piece

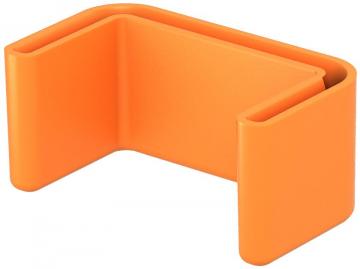

Protective cap
US 3 KS OR 6338458 20 piece
Truss-head bolt with nut and washer F
FRS 10x25 F 8.8 6407560 50 piece

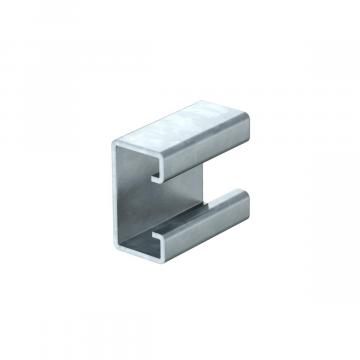

Spacer FT
DSK 25 FT 6416446 20 piece
Hexagonal bolt M10 F
SKS 10x80 F 6418250 20 piece

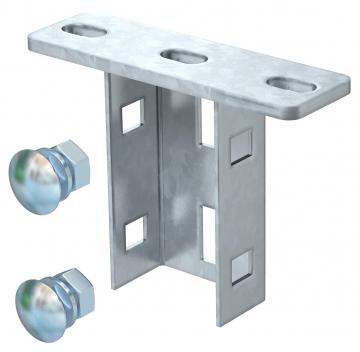

Head plate FT
KU 3 FT 6348874 1 piece - Downloads
-
