USB charging device
Item no. 6105304 | EAN 4012196594665
- Product description
-
Product description

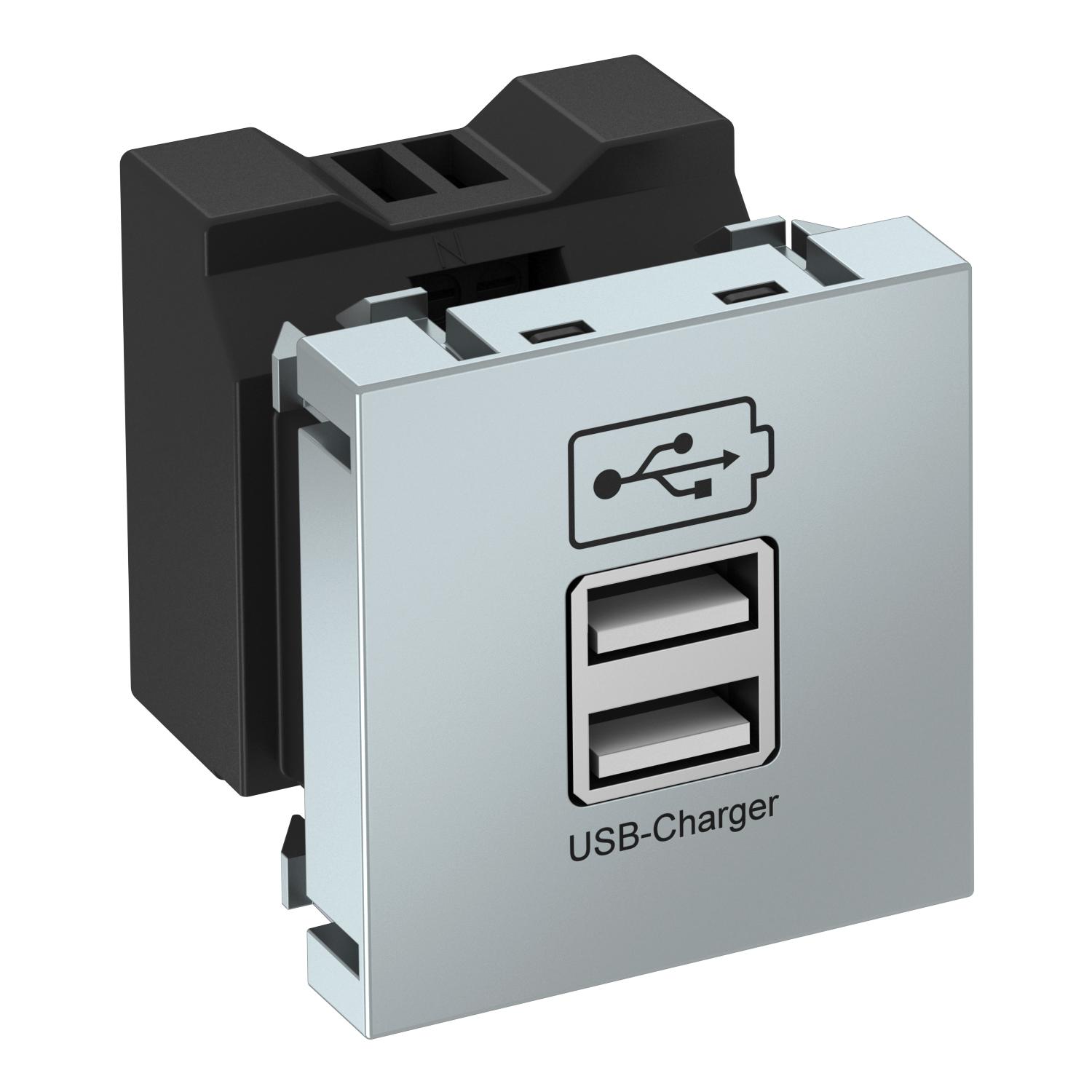

USB charging device with two USB type A sockets, for charging 1‒2 mobile devices, maximum charging current 1x 2,100 mA or 2x 1,050 mA.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
- Technical data
-
Technical data
Colour Aluminium painted Combination Basic element with central cover plate Depth 45 mm Dimension 45x45mm Fastening type Lock Halogen-free yes Hinged cover no Lamp-wire connector no Material Polycarbonate Protection rating IP20 Strain relief option no Support ring no Surface version Matt Transparent no Use USB With dust protection no With printed label no Dimensions

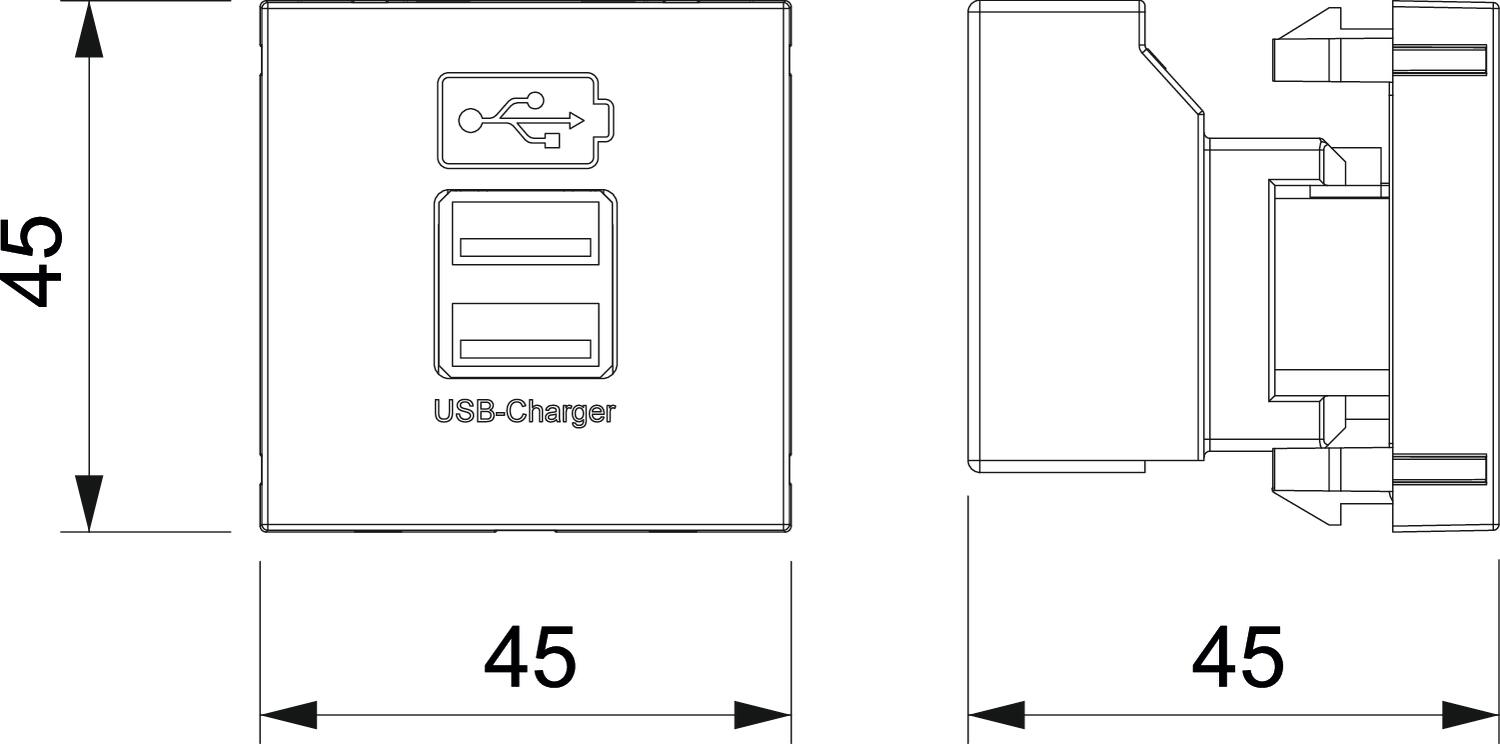

Height 45 mm Width 45 mm - All types
- Downloads
-
Data sheet MTG-2UC2.1 AL1 / 6105304 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity MTG-2UC2.1 AL1 / 6105304 , 0.13MB , pdfREACH Declaration of conformity MTG-2UC2.1 AL1 / 6105304 , 0.12MB , pdfRoHS Declaration of conformity MTG-2UC2.1 AL1 / 6105304 , 0.12MB , pdfMounting instructions Mounting instructions USB-Charger MTG-2UC1.2 , 0.10MB , pdfNo invitation to tender text is available for this product.
