- Product description
-
Product description

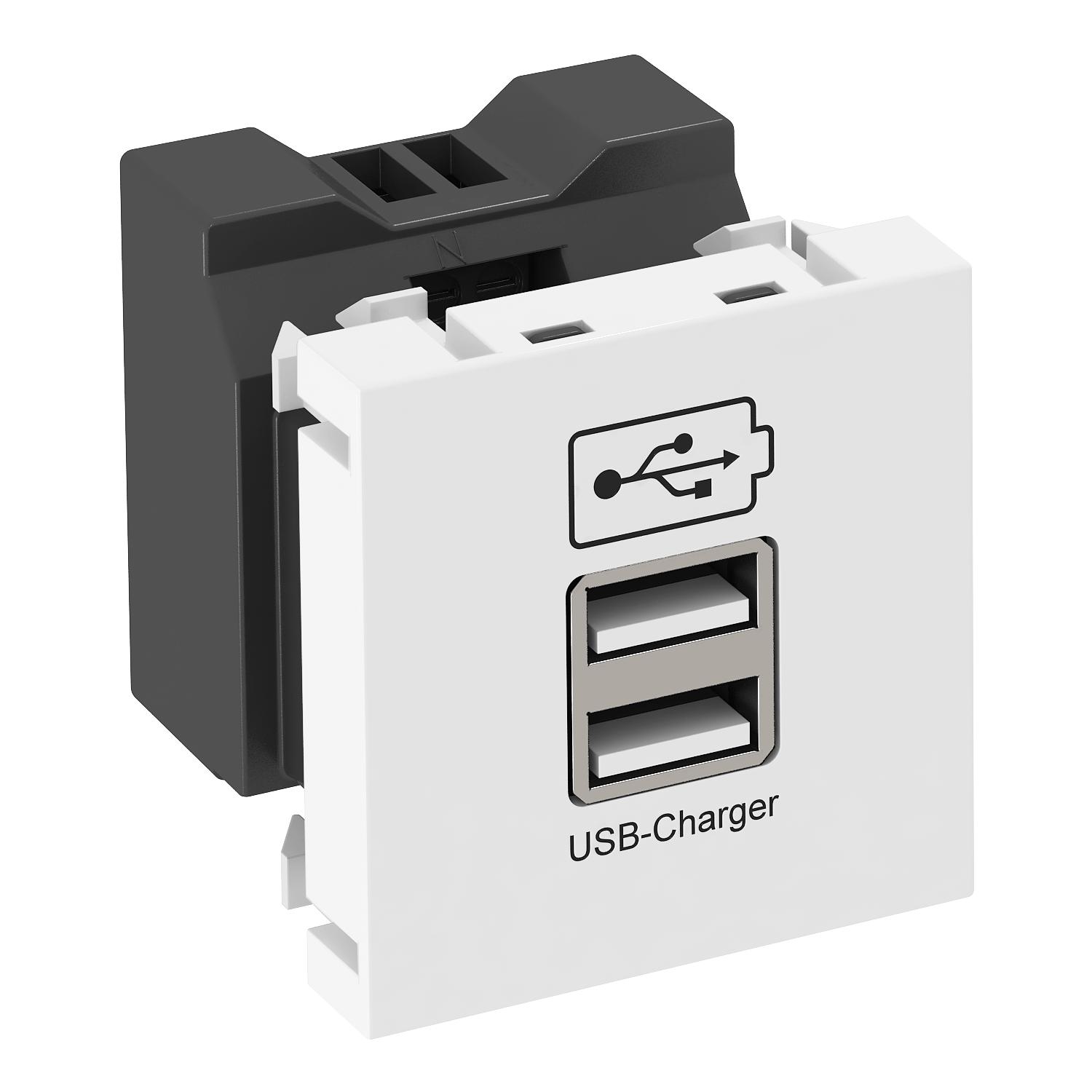

USB charging device with two USB type A sockets, for charging 1‒2 mobile devices, maximum charging current 1x 2,100 mA or 2x 1,050 mA.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
- Technical data
-
Technical data

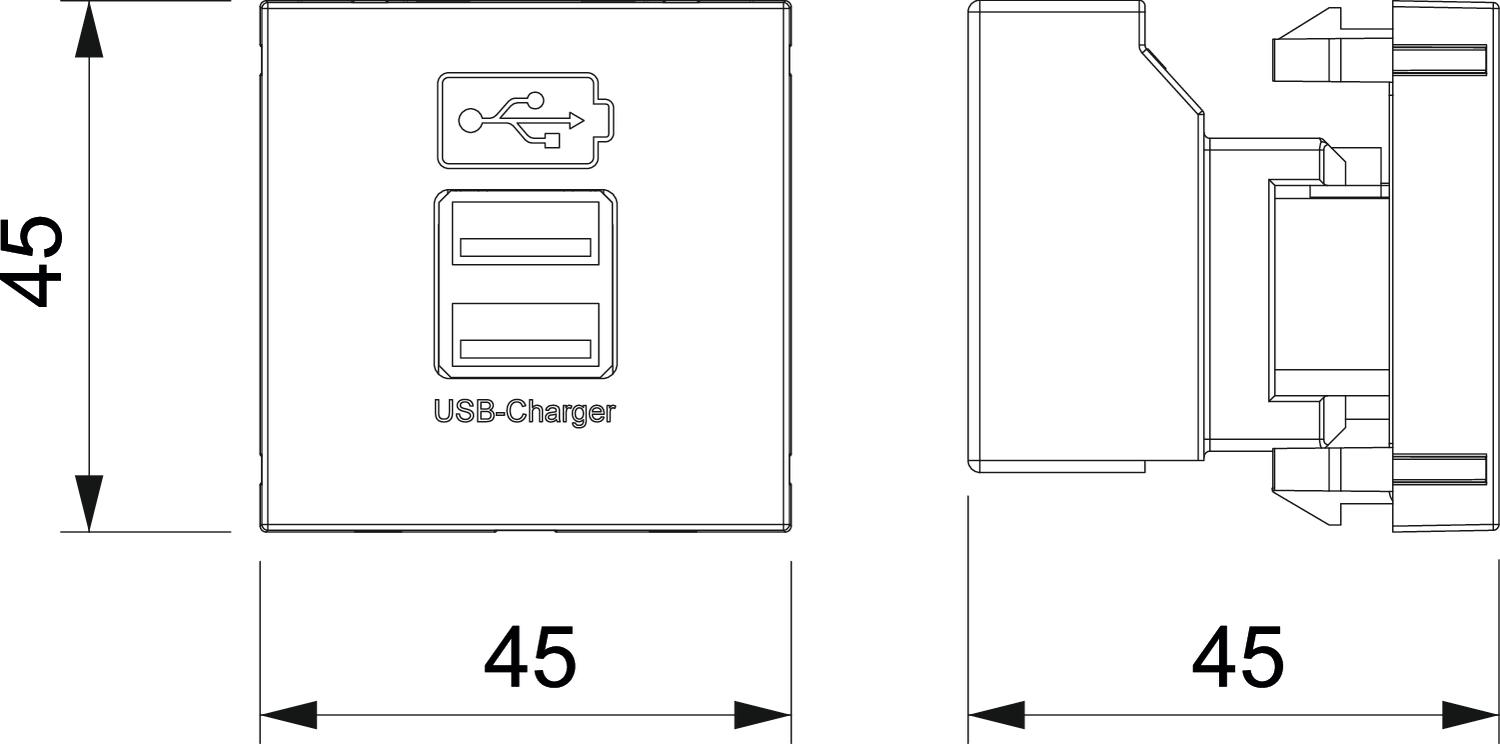

Colour Pure white; RAL 9010 Combination Basic element with central cover plate Depth 45 mm Dimension 45x45mm Fastening type Lock Halogen-free yes Height 45 mm Hinged cover no Lamp-wire connector no Material Polycarbonate Protection rating IP20 Strain relief option no Support ring no Surface version Matt Transparent no Use USB Width 45 mm With dust protection no With printed label no - All types
- Downloads
-
Data sheet MTG-2UC2.1 RW1 / 6105300 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity MTG-2UC2.1 RW1 / 6105300 , 0.19MB , pdfREACH Declaration of conformity MTG-2UC2.1 RW1 / 6105300 , 0.12MB , pdfRoHS Declaration of conformity MTG-2UC2.1 RW1 / 6105300 , 0.12MB , pdfMounting instructions Mounting instructions USB-Charger MTG-2UC1.2 , 0.10MB , pdf
