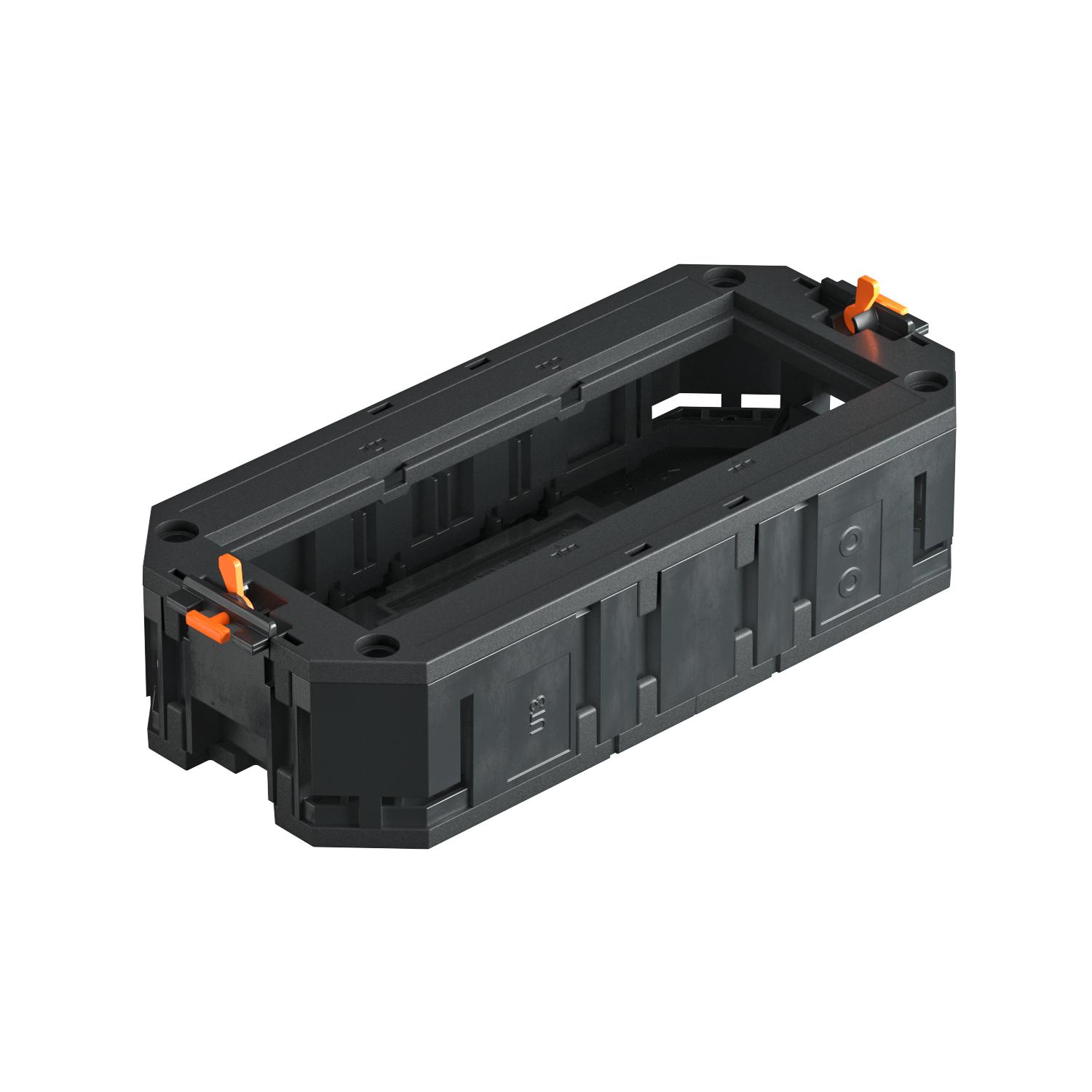

UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm
Item no. 7408723 | EAN 4012196435289
- Product description
-

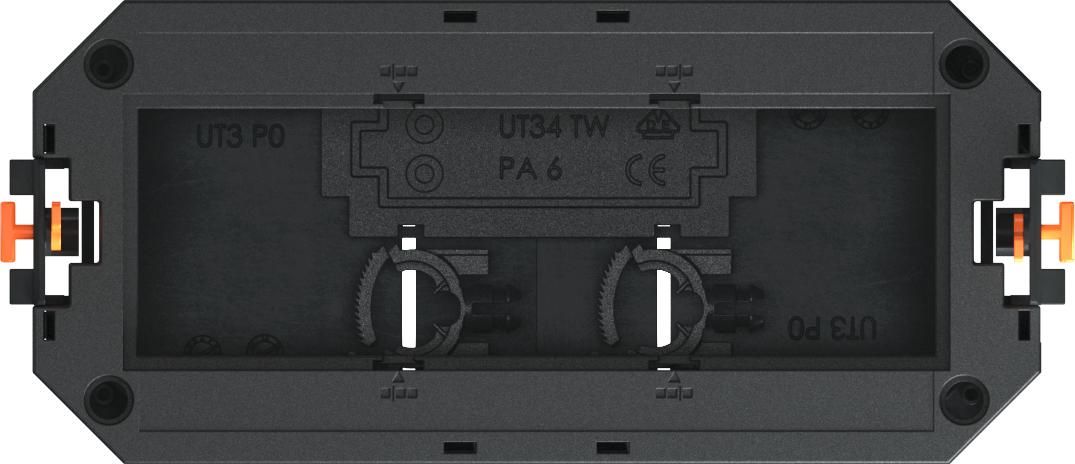

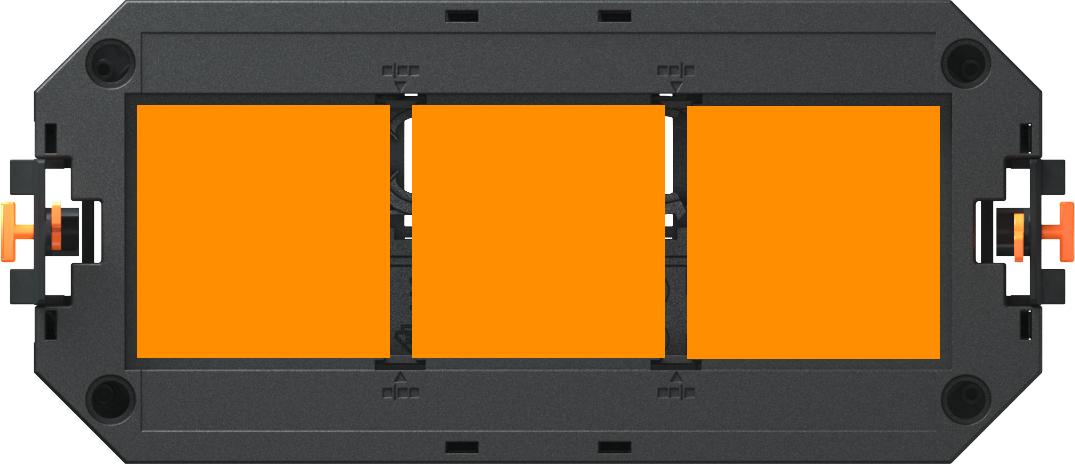

Product descriptionUniversal support with two strain reliefs, mounting bridges, partition and cover plate UT3 P3 for the installation of 3 Modul 45 devices in device installation units of the nominal sizes 2, R4, 4 and R7.
-
- Technical data
-
Technical data

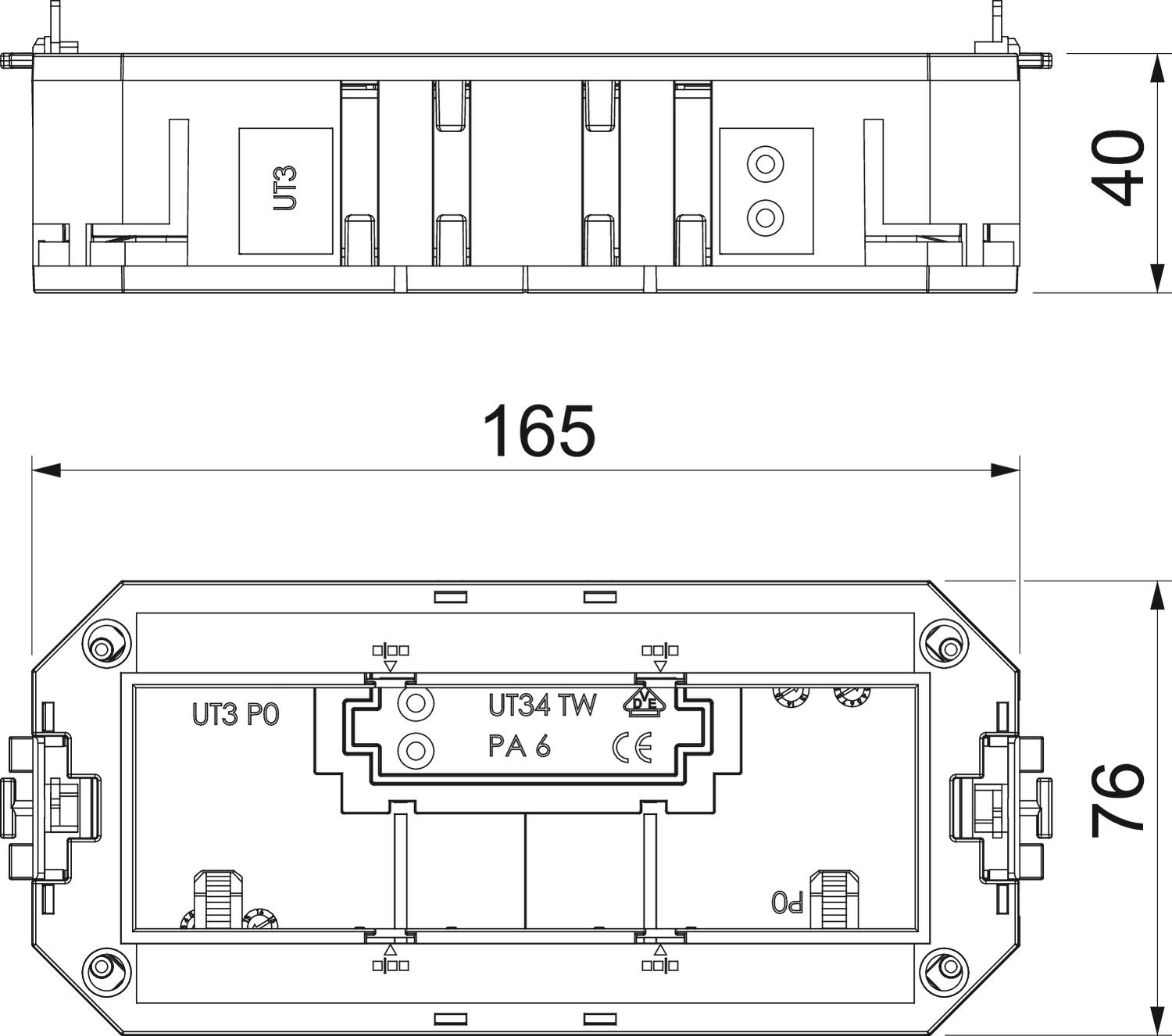

Colour Graphite black; RAL 9011 CO₂ Footprint (GWP) Cradle-to-Gate 0,551 kg CO₂e / 1 Piece Dimension 165x76x40 Height 40 mm Installation technology Grid M45 Length 165 mm Material Polyamide No. of entries 4 Number of installable devices 3 Number of strain reliefs 2 Version for Socket shape Width 76 mm - All types
- Downloads
-
Data sheet UT3 45 3 / 7408723 , 0.28MB , pdfEU declaration of conformity UT3 45 3 / 7408723 , 0.13MB , pdfREACH Declaration of conformity UT3 45 3 / 7408723 , 0.12MB , pdfRoHS Declaration of conformity UT3 45 3 / 7408723 , 0.12MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdf
