UT3 universal support, without cover plate, system length 165 mm
Item no. 7408721 | EAN 4012196435272
- Product description
-
Product description
Universal support with two strain reliefs for electrical installations in device installation units of nominal sizes 2, R4, 4, 6 and R7 in indoor areas.
Cover plates and accessories should be ordered separately.
-
- Technical data
-
Technical data
Colour Graphite black; RAL 9011 Dimension 165x76x36 Installation technology Grid M45 Material Polyamide No. of entries 4 Number of installable devices 3 Number of strain reliefs 2 Version for Socket shape Dimensions

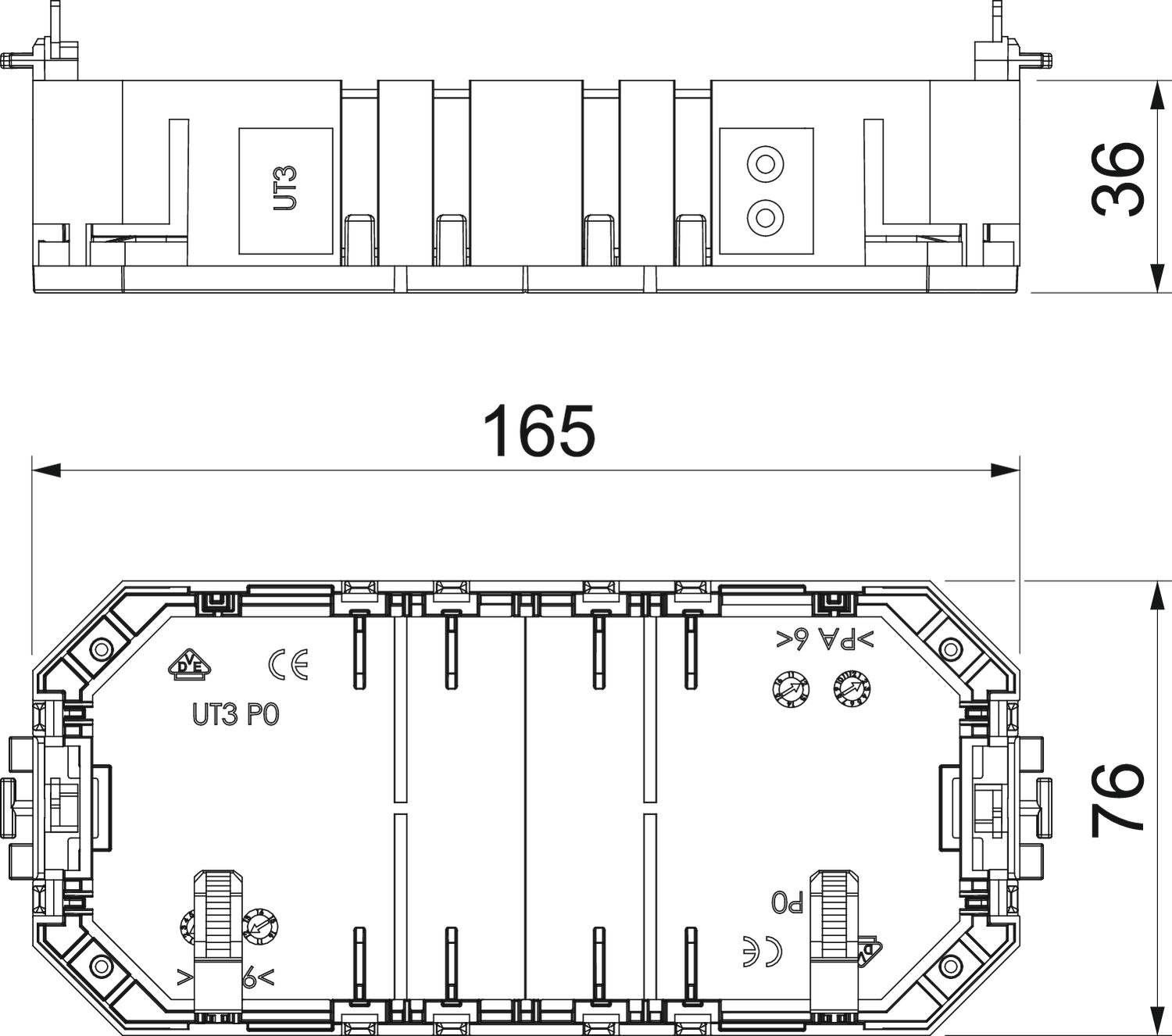

Height 36 mm Length 165 mm Width 76 mm - All types
- Downloads
-
Data sheet UT3 / 7408721 , 0.26MB , pdfDeclaration of conformity UT3 / 7408721 , 0.13MB , pdfREACH Declaration of conformity UT3 / 7408721 , 0.12MB , pdfRoHS Declaration of conformity UT3 / 7408721 , 0.12MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.16MB , pdf
