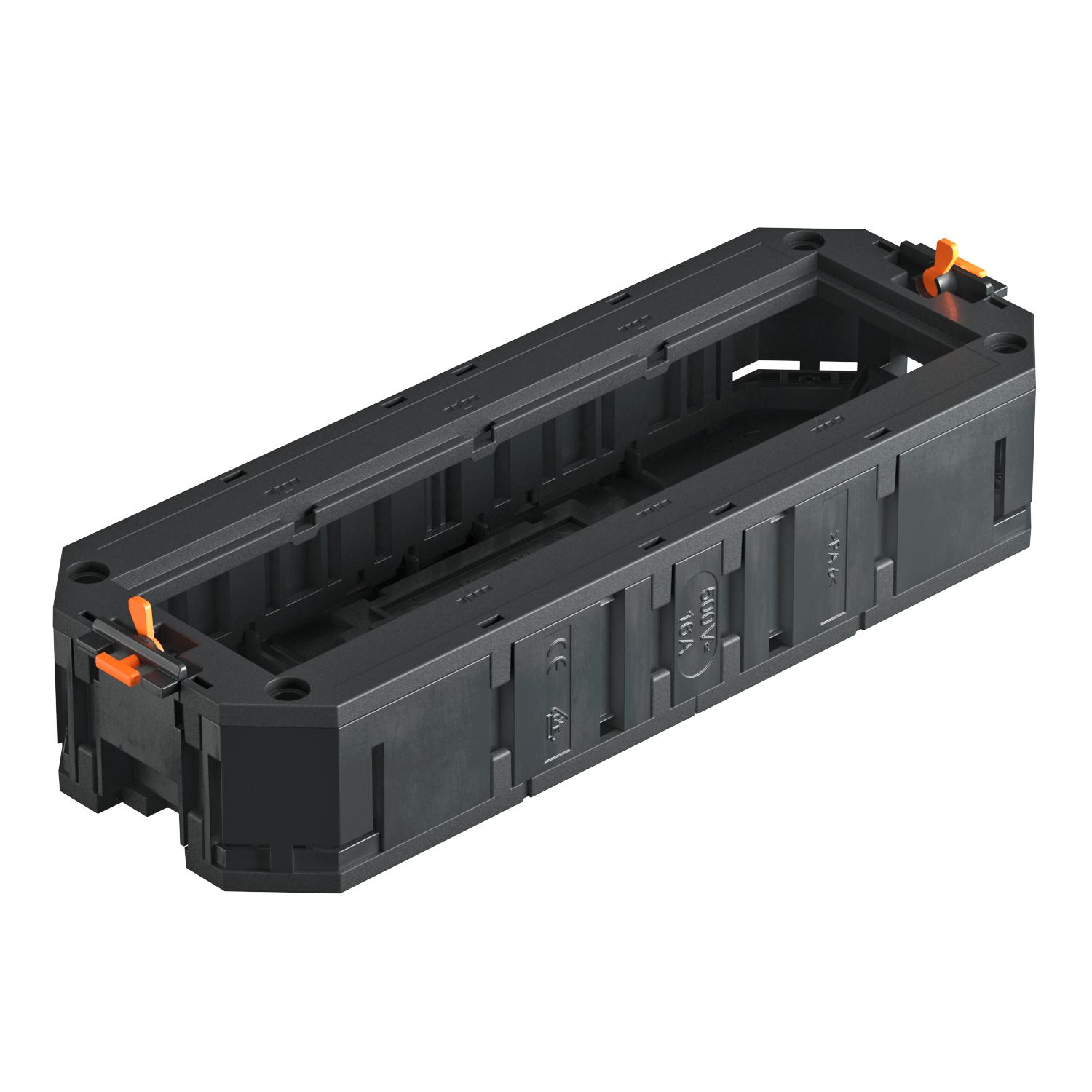

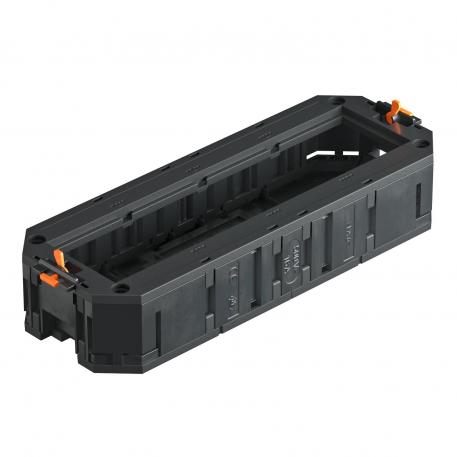

UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm

Item no. 7408727 | EAN 4012196435265

7408727 / UT4 45 4
208 mm
Product description
Product description
Universal support with two strain reliefs, mounting bridges, partition and UT4 P4 cover plate for installation of 4 Modul 45 devices in device installation units of nominal sizes R7, R9 and 9.
Universal support with two strain reliefs, partition and UT 4 P4 cover plate for installation of 4 Modul 45 devices in OKB IT device supports.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Graphite black; RAL 9011
CO₂ Footprint (GWP) Cradle-to-Gate 0,682 kg CO₂e / 1 Piece

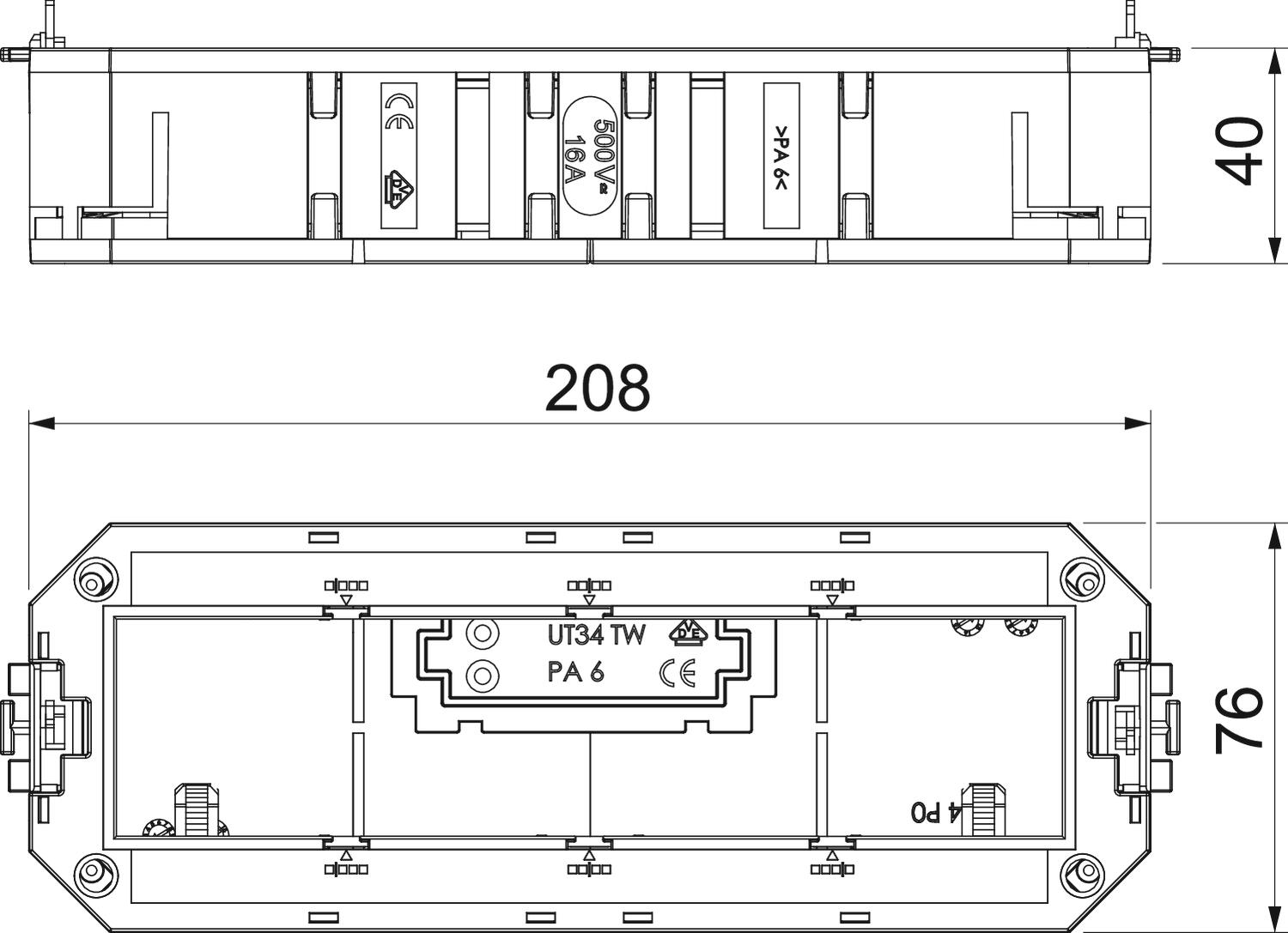

Dimension 208x76x40
Height 40 mm
Installation technology Grid M45
Length 208 mm
Material Polyamide
No. of entries 4
Number of installable devices 4
Number of strain reliefs 2
Version for Socket shape
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UT4 45 4 208 mm 7408727
5 piece
Downloads

Download

EU declaration of conformity UT4 45 4 / 7408727 , 0.13MB , pdf
Download
REACH Declaration of conformity UT4 45 4 / 7408727 , 0.27MB , pdf
RoHS Declaration of conformity UT4 45 4 / 7408727 , 0.28MB , pdf

UT4 45 4 / 7408727
Download
