UTC3 W with 2 protective contact sockets, white

Item no. 7404610 | EAN 4012196687725

7404610 / UTC3 W W2
175 mm
Product description

Product description

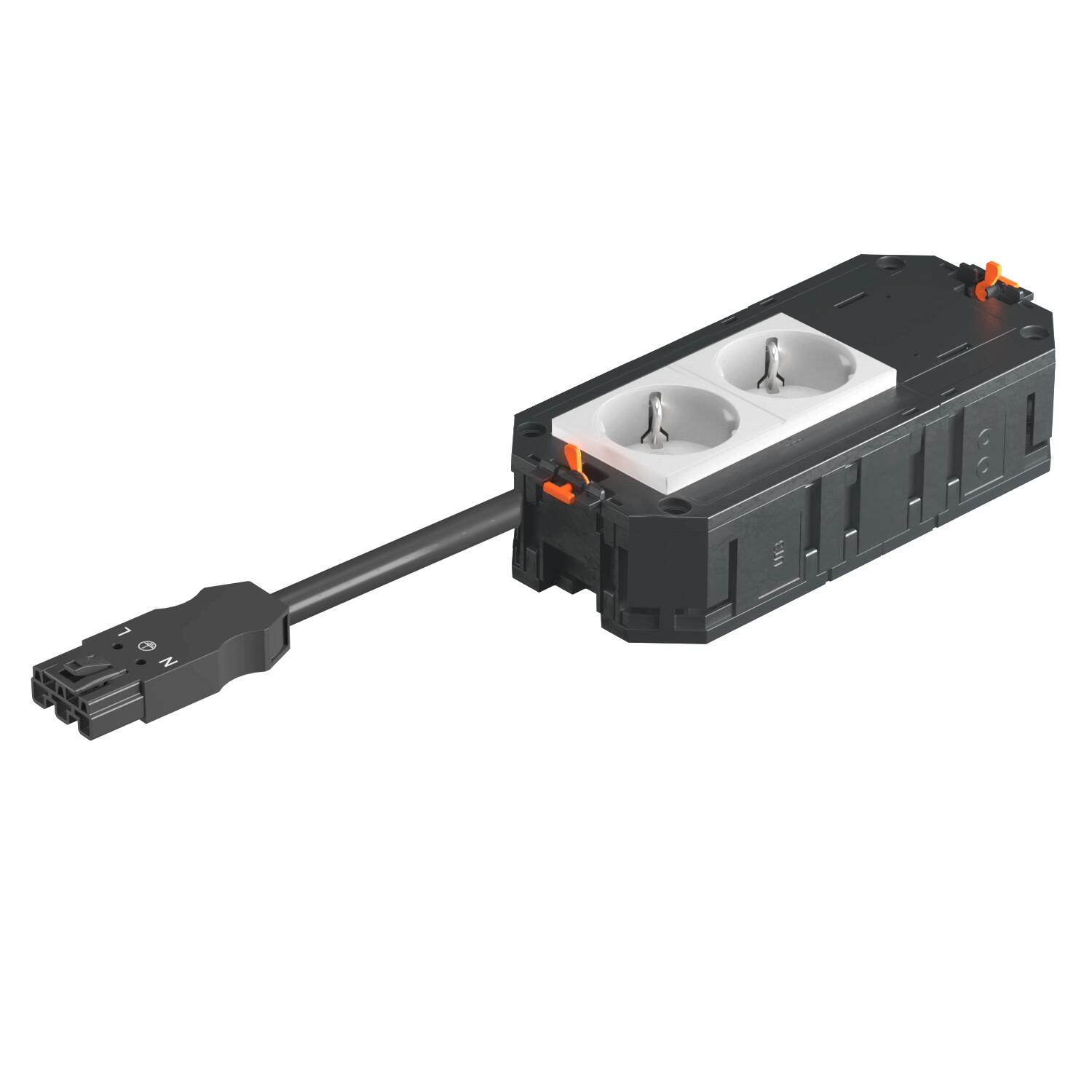

The ready-for-connection UTC3 universal support has 2 pre-installed 33° protective contact sockets in white of 16 A and one blanking cover for retroinstallation of an installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC3 universal support has 2 pre-installed 33° protective contact sockets in white with 16 A and one blanking cover for retroinstallation of an installation device of the Modul 45 or Modul 45connect series.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI
Technical data

Technical data

Cable length 300 mm
Circuit 1
Connection cable, halogen-free yes
Dimension 165x76x45
Line cross-section 2,5 mm²
Material Polyamide
Number of installable devices 3
Plug connector system, system-specific yes
Plug-in system WINSTA® MIDI
Surge protection no
Version for Double pure white

Dimensions

Height 60 mm
Length 175 mm
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC3 W W2 175 mm 7404610
1 piece
Downloads

Download

Declaration of conformity UTC3 W W2 / 7404610 , 0.17MB , pdf
Download

UTC3 W W2 / 7404610
Download
