UTC3 W with 3 protective contact sockets, white
Item no. 7404611 | EAN 4012196687732
- Product description
-
Product description

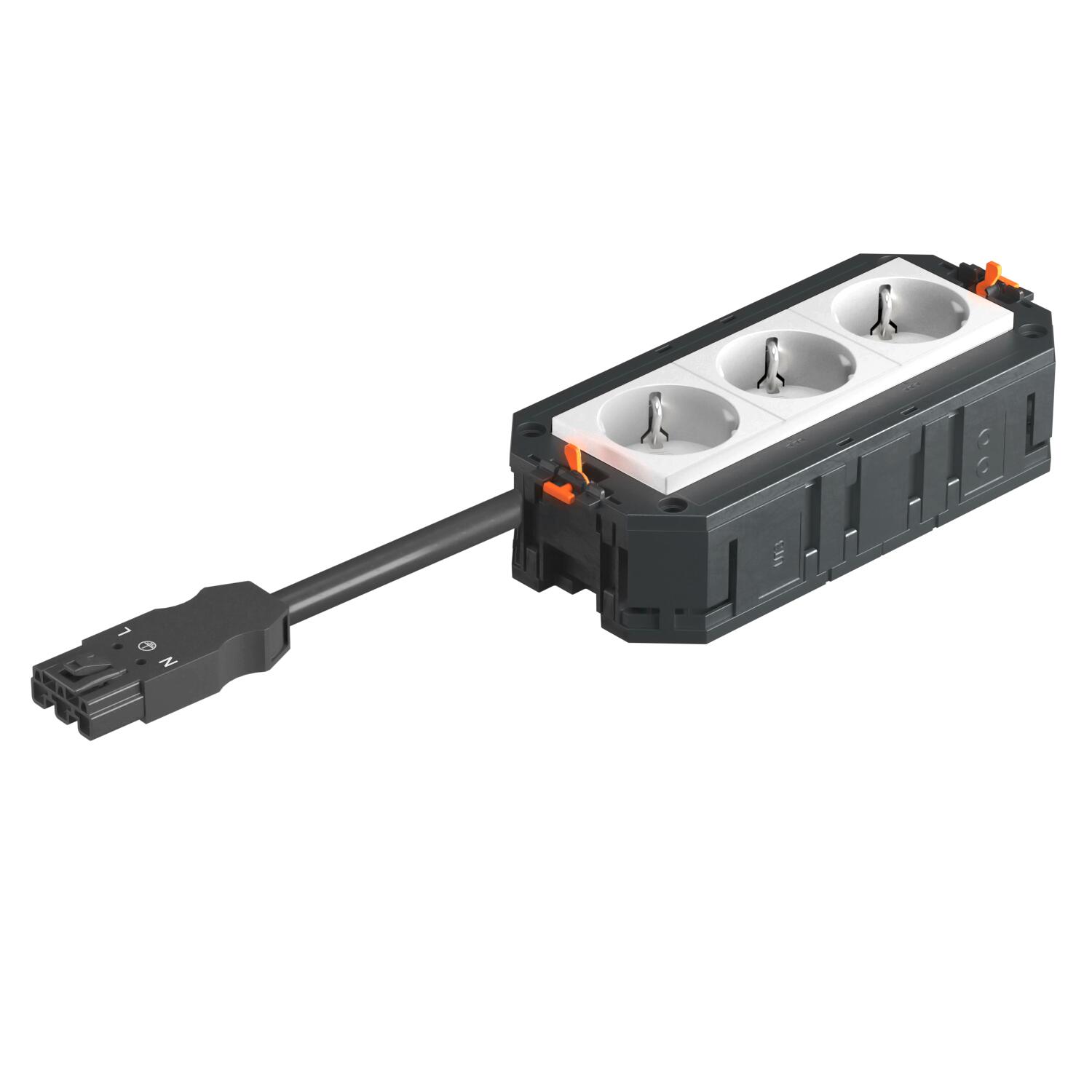

The ready-for-connection UTC3 universal support possesses 3 pre-installed 33° protective contact sockets in white of 16 A. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC3 universal support has 3 pre-installed 33° protective contact sockets in white with 16 A.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI
- Technical data
-
Technical data
Cable length 300 mm Circuit 1 Connection cable, halogen-free yes Dimension 165x76x45 Line cross-section 2,5 mm² Material Polyamide Number of installable devices 3 Plug connector system, system-specific yes Plug-in system WINSTA® MIDI Surge protection no Version for Triple pure white Dimensions

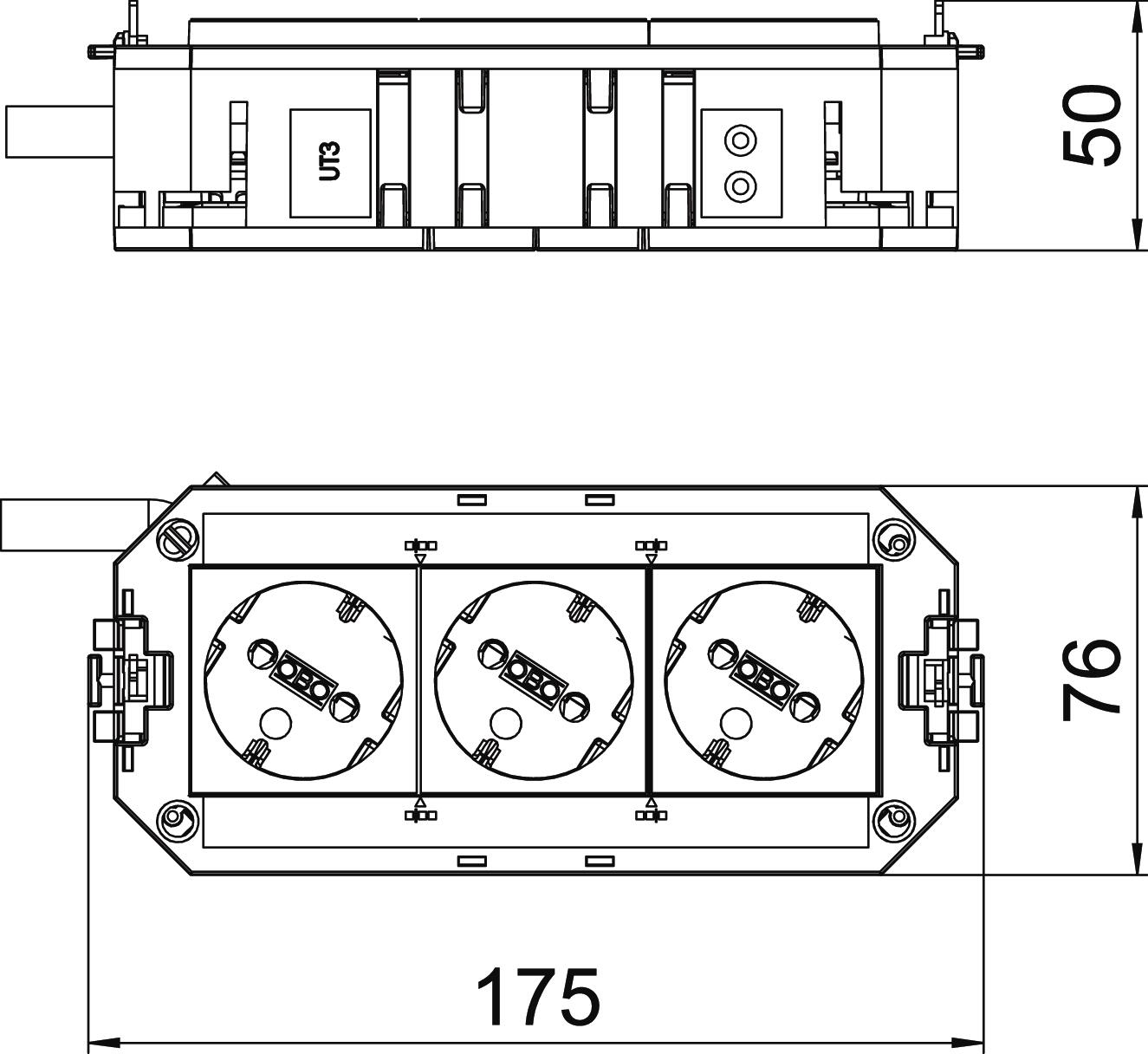

Height 60 mm Length 175 mm Width 76 mm - All types
- Downloads
-
Data sheet UTC3 W W3 / 7404611 , 0.20MB , pdfDeclaration of conformity UTC3 W W3 / 7404611 , 0.17MB , pdf
