UTC3 with 2+1 protective contact sockets

Item no. 7404660 | EAN 4012196557516

7404660 / UTC3 G W2OR1

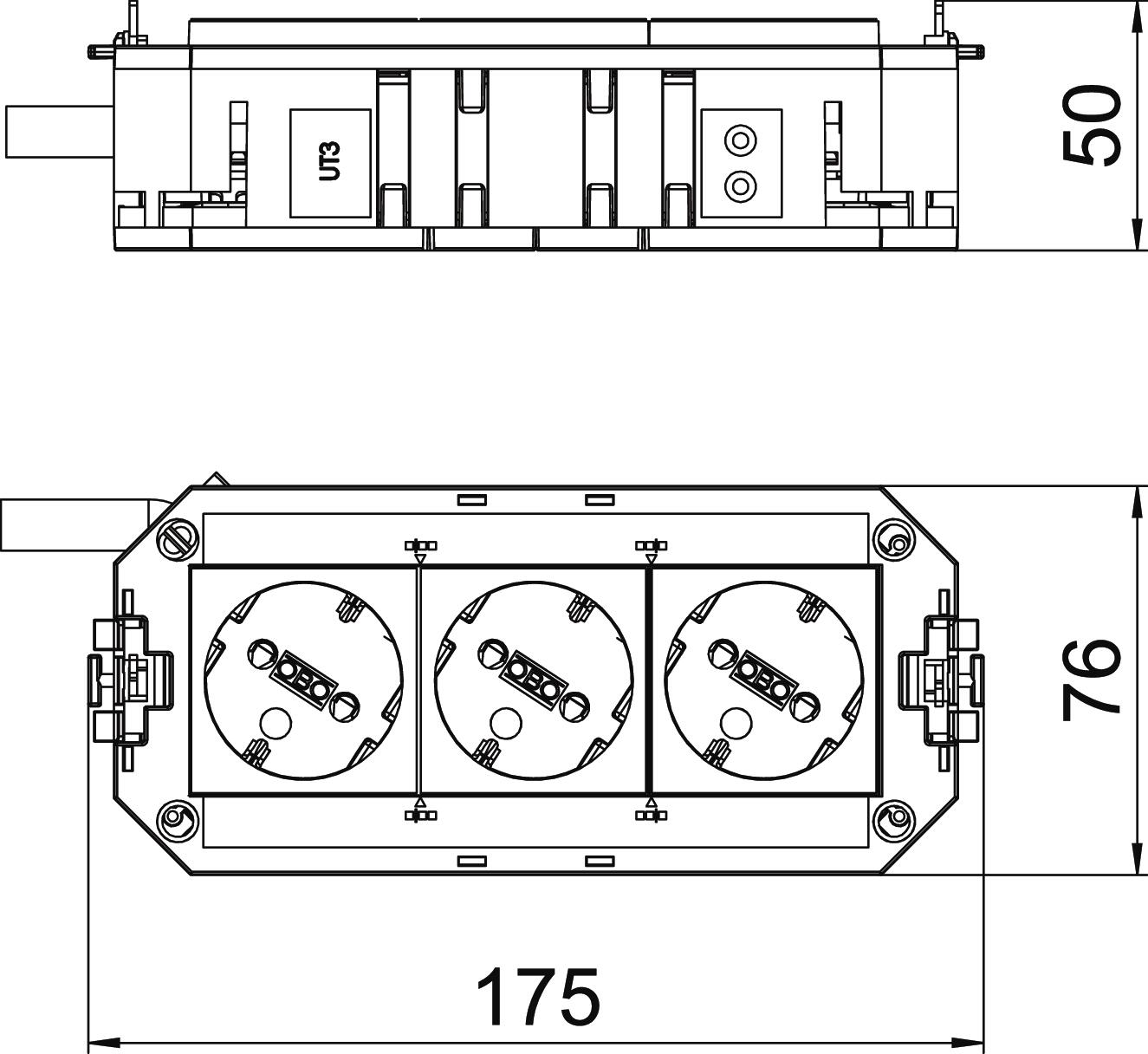

175 mm
Product description
Product description

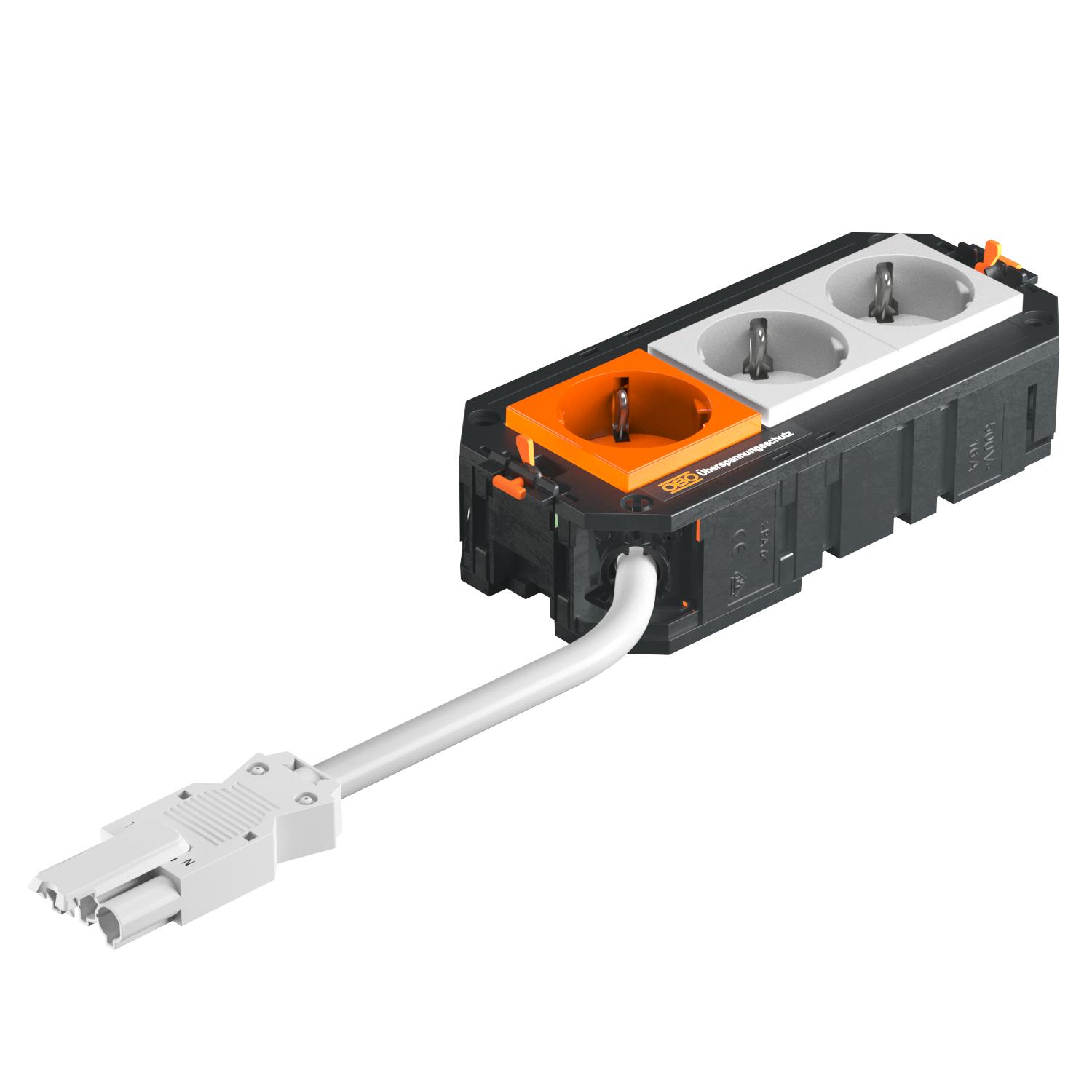

Ready-for-connection UTC3 universal support with halogen-free connection cable. It possesses two pre-installed 33° protective contact sockets in white and one pre-installed 33° protective contact socket in orange of 16 A. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable length 300 mm
Circuit 2
Dimension 165x76x45
Height 60 mm
Length 175 mm
Length of the supply cable 0,3 m
Line cross-section 2,5 mm²
Number of connections 2
Number of installable devices 3
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Single and double
Surge protection no
Version for Double pure white/single pure orange
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC3 G W2OR1 175 mm 7404660
10 piece
