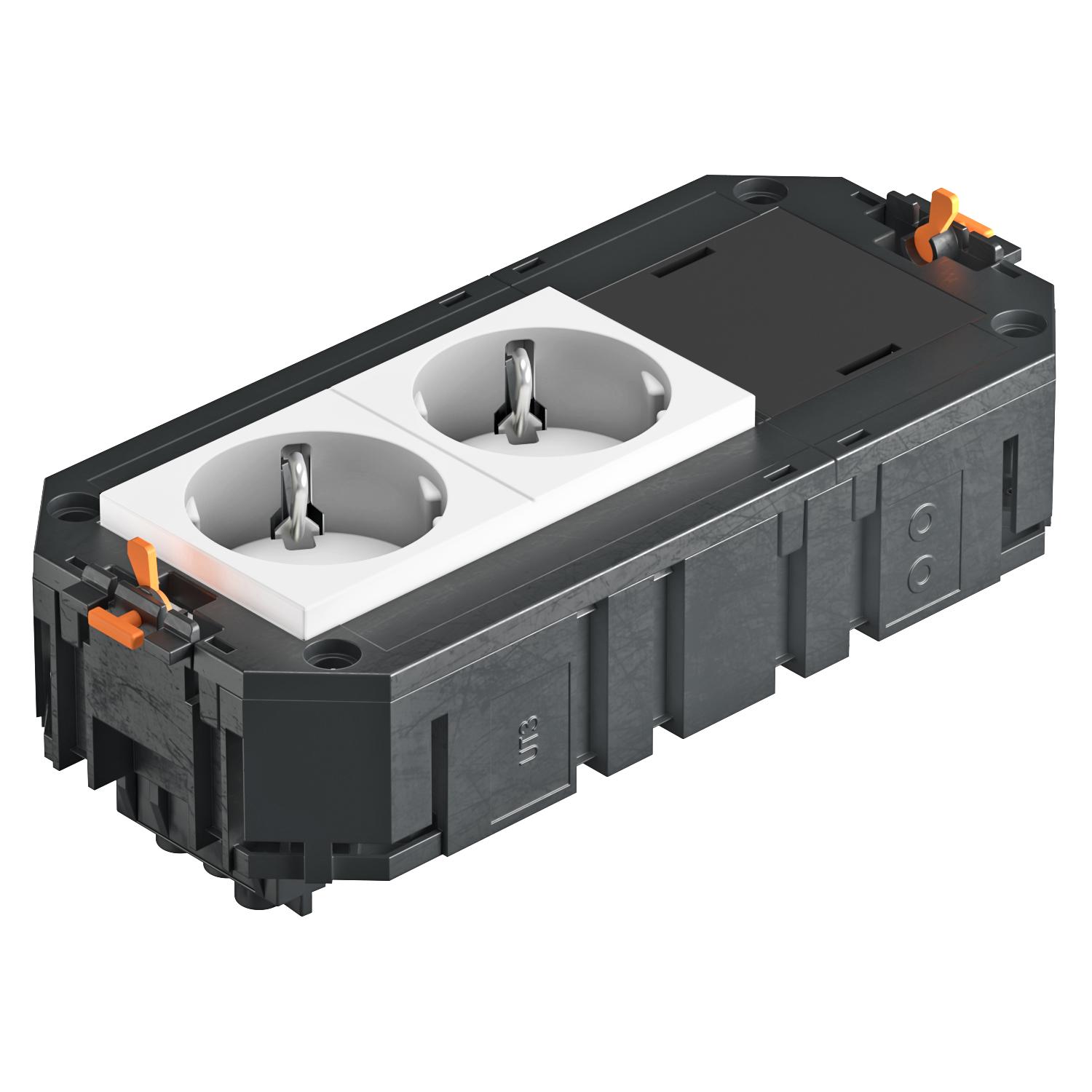

UTC3 with 2 protective contact sockets

Item no. 7404662 | EAN 4012196557523

7404662 / UTC3 G W2
175 mm
Product description
Product description
The ready-for-connection UTC3 universal support possesses two pre-installed 33° protective contact sockets and one blanking cover for retroinstallation of one installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size 2, 4, R4, 6 and R7.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Circuit 1
Connection cable, halogen-free no

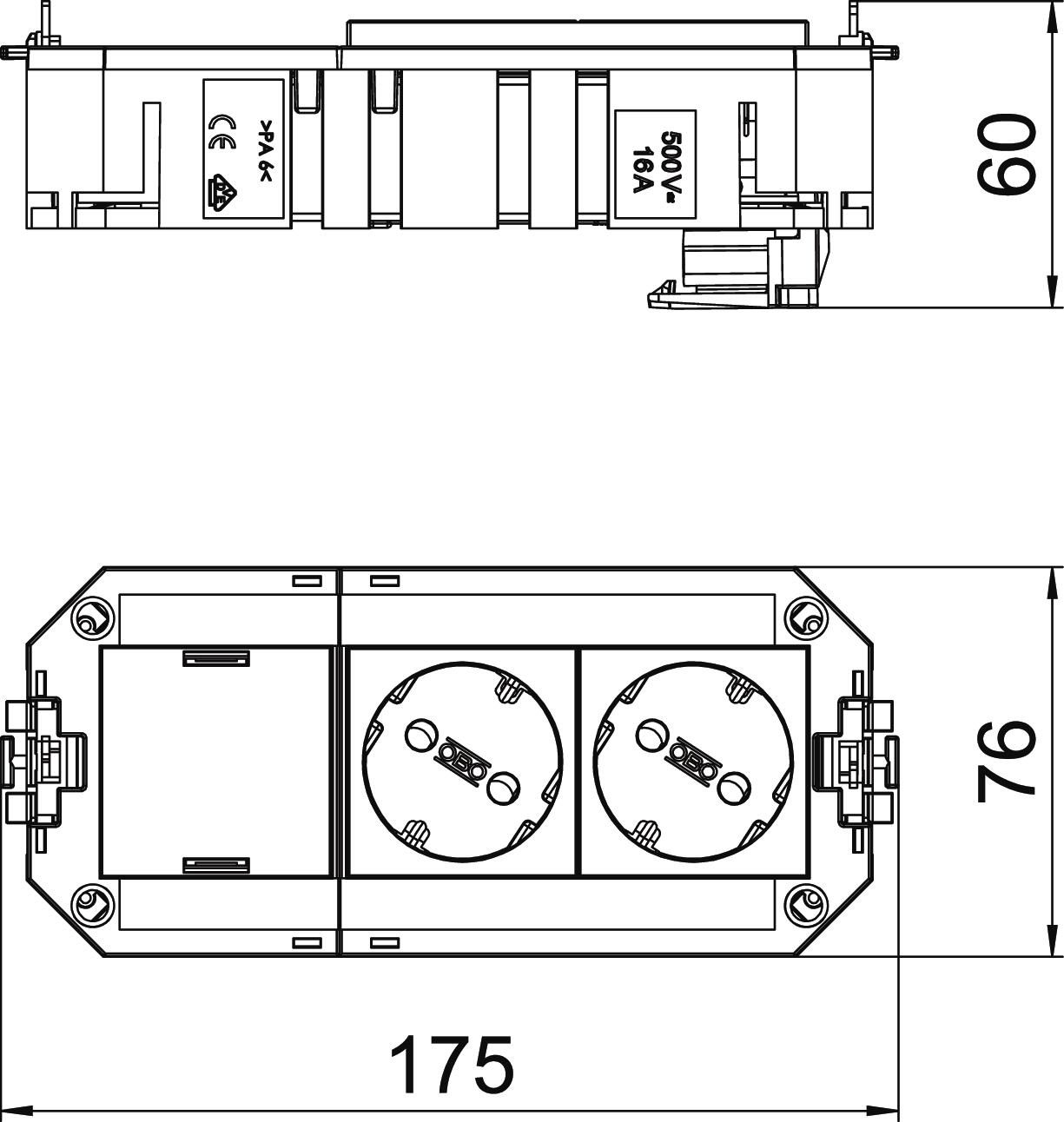

Dimension 165x76x45
Height 60 mm
Length 175 mm
Line cross-section 2,5 mm²
Number of connections 1
Number of installable devices 3
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Double
Surge protection no
Version for Double pure white
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC3 G W2 175 mm 7404662
4 piece
