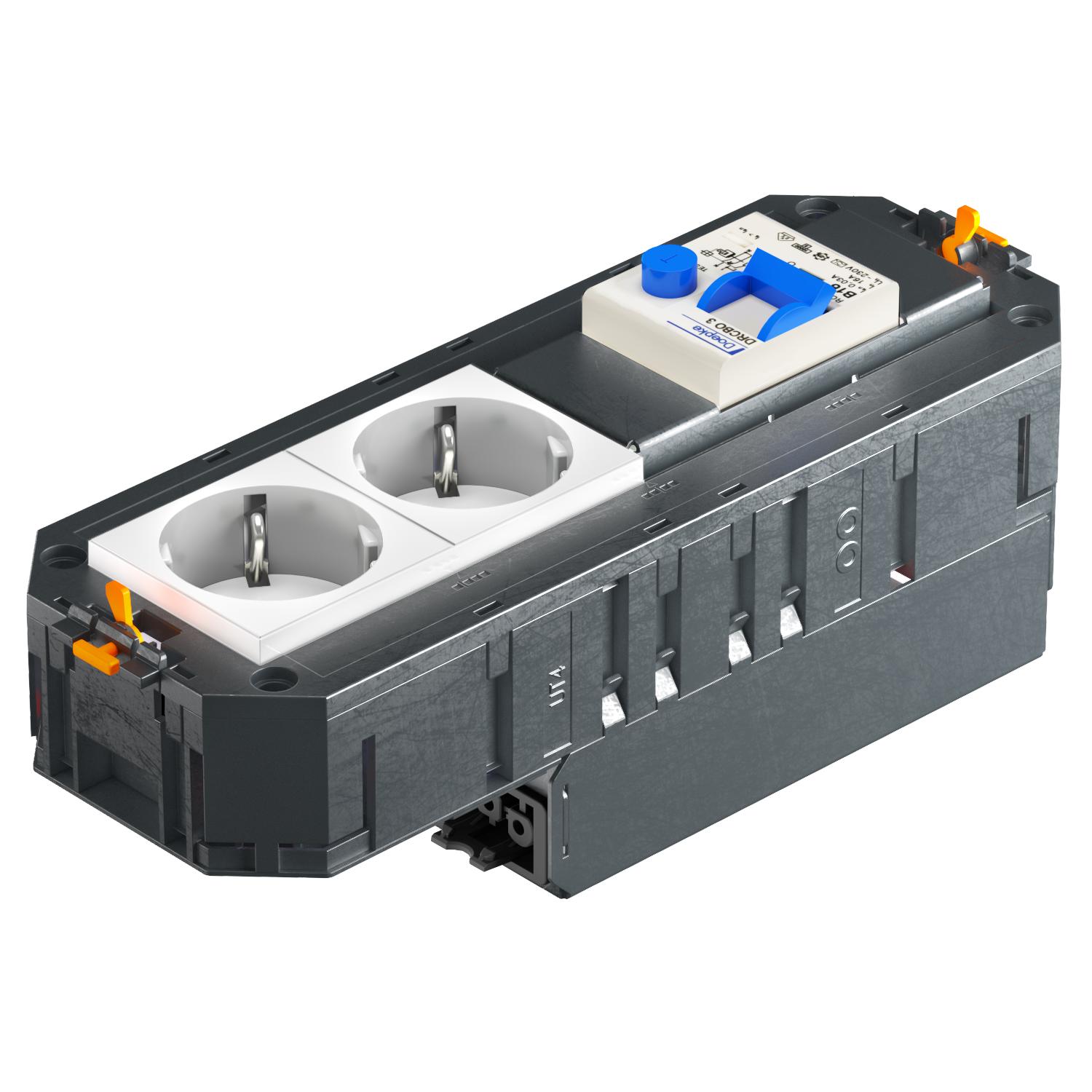

UTC4 FI with 2 protective contact sockets and FI/LS

Item no. 7404692 | EAN 4012196690619

218 mm
Product description

Product description

Ready-for-connection universal support Connect UTC4 for decentralised protection, equipped with FI/LS and sockets. With WIELAND plug connector system GST 18. Suitable for VL connection cables and for use in device installation units of nominal sizes R7, 9 and R9.
The ready-for-connection UTC4 FI universal support has 2 protective contact sockets protected with FI/LS. Internal wiring with 2.5 mm². Please note the connection requirements (and also the selectivity).

Input side: Self-locking plug connector, 3-pin, type Wieland GST18 (connector)
Output side: Self-locking plug connector, 3-pin, type Wieland GST18 (socket)

Technical features FI/LS 1P+N:
Rated current AC 16 A
Measured voltage 230 V
Tripping characteristic B
Residual current type A (pulse and alternating current sensitive)
Sensitivity 30 mA
Nominal arresting capacity 10 kA
Technical data

Technical data

Accessory mounting type Lock
Circuit 1

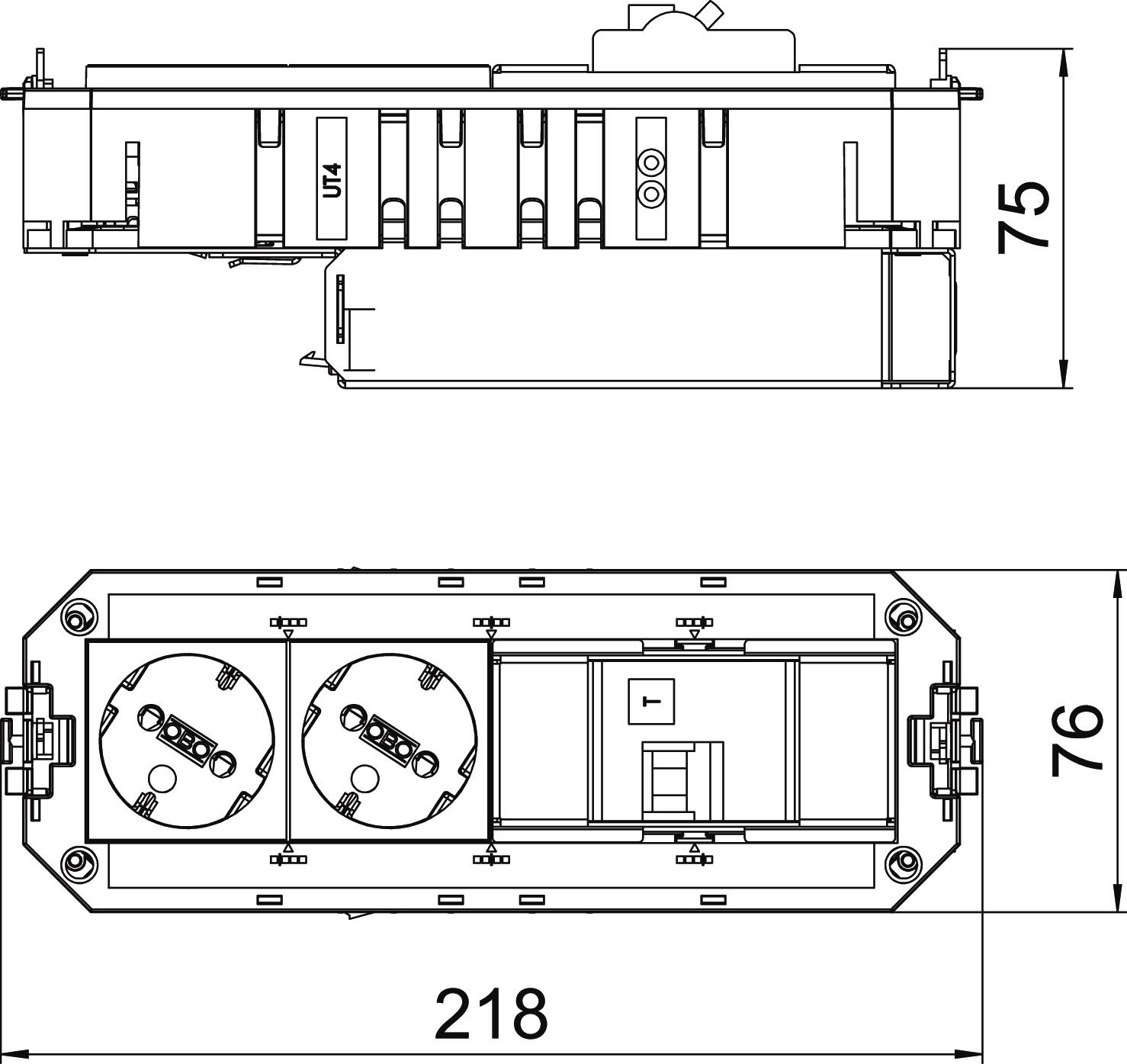

Dimension 208x45x85
Height 85 mm
Installation technology Grid M45
Length 218 mm
Line cross-section 2,5 mm²
Material Polyamide
Number of cable entries 2
Number of connections 1
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Double
Surge protection no
Version for FI/LS/double pure white
Version for Socket shape
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 FI G WS2 218 mm 7404692
1 piece
UTC4 FI G OR2 218 mm 7404694
1 piece
