UTC4 W with 2+1 protective contact sockets

Item no. 7404623 | EAN 4012196687831

7404623 / UTC4 W OR2GN1
218 mm
Product description
Product description

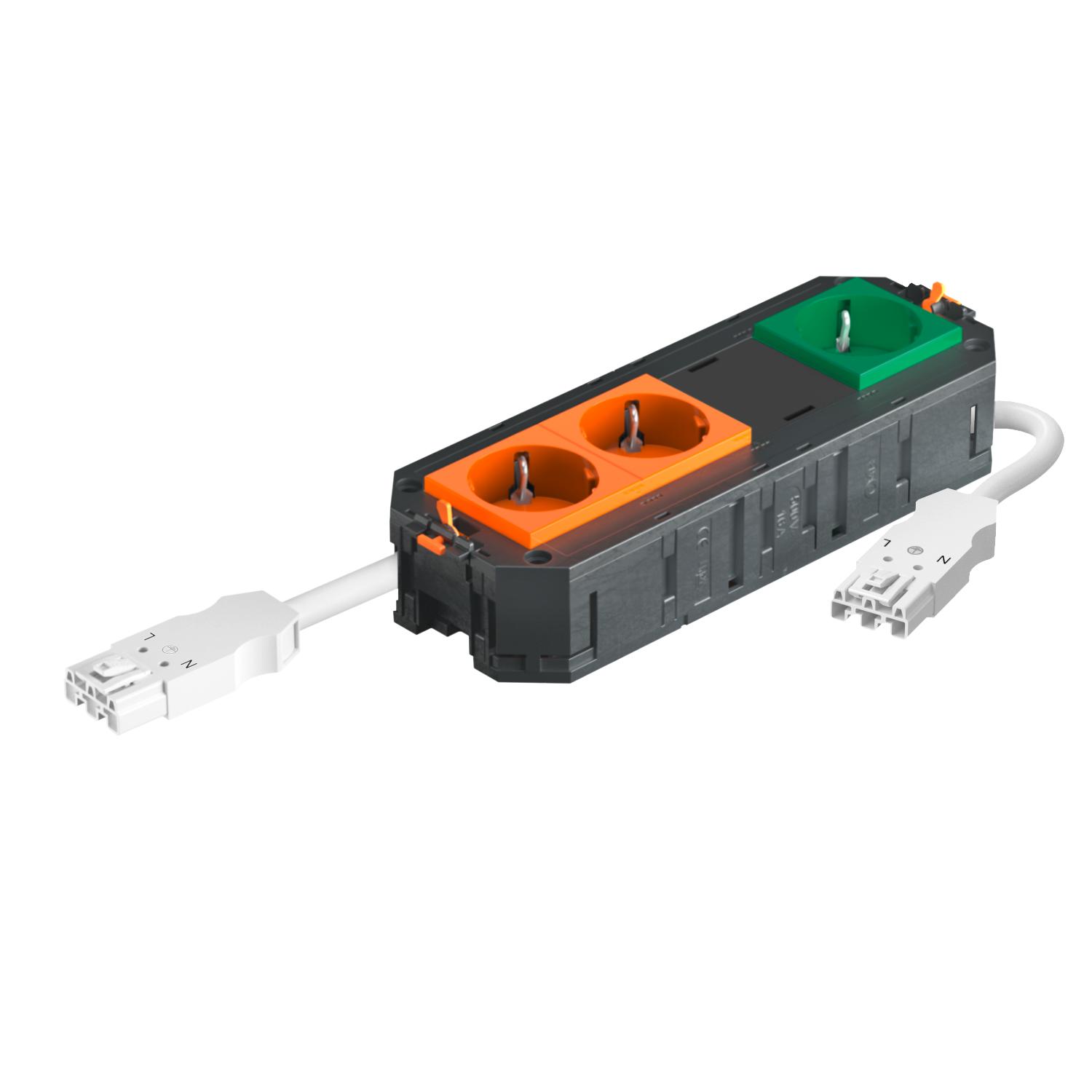

The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets in orange and one pre-installed 33° protective contact socket in mint green and one blanking cover for retroinstallation of an installation device of the Modul 45 or Modul 45connect series, 250 V~, 16 A.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets in orange and one pre-installed 33° protective contact socket in mint green and one blanking cover for retroinstallation of an installation device of the Modul 45 or Modul 45connect series, 250 V~ 16 A.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI
Technical data

Technical data

Cable length 300 mm
Circuit 2
Connection cable, halogen-free yes

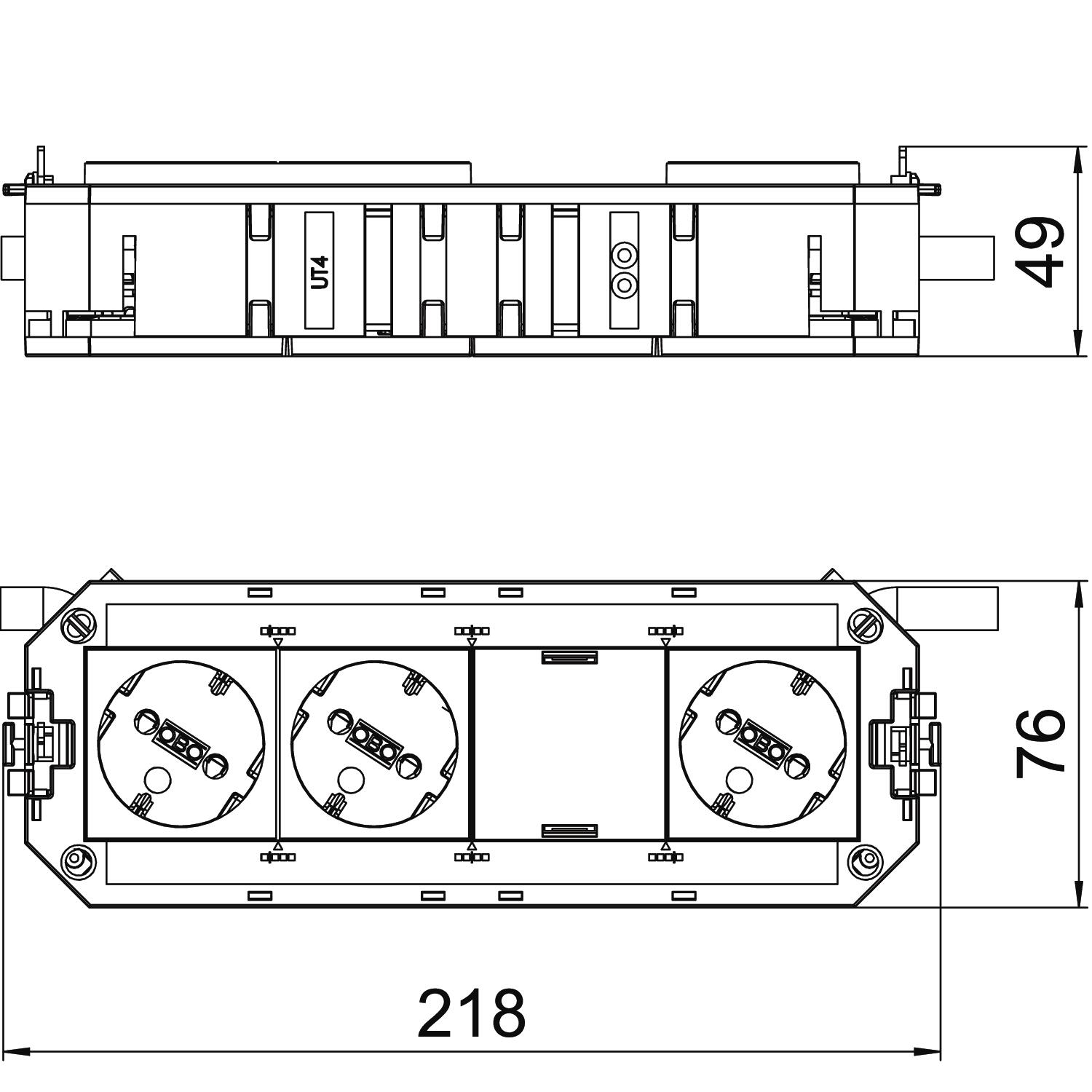

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Material Polyamide
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system WINSTA® MIDI
Surge protection no
Version for Double pure orange/single mint green
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 W OR2GN1 218 mm 7404623
10 piece
