UTC4 W with 2+2 protective contact sockets, 2 sockets with surge protection

Item no. 7404617 | EAN 4012196687787

7404617 / UTC4 W W2OR2 Ü
218 mm
Product description
Product description

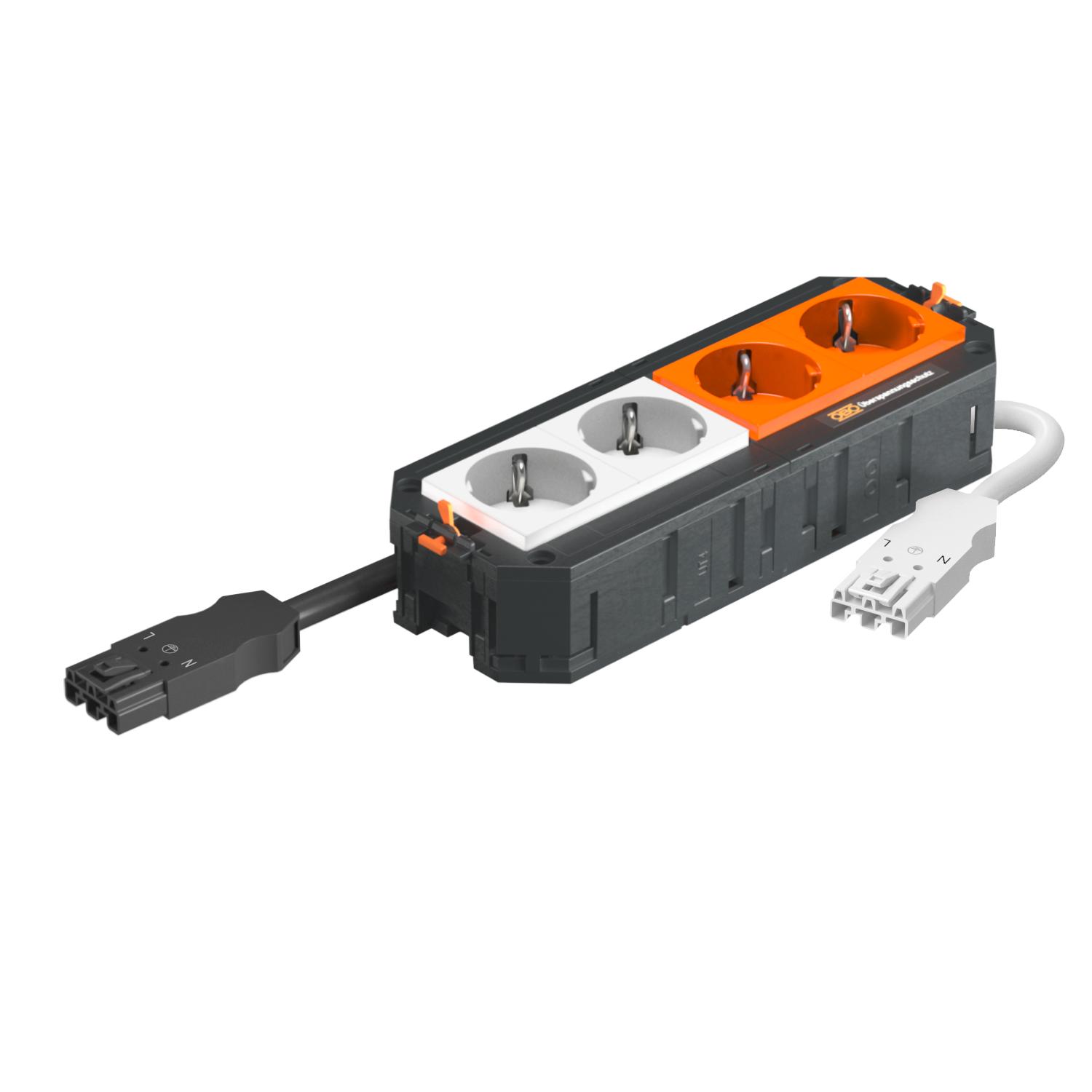

The ready-for-connection UTC4 universal support possesses 2 pre-installed 33° protective contact sockets in white and 2 pre-installed 33° protective contact sockets in orange (with surge protection module, type 3, according to DIN EN 61643-11), 250 V~, 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support possesses 2 pre-installed 33° protective contact sockets in white and 2 pre-installed 33° protective contact sockets in orange (with surge protection module, type 3, according to DIN EN 61643-11), 250 V~, 16 A.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
Technical data

Technical data

Cable length 300 mm
Circuit 2
Connection cable, halogen-free yes

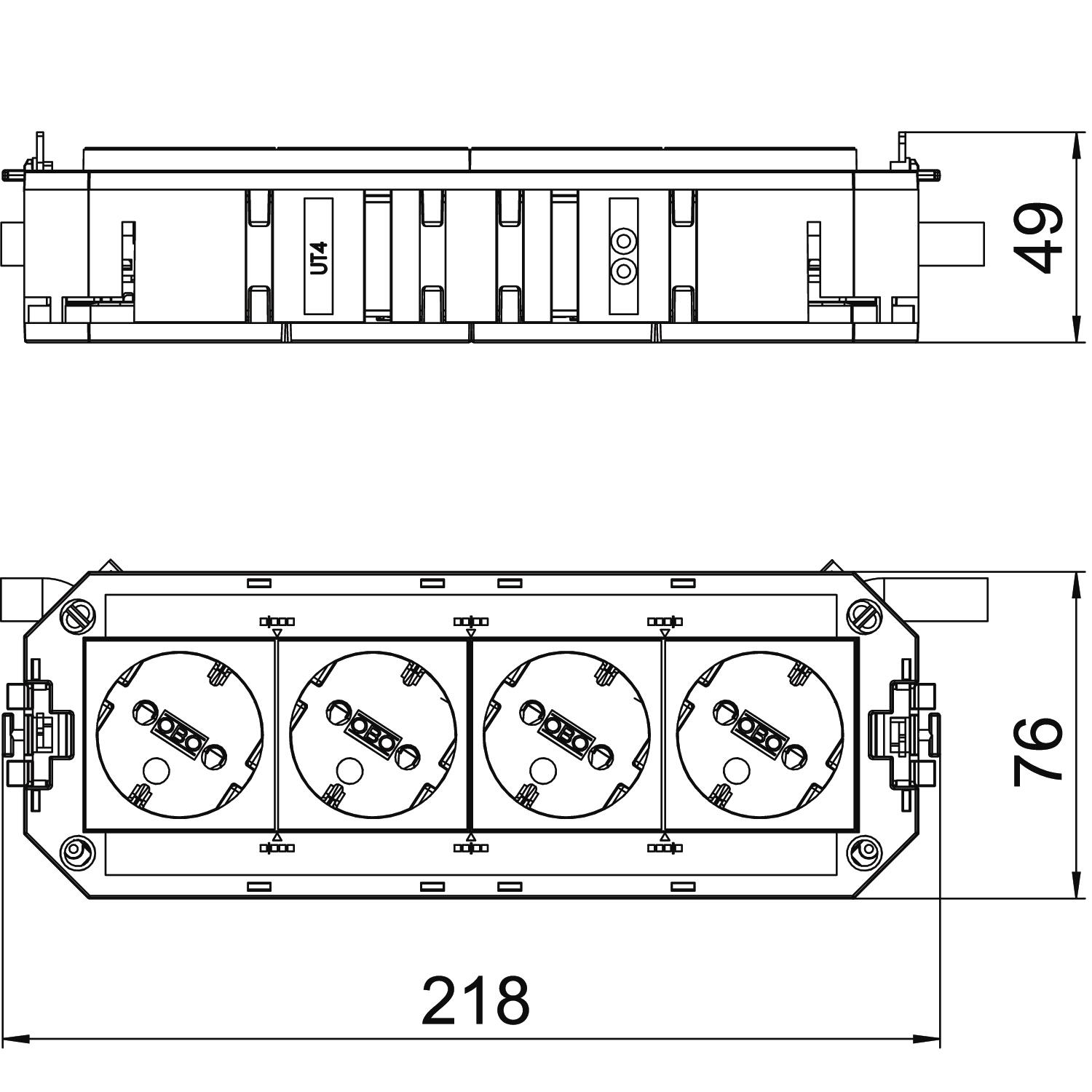

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Material Polyamide
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system WINSTA® MIDI
Surge protection yes
Version for Double pure white/double pure orange
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 W W2OR2 Ü 218 mm 7404617
10 piece
